PROMISE VessJBOD 1000 Series
Dual SAS-to-SAS/SATA 3Gb/s Storage Enclosure

PROMISE Products VessJBOD 1000

VessJBOD 1000 Series

VessJBOD 1830 2U/12-bay SAS-to-SAS/SATA 3Gb/s Expansion Chassis, Redundant PSU, with 8 x 2TB SATA Drives (16 TB)

#VJ1830NAC1C
Our Price: $5,878.00

VessJBOD 1840 3U/16-bay SAS-to-SAS/SATA 3Gb/s Expansion Chassis, Redundant PSU, with 8 x 2TB SATA Drives (16 TB)

#VJ1840NAC1C
Our Price: $6,298.00

Click here to jump to more pricing!

Overview:

The VessJBOD 1000 series features 2U/3U 12 and 16 bays dual ports SAS-to-SAS/SATA expansion enclosure. To increase capacity in the same storage node, user can direct attach the enclosure to the VessRAID subsystem or connect to external RAID controller installed on the server like FastTrak or SuperTrak series for easy expansion.

System Highlights and Benefits

16/12 hot-swappable drive bays in a robust 3U/2U chassis
Supports Serial Attached SCSI (SAS) and SATA drives
Single SAS JBOD I/O module
Single or Dual hot-swap redundant power supply unit with 80PLUS Certified
SES-2 compliant enclosure management
Fully compatible with PROMISE HBAs and RAID subsystems
Wake-on-SAS support (WOS)

SAS/SATA Expansion
VessJBOD 1840
	3U/16-bay Expansion Chassis expansion chassis with (8) 2TB SATA Drives Single SAS I/0 ports SAS/SATA drive support Advanced power saving modes Dual power supplies
VessJBOD 1830
	2U/12-bay Expansion Chassis expansion chassis with (8) 2TB SATA Drives Single SAS I/0 ports SAS/SATA drive support Advanced power saving modes Dual power supplies

Features:

Amazing Lightweight and Compact Architecture
Innovative enclosure design makes the VessJBOD easy to lift and install into rackmount housings, especially for SMBs who are short of space. As IT data centers face pressing challenges with the obvious growth of digital information, demanding storage requirements come with more cooling and floor space. Making an efficient layout deployment is not just reducing square footage in an electrical or computer room, but also saving money from your IT budget.

When a JBOD is not just a JBOD
When a VessRAID can wake up a connected secondary VessJBOD enclosure through Wake-on-SAS, it indicates that engineers could tailor a better storage infrastructure for an optimal energy effectiveness and data availability management. VessJBOD stays off-line as an extended storage array of VessRAID and resumes its operation for data backup on a scheduled timing basis, providing you with new backup and restore storage experience.

Energy Efficiency Means Savings Effectiveness
VessJBOD uses 80 PLUS-certified power supplies. 80 PLUS means an 80% above energy-efficient program in power supply design. 80 PLUS power supplies not only lower power costs and reduce current draw for a significant improvement of power quality, but also come with value-added non-energy benefits such as reductions of heat output, maintenance costs, and total cost of ownership as a better system reliability environment.

Your Comprehensive Storage Partner
PROMISE storage solutions comprise various combinations of host bus adapter, Vess system and enclosure series connections. A VessRAID storage system can be direct attached with the FastTrak TX8668 adapter as host channel, and downlinks secondary VessJBOD expansion enclosure up to 80 drives. A VessJBOD enclosure supports IOP based RAID adapters like SuperTrak EX8654, SuperTrak EX8658, and SuperTrak TX8658 as a massive disk storage pool.

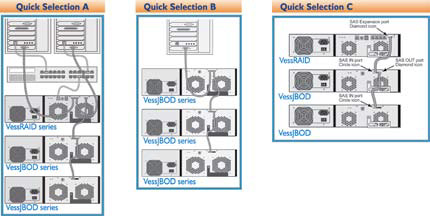

Quick Selection Guide:

Quick Selection Guide
	Host Option	Subystem/Enclosure
A	FastTrak TX8668	VessRAID SAS series
B	SuperTrak EX8654	VessJBOD series
	SuperTrak EX8658
	SuperTrak TX8658
C	VessRAID iSCSI series	VessJBOD series

Specifications:

VessJBOD 1000 Series Specifications
VessJBOD System	VessJBOD 1730	VessJBOD 1740	VessJBOD 1830	VessJBOD 1840
JBOD I/O Module Features
Form Factor	2U	3U	2U	3U
Drive Support	12 Drives (3.5")	16 Drives (3.5 ")	12 Drives (3.5")	16 Drives (3.5")
Drive Support	SAS(3Gb/s), SATAII(3Gb/s)
Controller	Single
Host Channel	Dual, IN/OUT SAS-wide(x4) port over SFF-8088
Host Options
PROMISE RAID HBA	SuperTrak EX8654, SuperTrak EX8658 SuperTrak TX8658
PROMISE RAID Storage System	VessRAID 1000 iSCSI/SAS Series
SAS Features
Management Function	Easy FRU Design Full SAS domain Topology Management SAS Management Protocol In-band Access to Expander and PHY Statistic Counters and Performance Monitors SES Enclosure Management SCSI SES Command Set over Virtual SSP Device
System Management
Supported OS	Windows 2000, XP, 2003, Vista, 2008 RedHat Linux SuSE Linux FreeBSD 7.0
Management Interfaces	LED Status Indicator In-band SES Enclosure Management CLI via RJ-11 serial port
Management Protocols	SES over in-band SA
System Information
AC Input	90 ~ 264 VAC, 47 ~ 63Hz
Current (Maximum)	6A (100V); 3A (240V)	7A (100V); 3.5A (240V)	6A (100V); 3A (240V)	8A (100V); 4A (240V)
Power Supply	Single 350W 90-264V auto-ranging w/PFC 80PLUS Bronze Certified	Single 450W 90-264V auto-ranging w/PFC 80PLUS Bronze Certified	Dual 350W 90-264V auto-ranging w/PFC 80PLUS Power Efficiency Hot swappable and redundant	Dual 450W 90-264V auto-ranging w/PFC 80PLUS Power Efficiency Hot swappable and redundant
FAN	N+1 Design
Temperature	5° ~ 40°C1 (-40° ~ 60°C non operational)
Relative Humidity	10% to 80% non-condensing
Dimensions (H x W x D)	88.4 x 446.2 x 460.5 mm 3.5 x 17.6 x 18.1 in	131 x 446.2 x 460.5 mm 5.1 x 17.6 x 18.1 in	88.4 x 446.2 x 460.5 mm 3.5 x 17.6 x 18.1 in	131 x 446.2 x 460.5 mm 5.1 x 17.6 x 18.1 in
Weight	10.8 kg (23.81 lbs) w/o drives 18.6 kg (41 lbs) w/ drives	13.8 kg (30.42 lbs) w/o drives 23.4 kg (51.59 lbs) w/ drives	12.6 kg (27.78 lbs) w/o drives 20.4 kg (44.97 lbs) w/ drives	15.8 kg (34.83 lbs) w/o drives 25.4 kg (56 lbs) w/ drives
Safety/EMI	CE, FCC Class B, VCCI, BSMI, CB, KCC, C-Tick, UL/cUL, TUV
Base Configuration	VessJBOD 2U/3U Unit w/ Drive Carrier RJ11-to-DB9 Serial Data Cable, Power Cord (Single PSU: 1; Dual PSU: 2) Quick Start Guide, Set of Screws, CD (Product Manual, Firmware Update Tool, QSG)
Warranty and Support
Warranty	3 years limited warranty²
Supported Hardware Options	Front Bezel, Sliding Rail, SAS Cable

¹Operational Temperature between 5° ~ 35°C if BBU installed
²BBU is covered by one year limited warranty

Documentation:

Download the PROMISE VessJBOD 1000 Series Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.

VessJBOD 1000 Series includes: Enclosure, 2-US power cords, 8-2TB Drives, Quick Start Guide, Product CD, slide mount assembly and HDD screws.
