PROMISE Vess A7600
Storage Solutions Designed for Surveillance


PROMISE Vess A7600

PROMISE Products
Vess A7000 Series
Vess A7600 3U/16-bay
Contact us for Pricing!

Click here to jump to more pricing!

Overview:

VessThe Vess A7000 Series storage appliance is specially engineered for IP video surveillance deployment on medium to large scale; ideally suited for surveillance systems in banks, malls, casinos, factories, warehouses, and commercial, residential, governmental or private enterprises. The subsystems are capable of continuous recording and playback operation without dropping frames.

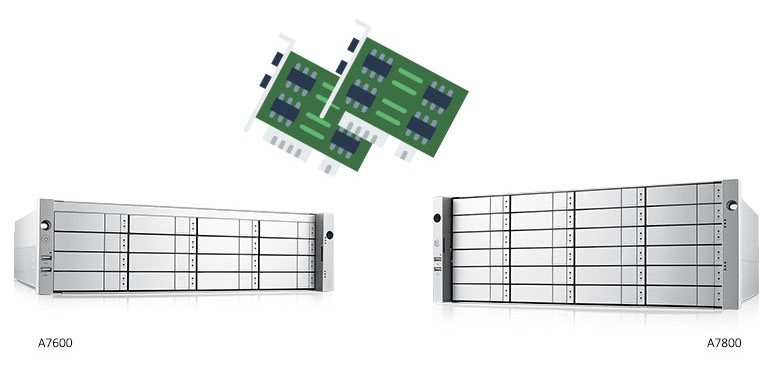

Server Level Performance & Expansion Design

Two options for large HDD capacity enclosures are available: a 3U 16-drive (Vess A7600) and 4U 24-drive (Vess A7800). The Intel E5 CPU combined with Promise Technology knowhow create an outstanding combination of performance and reliability for Midsize to Large-Scale surveillance deployments. For larger storage system requirements, the system is cost effect using the Promise JBOD to extend capacity without the added expense of an additional RAID server.

Server Level Performance & Expansion Design

SMARTBOOST Technologies

PROMISE proprietary SMARTBOOST Technology provides the most stable and high performance storage solution for your surveillance system. Performance that can be limited by storage equipment bottlenecks is significantly improved by Promise SMARTBOOST Technology. With the optimized software features and FRU hardware design, you have the best stability and storage performance with the best C/P ratio.

Predictive Playback

Predictive Playback

Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.

Remote Active Service

Remote Active Service

Takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying user the hardware status. A huge advantage in installations with site restrictions, such as banking, as it not only saves maintenance costs but also the headaches caused when outside support personnel need access to restricted areas.

Sequential Pattern Recording

Sequential Pattern Recording

Eliminates the heavy workloads caused by random write patterns; this feature monitors recording patterns and collects data in the cache buffer and writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

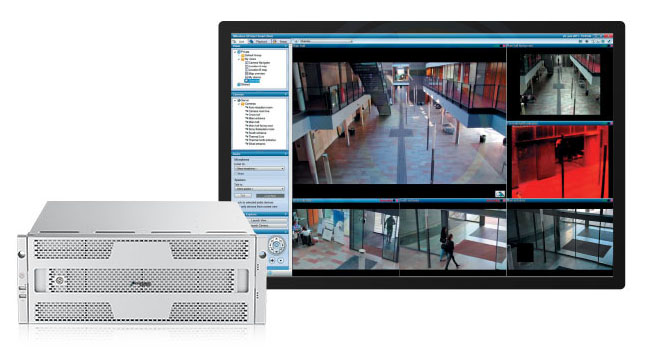

Purpose Built for Intelligent Video Analytics

To handle demand for Intelligent Video Analytics (IVA) in the surveillance market, Vess A7000 series supports multiple add-on graphic cards with embedded GPU to meet the performance requirements of such advanced projects in the field. The unique SMARTBOOST™ Video technology makes A7000 series more suitable for IVA applications with skill and ease.

Purpose Built for Intelligent Video Analytics

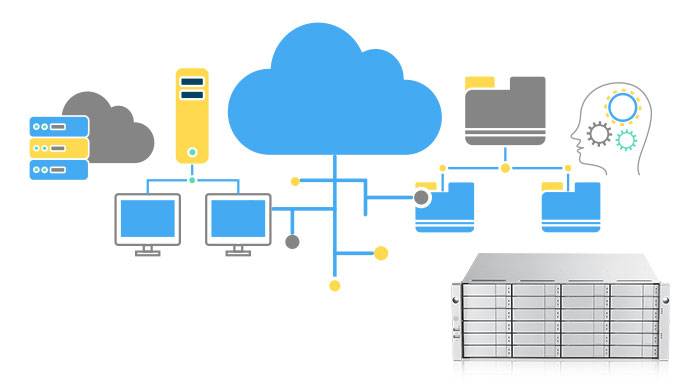

Stepping Stone to Artificial Intelligence

The combined features of scalable add-on GPU, SMARTBOOST video and storage technology provide a great entry point for Artificial Intelligence (AI) applications in future surveillance demand. Recording without frame dropped, reduced system loading, scalable hardware design to add more GPU onto your system, enables adoption of AI technology without adding unnecessary cost.

Stepping Stone to Artificial Intelligence

Features and Benefits:

  • Optimized for Surveillance: Storage appliance optimized for IP video surveillance.
  • Extensive VMS Support: Certied/tested with the world’s leading video management software.
  • Midsize to Large-Scale Solutions: Ideal for more than a hundred fullHD IP cameras, perfect for banking, retail, gaming, manufacturing, and more.
  • Add-On Graphic Card Supported: Capable of adding more extra GPU for advanced IVA applications. Support 1+1 add-on graphic card @A7600, 2+1 @A7800.
  • Easy to Administer & Maintain: Hot swappable drive bays, redundant power supplies, & One Plug Auto Service (OPAS) ensure Vess is incredibly easy to administer and maintain.

Specifications:


Vess A7600 Specifications
Camera Range1 150
Form Factor 3U, 19" Rackmount
Number Of Drives 16 Drives (3.5")
Drive Type 12Gbs SAS/ 6Gbs SATA @ 3.5”, SSD capable @2.5”, Hot Swappable
Controller Single
System Processor Intel Xeon E5-2603v4, E5-2600v4 series optional based on demand
System Memory 8GB Default (Max 512GB2)
I/O 2x Gigabit Ethernet / 1xIPMI
Internal Storage (M.2) 128GB
Storage Expansion Optional Vess SAS and iSCSI Storage
Max. # of HDDs Supported Up to 136 drives through iSCSI/SAS JBOD expansion
USB Ports 2x USB 3.0, 4x USB 2.0
PCI Express Ports 3x 16-lane Gen 3.0 PCIe
Graphics D-sub VGA(Mgmt Purpose)/Optional 2(Wide)+1(Narrow)
Audio & Microphone 1x Serial Port
RAID Levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50,60
Any combination can exist at the same time
Hot spares Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array 256/32
Supported OS (64-bit) Windows 10, Windows 2012R2, Windows 2016
Management Tools/Interface Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, IPMI, SDK or API for Integration
Appliance Mode Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification Email, SNMP, Buzzer, LEDs
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 8-4A ( 550W )
Power Supply Redundant 550W for each power
System Controller Replaceable FRU design
Temperature 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions 131 x 503 x 447 mm (5.1 x 19.8 x 17.6 in)
Weight System W/O HDD: 17.656 kg
System W/ HDD: 28.699 kg
Safety and EMI Certification CE, FCC, VCCI, RCM, BSMI, KC, (EMI Class A), CB, cTUVus3
Warranty 3 year limited warranty
Optional Accessories Sliding Rail, 4/8/16/32/64GB DDR4 Memory

1 The ideal camera range were the test output with fully populated enclosure and 8GB memory under 1080P Resolution, 30FPS, H.264 and 5Mbps Bitrate
2 256GB@RDIMM, 512GB @LRDIMM
3 CB Report is tested according to IEC/EN 60950-1 and IEC/EN 62368-1

Views:

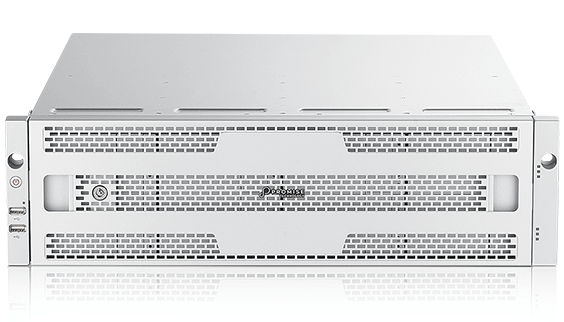

Front View
Front View

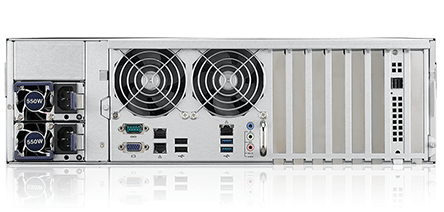

Rear View
Rear View

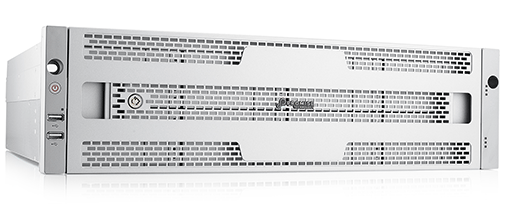

Left Angle View
Left Angle View

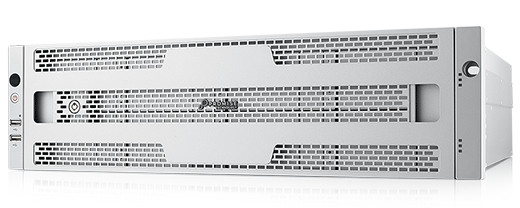

Right Angle View
Right Angle View

Documentation:

Download the PROMISE Vess A7000 Series Datasheet (PDF).

Pricing Notes:

PROMISE Products
Vess A7000 Series
Vess A7600 3U/16-bay
Contact us for Pricing!
Vess A7000 Series SSD Moldules
128GB M2 SSD Module for Vess A7600/A7800
#A7KM2SSD128G
Our Price: $290.00
Contact us for better pricing!
Vess A7000 Series Accessories
550W FSP Power Supply for Vess A7000/A6000 Series
#A700PSU5501U
Our Price: $354.00
Contact us for better pricing!
550W ASPower Power Supply for Vess A7000/A6000 Series
#A700PSU550AS
Our Price: $245.00
Contact us for better pricing!
3U Front Bezel for Vess A7600/A6600
#A7666BZL3U
Our Price: $176.00
Contact us for better pricing!
Vess A-Series Rail Kit
#NVRRAIL3U
Our Price: $86.00
Contact us for better pricing!
SAS HBA for Vess A7000/A6000 Series
#A70CRDSASHBA
Our Price: $358.00
Contact us for better pricing!
