PROMISE Vess A6120 Series

Sorry, this product is no longer available, it is replaced by the Pegasus3 Series.


Overview:

Surveillance Building Blocks

Through the deployments of Vess Orange, Vess Black and Vess Blue together with the entire Vess family of products, security professionals can build their own surveillance system for projects of any size.

Customizable Interfaces and Graphics

The Vess A6120 is customizable so it can perform a variety of functions based on your needs. Use the available PCI or PCM cards to create the mix of data and network connections to suit your applications. Promise does provide a recommended set of HBAs and add-in cards for customers to choose from, including 1G Base-T, 10G Base-T, 10G SPF+, SAS expansion, extension RAID boards as well as graphic cards.

Embedded SmartBoost Technologies

A6120 is equipped with Promise's SmartBoost Technologies to optimize the system performance while playing back and writing surveillance video to the system. SmartBoost Technologies include:

  • Sequential Pattern Recording - increase and stabilize recording performance
  • Predictive Playback - better playback performance
  • Non-Stop Service - non-stop video surveillance services

The Vess A6120 series is designed as building blocks for the deployment of a video surveillance system. Vess A-Series NVR appliances are open platform solutions that can be deployed with any of the leading IP cameras, video management software (VMS) and central management software (CMS) for installations of any size. Reliable and easy to set up, Vess A6120 is the ideal server appliance for establishing a complete surveillance system.

Vess A6120 are 1U 4-bay rackmount solutions offering easy expandability through Promise external storage units. They are perfect for up to 60 IP cameras without extra storage, and with larger scale-out storage Vess A6120 can support up to 200 cameras.

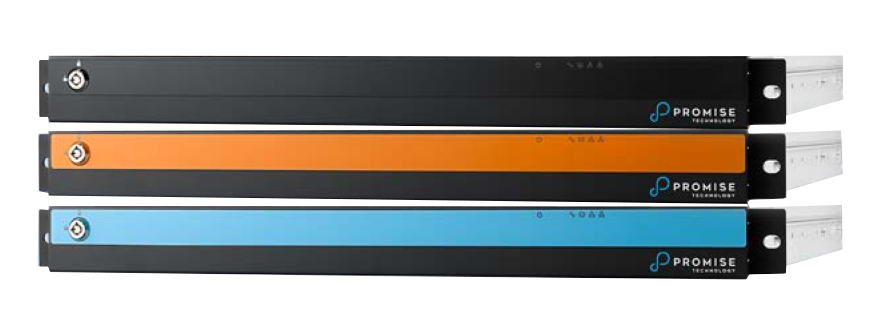

There are three main specifications for the Vess A6120 series that can be deployed based on the needs of your project:

  • Vess Black (A6120-MS) - designed for managing the whole surveillance system
  • Vess Orange (A6120-AS) - designed for running intelligent video analytics
  • Vess Blue (A6120-RS) - designed for general recording purpose

PROMISE A6120 series diagram

Features:

Vess Black

Vess Black is equipped with 1 Intel Xeon® E5-2620 v4 CPU plus 8GB RAM (expandable to 128GB). It is the best choice for running CMS and managing the whole surveillance system.

Vess Orange

Vess Orange is equipped with 2 Intel Xeon® E5-2620 v4 CPUs plus 16GB RAM (expandable to 128GB). It is suitable for analyzing huge amounts of video data.

Vess Blue

Vess Blue is available with 1 Intel Xeon® E5-2603 v4 CPU plus 8GB RAM (expandable up to 128GB). It meets the demands for a recording server inside the whole system.

Specifications:


Model Vess Orange Vess Black Vess Blue
Model name A6120-AS A6120-MS A6120-RS
Form Factor 1U 1U 1U
Processor 2 x Intel Xeon E5-2620 v4 1 x Intel Xeon E5-2620 v4 1 x Intel Xeon E5-2603 v4
Memory 16/32GB DDR4 ECC 8GB DDR4 ECC 8GB DDR4 ECC
Internal Storage M.2 64G M.2 64G M.2 64G
SSD 0/2 (optional) N/A N/A
HDD 4 x 3.5” SATA (SAS optional) 4 x 3.5” SATA (SAS optional) 4 x 3.5” SATA (SAS optional)
Storage Expansion iSCSI and JBOD iSCSI and JBOD iSCSI and JBOD
Max# of HDD Supported Up to 112 HDDs thru iSCSI & JBOD Up to 112 HDDs thru iSCSI & JBOD Up to 112 HDDs thru iSCSI & JBOD
RAID Levels 0, 1, 1E, 3, 5, 6, 10(0+1), 30, 50, 60 0, 1, 1E, 3, 5, 6, 10(0+1), 30, 50, 60 0, 1, 1E, 3, 5, 6, 10(0+1), 30, 50, 60
RAID Stripe Size 64K, 128K, 256K, 512K and 1MB 64K, 128K, 256K, 512K and 1MB 4K, 128K, 256K, 512K and 1MB
Max LUNs 256 logical drives per controller 256 logical drives per controller 256 logical drives per controller
Networking 1GbE x 4 1GbE x 2 1GbE x 2
Optional Add-on Card* A. 2-port 1G Base-T, B. 2-port 10G Base-T, C. 2-port 10G SFP+, D. SAS Expansion Card, E. Extension RAID Board, F. Graphic Card, G. 4-port 1G Base-T
Power Supply Dual 650W Platinum Dual 650W Platinum Dual 650W Platinum
System Cooling 5 swappable fans 5 swappable fans 5 swappable fans
Preloaded OS WS2012 R2 WS2012 R2 Win 10 Enterprise
Management Tools GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Dimension 710mm x 430mm x 43.5mm 710mm x 430mm x 43.5mm 710mm x 430mm x 43.5mm
Safety Certification FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty 3-year Limited Warranty
Accessories Sliding Rail, 8GB DDR4 ECC Memory Sliding Rail, 8GB DDR4 ECC Memory Sliding Rail, 8GB DDR4 ECC Memory
*Promise prepares a set of add-on cards for customers to choose, offering great flexibility for customizing the platform for various kinds of projects. For all possible integration possibilities, please check the Vess A6120 Quick Start Guide or the Product Manual for more information.

Documentation:

Download the PROMISE Vess A6120 Series Datasheet (PDF).

Pricing Notes:

PROMISE Products
Vess A-Class Server Storage Appliance for Video Surveillance
Vess A2000 Series Hard Drive Module Options
2TB 7200-RPM SATA Drive Module for Vess A6120 - Pre-tested and qualified
#A61DM1P2TST
Our Price: $215.00
Contact us for better pricing!
4TB 7200-RPM SATA Drive Module for Vess A6120 - Pre-tested and qualified
#A61DM1P4TST
Our Price: $365.00
Contact us for better pricing!
6TB 7200-RPM SATA Drive Module for Vess A6120 - Pre-tested and qualified
#A61DM1P6TST
Our Price: $470.00
Contact us for better pricing!
8TB 7200-RPM SATA Drive Module for Vess A6120 - Pre-tested and qualified
#A61DM1P8TST
Our Price: $700.00
Contact us for better pricing!
