PROMISE Vess A3120
Best Surveillance Storage for SMB/Client Viewer


PROMISE Vess A3120

PROMISE Products
Vess A3120 Series
Vess A3120-CV 1U/4-bay with 16TB (4x4) 3.5" SATA HDD
Win10 OS Installed
#VA3120HWSWNB
Our Price: $4,932.00
Contact us for better pricing!
Vess A3120-CV 1U/4-bay with 24TB (6x4) 3.5" SATA HDD
Win10 OS Installed
#VA3120HWSWPB
Our Price: $5,332.00
Contact us for better pricing!
Vess A3120-CV 1U/4-bay with 32TB (8x4) 3.5" SATA HDD
Win10 OS Installed
#VA3120HWSWQB
Our Price: $5,998.00
Contact us for better pricing!
Vess A3120-CV 1U/4-bay with 40TB (10x4) 3.5" SATA HDD
Win10 OS Installed
#VA3120HXSW3B
Our Price: $6,932.00
Contact us for better pricing!

Click here to jump to more pricing!

Overview:

VessPROMISE proprietary SMARTBOOST Technology provides the most stable and high performance storage solution for your system. Promise SMARTBOOST Technology signicantly improves performance that is otherwise limited by storage equipment bottlenecks. SMARTBOOST Technology provides the best stability and performance with the best C/P ratio.

Storage Appliances + Client Viewer provides Wider Applications

PROMISE Vess A3120 is a Storage Appliance for SMB/small installation video surveillance. It includes a Client Viewer for applications that require 24/7 monitoring. It is certified for several VMS for a complete surveillance system solution, using varied software features across multiple VMS.

Storage Appliances + Client Viewer provides Wider Applications

Built-In GPU for better IVA Performance

Vess A3120 speeds up the graphic card performance and other processing using a built-in GPU, Intel Media SDK and thoroughly tested Graphic card implementation. Intelligent Video Analytics (IVA) has placed increased performance demands on surveillance systems; Vess A3120 handles basic recording AND better performing IVA tasks simultaneously.

Built-In GPU for better IVA Performance

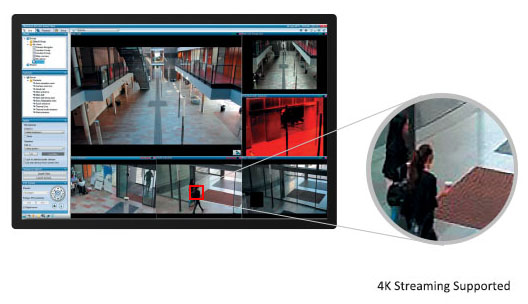

4K Resolution Streaming Supported

4K camera support is an essential feature for areas that require high resolution camera monitoring. The Vess A3120 features 4K camera streaming for local display to provide high definition imaging of crucial areas.

4K Resolution Streaming Supported

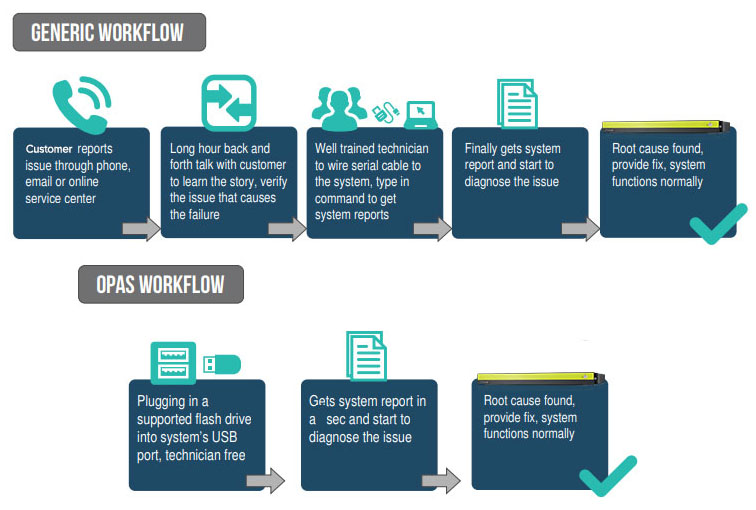

Reduce the complexity of Maintenance by OPAS

One Plug Auto Service (OPAS) is a unique feature of Promise Vess App solutions that provides user convenience, reduces complexity for maintenance, and stream- lines technical support. OPAS enables users to collect all the necessary logs and data used by the Promise support team to analyze the status of Vess A-Series Storage appliances.

Reduce the complexity of Maintenance by OPAS

Features and Benefits:

  • Optimized for Surveillance: Storage appliance optimized for IP video surveillance.
  • Small Installation & SMB: Ideal for less than 64ch full-HD IP cameras, perfect for banking, retail, prison, hotel, and more.
  • Easy to Administer & Maintain: Hot swappable drive bays, and One Plug Auto Service (OPAS) ensure Vess is easy to administer and maintain.

Specifications:


Vess A3120-CV Specifications
Camera Range1 64
Form Factor 1U, 19" Rackmount
Number Of Drives 4 Drives (3.5")
Drive Type 6Gbs SATA @ 3.5”
Controller Single
System Processor
Intel Core i3-7101E
System Memory 4GBx2 Default (Max 32GB)
I/O 2x Gigabit Ethernet / 1xIPMI
Internal Storage (M.2) 128GB
Storage Expansion Optional Vess SAS and iSCSI Storage
Max. # of HDDs Supported Up to 112 drives through iSCSI/SAS JBOD expansion
USB Ports 5x USB 3.0, 2x USB 2.0
PCI Express Ports 1x8-lane Gen3
Graphics 1x VGA, 1x HDMI, 1x Display Port
Serial Interfaces 1x Serial Port
Audio & Microphone 3x 3.5mm Audio Jack and SPDIF
RAID Levels 0, 1, 1E, 3, 5, 6, 10, Any combination can exist at the same time
Hot spares Multiple global or dedicated hot-spare drives with revertible option
Max LUNs per system/array 256/32
Supported OS (64-bit) Windows 10
Management Tools/Interface Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification Email, SNMP, Buzzer, LEDs
AC Input 100 ~ 240 VAC, 47 ~ 63Hz
Current (Maximum) 7A
Power Supply 350W Single ATX
Temperature 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions 44.2 x 446.4 x 398 mm
Weight System W/O HDD: 6.48 kg
System W/ HDD: 9.16 kg
Safety and EMI Certification CE, FCC, VCCI, RCM,(EMI Class A), cULus
Warranty 3 year limited warranty
Optional Accessories Sliding Rail, 4/8/16 GB DDR Memory

1 The ideal camera ranges were output of fully populated enclosure by pure recording and 8GB memory under 30FPS, H.264, 5Mbps Bitrate and 1080P resolution *The final spec may vary without further notice, please check with Promise website for the latest information

Views:

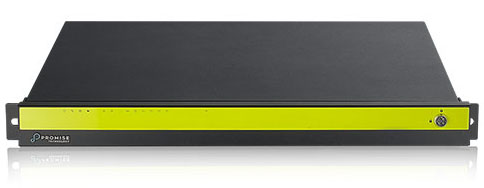

Front View
Front View

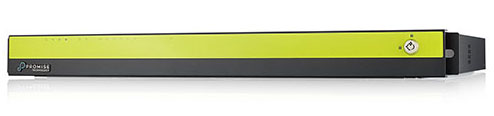

Left Angle View
Left Angle View

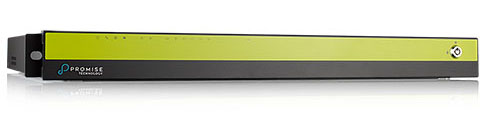

Right Angle View
Right Angle View

Documentation:

Download the PROMISE Vess A3120 Series Datasheet (PDF).
