PROMISE Vess A2600
NVR Storage Solutions Designed for Surveillance

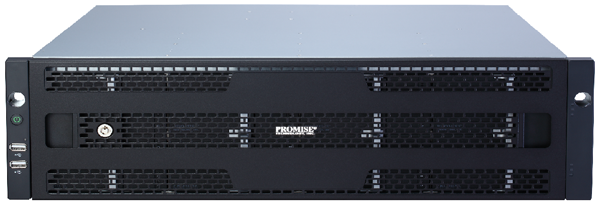

PROMISE Vess A2600

This product is no longer available, please contact us for a replacement solution.



Overview:

VessThe Vess A2000 Series are high performance NVR storage appliances for IP video surveillance designed for installations of up to over one hundred full-HD IP cameras. As a fully certified solution optimized for surveillance video recording, the Vess A2000 Series dramatically reduces the costs and complexity of video surveillance deployments.

Optimized for surveillance

Vess NVR server and storage appliances are custom built to offer the highest levels of performance for IP video surveillance. Promise is active in all of the key video surveillance segments and is able to provide a solution for deployments of any size.

Reduces costs and complexity

Vess NVR appliances reduce support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, Vess NVR appliances reduce interoperability conflicts caused when integrating different hardware.

Certified by surveillance partnersCertified by surveillance partners

Vess NVR appliances are fully compatible with a range of VMS including Aimetis, Axxonsoft, CamIQ, CSVi, OnSSI, SeeTec, Genetec, and Milestone and IP cameras from the leading providers.

Highly integrated with smooth scalability

An SDK library is provided for VMS UI and management integration. Plus, Vess supports the Milestone VMS plug-in enabling it to be managed via the XProtect interface. Additionally, you can easily expand via iSCSI by adding Promise external storage.

SmartBoost TechnologiesSmartBoost Technologies

A collection of unique features designed to provide the highest level of service and overcome performance bottlenecks to allow Vess NVRs to handle a higher number of IP cameras than competing solutions.

  • Predictive Playback - utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
  • Remote Active Service – takes all worries away by proactively detecting when PSU, controllers or HDDs are going into critical condition and automatically notifying Promise support so the customer can be contacted, spare parts can be sent out or the unit can be powered up after an outage - vitally important in environments that cannot risk downtime.
  • Sequential Pattern Recording - eliminates the heavy workloads caused by random write patterns as this feature monitors recording patterns and collects data in the cache buffer and only writes data to the drives once a full stripe is ready. This creates a sequential recording pattern which offers the smoothest performance.

Simplified planningSimplified planning

With just a few clicks of the Promise online planning tool you can easily get the whole picture of what you need for your project, including the NVR and storage requirements, how to configure the servers and storage and see a topology of the interconnecting systems with the most popular and recommended settings.

NVR Storage Appliance for IP Video Surveillance

The Vess A2000 Series is built to be the best video surveillance storage solution on the market. Delivering reliable and stable performance for surveillance video recording, especially when the arrays is in a critical state or during rebuild which is key to eliminating frame dropping, the Vess A2000 Series is ideal for installations of up to over a hundred full-HD IP cameras, making it perfect for banking, retail, gaming, manufacturing, and many more industries.

NVR Storage Appliance for IP Video Surveillance

Reduces Deployment Costs and Complexity

The Vess A2000 Series reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A2000 Series reduces interoperability conflicts caused when integrating different hardware.

Mid to Large Range Storage Solutions with 3rd Party VMS
Mid to Large Range Storage Solutions with 3rd Party VMS

Partner Proven

The Vess Series has been certified and tested with the world’s leading video management software, including Milestone, Genetec, CamIQ, and AxxonSoft, delivering the highest levels of compatibility and performance. This provides a complete solution at a great price point, ensuring that customers' expectations for excellence, performance, and scalability are met.

Integrated Solution - Easier to Manage & Grow

The all-in-one Vess A2000 solution makes it incredible easy to scale as your surveillance needs grow. Security practitioners can easily scale with no user configuration, just plug and add. When external storage is a must, easily scale up with PROMISE’s Vess external storage series, creating a total video surveillance solution that combines a recording appliance and external storage.

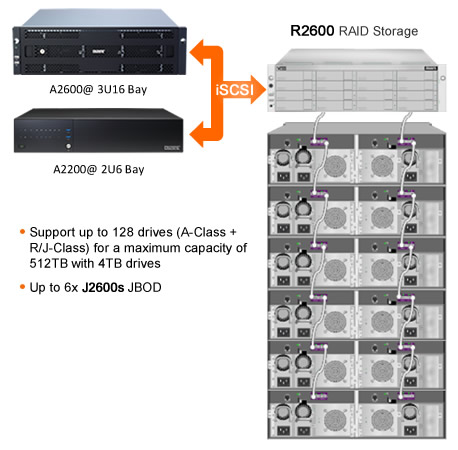

Vess A2000 Expansion Options - iSCSI EXPANSION
Vess A2000 Expansion Options - iSCSI EXPANSION

Easy to Use Management Interface

The A2000 Series can be managed conveniently over the network connection using the user-friendly browser-based GUI, or the text-based command line network terminal interface. Alternatively you can manage it out-of-band with a VGA or HDMI monitor and USB keyboard to access the text- based command line interface.

Outstanding Track Record of Reliability

Reliability is paramount for surveillance deployments in order to protect property, assets or even the safety of individuals. The Vess A2000 Series features the PROMISE RAID engine, which has been battle-tested in countless mission critical applications around the globe. With its incredible track record for reliable video data management and storage, the Vess Series is ideal for users requiring an extremely reliable and safe data center for video archive protection.

Features and Benefits:

System Highlights

  • Ideal for 64-128 HD IP camera range installation
  • Advanced RAID engine requires no separate storage unit
  • Certified with the top VMS solutions
  • Supports the Milestone XProtect plug-in
  • Scales smoothly in capacity with Vess R2000 series
  • Robust error handling enables non-stop recording without dropping frames
  • Hot swappable drive bays, redundant power supplies and One Plug Auto Service
  • Perfect for mid-size to large scale deployments such as manufacturing, city surveillance and more

Features

  • SmartBoost Technologies: Unique technologies which allow the systems to handle a much higher number of IP cameras:
    • Predictive Playback - Utilizes idle recording times to monitor read patterns to predict where the next playback will be needed so the hard disk drives are not competing with the workload of the system.
    • Sequential Pattern Recording - Eliminates the heavy workloads caused by random write patterns. Monitors recording patterns and collects data in the cache buffer and only writes data to the drives once a full stripe is ready, creating a sequential recording pattern with the smoothest performance.
  • Reduces Deployment Costs and Complexity: Reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for an extra server, controller cards, external cables, and a separate storage enclosure.
  • Open Platform: Compatible with a range of VMS including Aimetis, Axxonsoft, CamlQ, CSVi, Digifort, OnSSI, SeeTec, Genetec, and Milestone and IP cameras from Axis, Bosch, Samsung and Sony.
  • Milestone XProtect Plug-in: Makes storage management significantly more convenient for users as the Vess GUI is embedded in the XProtect application and runs as an integrated part of the software.
  • Surveillance Project Design Tool: Helps determine the overall installation requirement of a given project by calculating total storage space, bandwidth needed, recording server and external storage requirements
  • Smooth Scalability: Easily expand via iSCSI by adding Promise Vess R2000 storage with built-in SmartBoost Technology either for live recording on external storage or for archiving.
  • Easy Management & Serviceability: Hot swappable drive bays, redundant power supplies, & One Plug Auto Service

Ideal Customer Profile

  • IP video surveillance deployments
  • Surveillance customers who need to store data for anywhere from several weeks to years
  • Looking for an IP video surveillance solution that is inexpensive and easy to deploy

Typical Customer Needs

  • Best price/performance
  • Low latency recording
  • Easy to deploy, use and maintain
  • Failsafe data protection
  • Easy to scale as needs grow

Typical Customer Pain Points

  • Applying storage designed for IT in surveillance applications
  • Dropped video frames
  • Difficulty in administering & maintaining storage solutions
  • Too expensive
  • Integrating hardware and software from several different vendors

Typical Use Cases

  • Ideal for IP video surveillance deployments of any size and in any industry

System Video Throughput:

System Video Throughput
Image Resolution Codec Quality
(Compression Ratio)
FPS
(frames per second)
Vess A2200 Vess A2600
640x480 JPEG 30 30 32 36
JPEG 60 30 37 36
MPEG 30 30 52 110
MPEG 60 30 64 128
H.264 30 30 64 110
H.264 60 30 64 128
1280x720 JPEG 30 30 17 24
JPEG 60 30 25 30
H.264 30 30 40 60
H.264 60 30 56 90
2048x1536 JPEG 30 30 5 9
JPEG 60 30 8 13
H.264 30 30 20 32
H.264 60 30 26 52

Specifications:


  Vess A2200 Vess A2600 Vess A2330 Vess A3340
General Information
Camera Range 32-64 64-128 Up to 35* Up to 80*
Form Factor 2U, 19" Rackmount 3U, 19" Rackmount 2U, 19" Rackmount 2U, 19" Rackmount
Number Of Drives 6 Drives (3.5") 16 Drives (3.5") 6 Drives (3.5") 8 Drives (3.5")
Drive Type SATA (6Gb/s* or 3Gb/s), NCQ, TCQ, Hot Swappable SATA
# of Controllers Single Single Single Single
System Processor Intel Core i3 Intel Xeon E3 Intel Celeron J1900 Intel Xeon E3
System Memory 4GB Default (Max 16GB) 8GB Default (Max 16GB)
I/O Interface 4x Gigabit Ethernet 4x Gigabit Ethernet 2x Gigabit Ethernet 2x Gigabit Ethernet
Storage Expansion iSCSI iSCSI iSCSI iSCSI
Max # of HDDs Supported Up to 118 drives through iSCSI & JBOD expansion Up to 128 drives through iSCSI & JBOD expansion Up to 118 drives through iSCSI & JBOD expansion Up to 120 drives through iSCSI & JBOD expansion
Other Interfaces
# of USB Ports 4x USB 3.0, 2x USB 2.0 4x USB 2.0 4x USB 3.0, 2x USB 2.0 6x USB 3.0, 2x USB 2.0
PCI Express Ports 1x 16-lane Gen 2.0 PCIe,
2x 8-lane Gen 2.0 PCIe
1x 16-lane Gen 2.0 PCIe,
3x 8-lane Gen 2.0 PCIe
N/A 1 x PCIe 3.0 x 8
1 x PCIe 3.0 x 4
Graphics D-sub VGA and HDMI D-sub and HDMI D-sub, HDMI and Display Port
Serial Interfaces 2x RS-232C (D-sub 9-pin) 3x RS-232 1x RS-232
Audio & Microphone 2x 3.5mm Audio Jack 2x 3.5mm Audio Jack 3x 3.5mm Audio Jack + SPDIF
Sensor Input/Alarm Output
Sensor In Compatible w/ DC3.3V to 24V, photo coupler input x 8
Alarm Out Max. DC 24V/1A, mechanical relay output x 8
RAID Operational Features
RAID Levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50
Any combination can exist at the same time
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Any combination can exist at the same time
0, 1,1E, 3, 5, 6, 10 (0+1), 30, 50; Any Combination can exist at the same time 0, 1,1E, 3, 5, 6, 10 (0+1), 30, 50; Any Combination can exist at the same time
Hot Spares Multiple global or dedicated hot-spare drives with revertible option
Max. LUNs per System/Array 256/32
Software
Preloaded OS (64-bit) Windows Embedded Standard 7 Runtime (WS7P), Windows Server 2012 R2 Standard or Linux Windows Embedded Standard 7
Management Tools Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration
Appliance Mode Surveillance Optimization @ Arrays in Normal and Degrade
Event Notification Email, SNMP, Buzzer, LEDs
System Information
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 4A (100V); 2A (240V) 1.1A 2.5A
Power Supply Three redundant 250W, Energy-efficient 80PLUS Certified, 90-264V full-ranging w/PFC, Hot swappable N+1 Design 250W 350W
BTU 1288 BTU/hr 1729 BTU/hr 375.43 BTU/h 853.25 BTU/h
Fan Hot swappable design Hot swappable design Swappable Redundant
Temperature 5° ~ 40°C (-40° ~ 60°C non-operational)
Dimensions (H x W x D) 88.2 x 446.2 x 400 mm (3.5 x 17.6 x 15.7 in) 130.1 x 446.2 x 461 mm (5.1 x 17.6 x 18.1 in) 88.2 x 446.2 x 400 mm (3.5 x 17.6 x 15.7 in) 88.2 x 446.2 x 400 mm (3.5 x 17.6 x 15.7 in)
Weight 10.4kg(22.9 lbs) w/o drives,
14.9kg (32.8lbs) w/drives
15.9kg(35.1 lbs) w/o drives,
27.9kg (61.5lbs) w/drives
6.8kg (14.96 lbs) w/o drives,
10.94kg (24.1 lbs) w/drives
7.38kg (16.23 lbs) w/o drives,
12.9kg (28.38 lbs) w/drives
Safety/EMI CE, FCC Class A, BSMI, CB, KC, UL/cUL, CCC FCC/CE/VCCI/RCM/BSMI/UL/cUL/Nemko
Warranty and Support
Warranty 3 years limited warranty
Optional Accessories Sliding Rail, 2/4/8GB DDR3 Memory
*Hard disk drive still runs at 3Gb/s speed

Views:

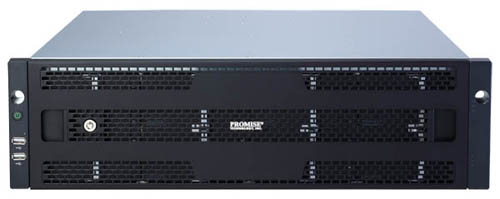

Front View
Front View

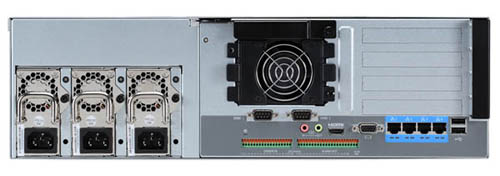

Rear View
Rear View

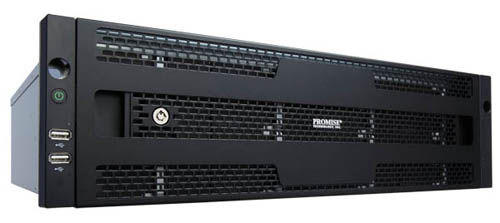

Right Angle View
Right Angle View

Videos:



Documentation:

Download the PROMISE Vess A2000 Series Datasheet (PDF).
