PROMISE Vess A2000 Series
NVR Storage Solutions Designed for Surveillance

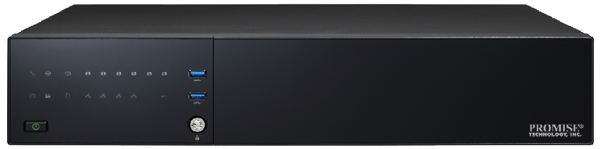

Vess A2200
Vess A2600
Our Price: $4,799.00
Our Price: $6,399.00
Our Price: $11,799.00
Our Price: $16,399.00
Click here to jump to more pricing!
Overview:
The Vess A2000 Series are high performance NVR storage appliances for IP video surveillance designed for installations of up to over one hundred full-HD IP cameras. As a fully certified solution optimized for surveillance video recording, the Vess A2000 Series dramatically reduces the costs and complexity of video surveillance deployments.
System Highlights and Benefits
- NVR storage appliance optimized for video surveillance
- Ideal for up to over 100 full-HD IP cameras
- Perfect for gaming, manufacturing, retail, hospitals and many more industries
- Integrated solution results in less management overhead
- Reduces deployment costs, complexity and interoperability conflicts
- Add capacity with the PROMISE Vess R2000 Series
- Partner proven – certified/tested with world leading Video Management Software (VMS)
- Preloaded with operating system
- Customers can choose the VMS of their choice
- One Plug Auto Service – easy maintenance and serviceability
- Redundant power supplies
- Hot-swappable drive bays
| NVR Storage Appliances for IP Video Surveillance | |
|---|---|
| Vess A2600 | |
RAID 0, 1, 1E, 3, 5, 6, 10(0+1), 30, 50, 60              |
|
| Vess A2200 | |
RAID 0, 1, 1E, 3, 5, 6, 10(0+1), 30, 50    |
|
Features:
NVR Storage Appliance for IP Video Surveillance
The Vess A2000 Series is built to be the best video surveillance storage solution on the market. Delivering reliable and stable performance for surveillance video recording, especially when the arrays is in a critical state or during rebuild which is key to eliminating frame dropping, the Vess A2000 Series is ideal for installations of up to over a hundred full-HD IP cameras, making it perfect for banking, retail, gaming, manufacturing, and many more industries.
Reduces Deployment Costs and Complexity
The Vess A2000 Series reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A2000 Series reduces interoperability conflicts caused when integrating different hardware.
Mid to Large Range Storage Solutions with 3rd Party VMS
Partner Proven
The Vess Series has been certified and tested with the world’s leading video management software, including Milestone, Genetec, CamIQ, and AxxonSoft, delivering the highest levels of compatibility and performance. This provides a complete solution at a great price point, ensuring that customers' expectations for excellence, performance, and scalability are met.
Integrated Solution - Easier to Manage & Grow
The all-in-one Vess A2000 solution makes it incredible easy to scale as your surveillance needs grow. Security practitioners can easily scale with no user configuration, just plug and add. When external storage is a must, easily scale up with PROMISE’s Vess external storage series, creating a total video surveillance solution that combines a recording appliance and external storage.
Vess A2000 Expansion Options - iSCSI EXPANSION
Easy to Use Management Interface
The A2000 Series can be managed conveniently over the network connection using the user-friendly browser-based GUI, or the text-based command line network terminal interface. Alternatively you can manage it out-of-band with a VGA or HDMI monitor and USB keyboard to access the text- based command line interface.
Outstanding Track Record of Reliability
Reliability is paramount for surveillance deployments in order to protect property, assets or even the safety of individuals. The Vess A2000 Series features the PROMISE RAID engine, which has been battle-tested in countless mission critical applications around the globe. With its incredible track record for reliable video data management and storage, the Vess Series is ideal for users requiring an extremely reliable and safe data center for video archive protection.
System Video Throughput:
| System Video Throughput | |||||
|---|---|---|---|---|---|
| Image Resolution | Codec | Quality (Compression Ratio) |
FPS (frames per second) |
Vess A2200 | Vess A2600 |
| 640x480 | JPEG | 30 | 30 | 32 | 36 |
| JPEG | 60 | 30 | 37 | 36 | |
| MPEG | 30 | 30 | 52 | 110 | |
| MPEG | 60 | 30 | 64 | 128 | |
| H.264 | 30 | 30 | 64 | 110 | |
| H.264 | 60 | 30 | 64 | 128 | |
| 1280x720 | JPEG | 30 | 30 | 17 | 24 |
| JPEG | 60 | 30 | 25 | 30 | |
| H.264 | 30 | 30 | 40 | 60 | |
| H.264 | 60 | 30 | 56 | 90 | |
| 2048x1536 | JPEG | 30 | 30 | 5 | 9 |
| JPEG | 60 | 30 | 8 | 13 | |
| H.264 | 30 | 30 | 20 | 32 | |
| H.264 | 60 | 30 | 26 | 52 | |
Specifications:
| Vess A2000 Series Specifications | ||
|---|---|---|
| Vess A2200 | Vess A2600 | |
| Camera Range | 32-64 | 64-128 |
| Form Factor | 2U, 19" Rackmount | 3U, 19" Rackmount |
| Number Of Drives | 6 Drives (3.5") | 16 Drives (3.5") |
| Drive Type | SATA (6Gb/s* or 3Gb/s), NCQ, TCQ, Hot Swappable | |
| # of Controllers | Single | |
| System Processor | Intel Core™ i3-3225 @ 3.30GHz Dual-core 4-thread | Intel Xeon Processor E3-1245V2 @ 3.4GHz Quad-core 8-thread |
| System Memory | 4GB Default (Max 16GB) | 8GB Default (Max 16GB) |
| I/O Interface | 4x Gigabit Ethernet | |
| Storage Expansion | Optional Vess iSCSI Storage | |
| Max # of HDDs Supported | Up to 118 drives through iSCSI & JBOD expansion | Up to 128 drives through iSCSI & JBOD expansion |
| Other Interfaces | ||
| # of USB Ports | 4x USB 3.0, 2x USB 2.0 | 4x USB 2.0 |
| PCI Express Ports | 1x 16-lane Gen 2.0 PCIe, 2x 8-lane Gen 2.0 PCIe | 1x 16-lane Gen 2.0 PCIe, 3x 8-lane Gen 2.0 PCIe |
| Graphics | D-sub VGA and HDMI | |
| Serial Interfaces | 2x RS-232C (D-sub 9-pin) | |
| Audio & Microphone | 2x 3.5mm Audio Jack | |
| Sensor Input/Alarm Output | ||
| Sensor In | Compatible w/ DC3.3V to 24V, photo coupler input x 8 | |
| Alarm Out | Max. DC 24V/1A, mechanical relay output x 8 | |
| RAID Operational Features | ||
| RAID Levels | 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50 Any combination can exist at the same time |
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60 Any combination can exist at the same time |
| Hot Spares | Multiple global or dedicated hot-spare drives with revertible option | |
| Max. LUNs per System/Array | 256/32 | |
| Software | ||
| Preloaded OS (64-bit) | Windows Embedded Standard 7 Runtime (WS7P) or CentOS 6.3 | |
| Management Tools | Graphical UI/SNMP via Ethernet, CLI/CLU via Ethernet or Graphics, OPAS Service via USB, SDK or API for Integration | |
| Appliance Mode | Surveillance Optimization @ Arrays in Normal and Degrade | |
| Event Notification | Email, SNMP, Buzzer, LEDs | |
| System Information | ||
| AC Input | 100 ~ 240 VAC, 60 ~ 50Hz | |
| Current (Maximum) | 4A (100V); 2A (240V) | |
| Power Supply | Three redundant 250W, Energy-efficient 80PLUS Certified, 90-264V full-ranging w/PFC, Hot swappable N+1 Design | |
| BTU | 1288 BTU/hr | 1729 BTU/hr |
| Fan | Hot swappable design | |
| Dimensions (H x W x D) | 88.2 x 446.2 x 400 mm (3.5 x 17.6 x 15.7 in) | 130.1 x 446.2 x 461 mm (5.1 x 17.6 x 18.1 in) |
| Weight | 10.4kg(22.9 lbs) w/o drives, 14.9kg (32.8lbs) w/drives | 15.9kg(35.1 lbs) w/o drives, 27.9kg (61.5lbs) w/drives |
| Safety/EMI | CE, FCC Class A, BSMI, CB, KC, UL/cUL, CCC | |
| Warranty and Support | ||
| Warranty | 3 years limited warranty | |
| Optional Accessories | Sliding Rail, 2/4/8GB DDR3 Memory | Sliding Rail, 2/4/8GB DDR3 Memory |
*Hard disk drive still runs at 3Gb/s speed
Documentation:
Download the PROMISE Vess A2000 Series Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
Vess A-Class Series includes: Enclosure w/Drives, 3 Power cords for US, Quick Start Guide, Product CD, Rack Mount Kit, Bezel, Riser Card (Vess A2600 only)
Our Price: $4,799.00
Our Price: $6,399.00
Our Price: $11,799.00
Our Price: $16,399.00
