PROMISE VTrak J610s Series
Robust, high-availability JBOD storage enclosure with Single or Dual I/O modules and up to four SAS-wide Ports

PROMISE VTrak J610 Series

Sorry, this product is no longer available, please contact us for a replacement solution.



Overview:

VTrakThe VTrak J-Class delivers an affordable high-performance SAS solution with advanced enterprise level reliability and functionality. The four external SAS ports provide the connectivity and bandwidth for large capacity solutions requiring multiple cascaded JBODs. Fully-redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, provides exceptional data availability even during component failures.

Affordable enterprise-class storage

The VTrak J-Class delivers an affordable high-performance SAS solution with advanced enterprise level reliability and functionality. The four external SAS ports provide the connectivity and bandwidth for large capacity solutions requiring multiple cascaded JBODs. Fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, provides exceptional data availability even during component failures.

No single point of failure

With the VTrak J-Class, Promise has dramatically narrowed the gap between simple fault tolerance and "No Single Point of Failure." All system components are redundant and are constantly monitored using industry standard protocols to ensure continuous operation. Dual active-active JBOD I/O modules provide redundant data paths to ensure data availability.

Outstanding service and support

Every VTrak J-Class is backed by the Promise three year limited warranty with 24/7 (Americas & EMEA) telephone and email support. When support confirms a failure in the field, advanced replacement parts are always available to eliminate downtime.

Features:

System Highlights

  • JBOD storage enclosure with Dual I/O modules and four SAS-wide Ports

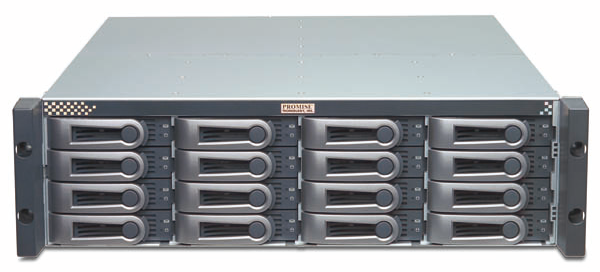

  • 16 hot-swappable drive bays in a robust 3U chassis
  • Supports Serial Attached SCSI (SAS) and SATA drives simultaneously
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS & SATA drives, HBAs and RAID controllers

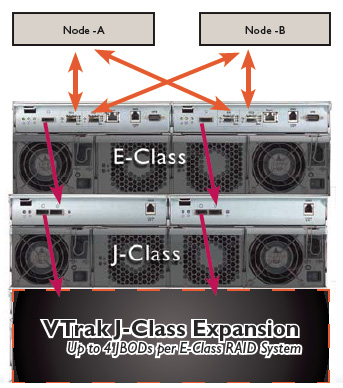

VTrak J-Class ExpansionAffordable enterprise-level storage
The VTrak J-Class delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external SAS ports provide the connectivity and bandwidth for large capacity solutions requiring multiple cascaded JBODs. Fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, provides exceptional data availability even during component failures.

No Single Point of Failure
With the VTrak J-Class, PROMISE has dramatically narrowed the gap between simple fault tolerance and "No Single Point of Failure". All system components are redundant and are constantly monitored using industry standard protocols to ensure continuous operation. Dual active-active JBOD I/O modules provide redundant data paths to ensure data availability.

Service and Support
Every VTrak is backed by the PROMISE 3-Year limited warranty with 24/7 telephone and email support (Americas & EMEA). When our support confi rms a failure in the field, advanced replacement parts are always available to eliminate down time.

Specifications:

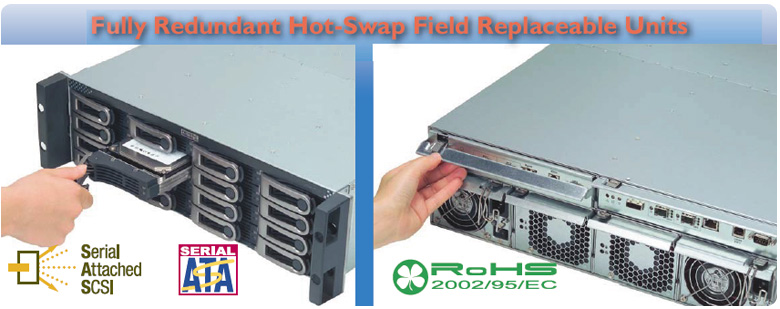

Fully Redundant Hot-Swap Field Replaceable Units
VTrak Jx10 Series Specifications
JBOD I/O Module Features 2U/12-Bay 3U/16-Bay
Model Numbers -Single I/O VTJ310sS VTJ610sS
Model Numbers -Dual I/O
supports failover/failback and active/ active drive access
VTJ310sD VTJ610sD
Drive Support: Up to twelve 3.5" x 1" hard drives Up to sixteen 3.5" x 1" hard drives
SAS 3Gb/s, SATA II 3Gb/s and 1.5Gb/s*
Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports Each I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS
connectors (SFF-8088), one IN and one OUT for cascading JBODs
SAS Features
  ANSI T10 SAS 1.0 and 1.1 Compliant
Management Function – With Expander Embedded Processor
  • Self-confi guring expander supports full SAS domain topology management
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
System Management
Supported Operating Systems Windows 2003, Linux (Red Hat, SuSE)
Management Interfaces LED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or comnent failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management Protocols SES over in-band SAS
Mechanical Specification
Voltage 100-240 Vac Auto-Ranging
Current (Maximum) 8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords)
Power Supply Dual 400W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design Dual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Power Consumption 100.87 Watts (under load w/o HDD), 412.51 Watts (under load with SAS HDD) 108.38 Watts (under load w/o HDD), 523.91 Watts (under load with SAS HDD)
Operating Temperature/ Humidity 5°~40°C (-40°~60°C non operational) / Maximum 95%
Vibration Random, 0.21 grms, 5-500Hz, X, Y, Z axis
Dimensions (H x W x D) 8.84 x 44.65x 56.1 cm (3.5 x 17.6 x 22.1in) 13.1x 44.65x 56.1 cm (5.2 x 17.6 x 22.1in)
Weight
* Assume each hard drive = 0.5 kg
Net weight: 26.5 kg (58.4 lbs) without drives, 32.5 kg (71.7 lbs) with 12 drives*
Gross weight: 33kg (72.8 lbs) without drives
Net weight: 30.5 kg (67.2 lbs) without drives, 38.5 kg (84.9 lbs) with 16 drives*
Gross weight: 37.5kg (82.7 lbs) without drives
Safety CE, FCC ClassA, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC

Warranty Three year complete system limited warranty
Support 24x7 email and phone support (English only); 24x7 access to PROMISE support site-drivers, firmware and compatibility

Documentation:

Download the PROMISE VTrak J-Class Datasheet (PDF).
