PROMISE VTrak E5320f
High-Availability Storage System for Big Data


PROMISE VTrak E5320f

Promise Products
VTrak E5320 Series SINGLE 16G FC RAID Series
2U/24-Bay SFF 16G FC Single Controller RAID system with 24 x 1TB HDD
#E5320FSNX1
Get a Quote!
2U/24-Bay SFF 16G FC Single Controller RAID system with 24 x 2TB HDD
#E5320FSNX2
Get a Quote!
VTrak E5320 Series DUAL 16G FC RAID Series
2U/24-Bay SFF 16G FC Dual Controller RAID system with 24 x 1TB HDD
#E5320FDNX1
Get a Quote!
2U/24-Bay SFF 16G FC Dual Controller RAID system with 24 x 2TB HDD
#E5320FDNX2
Get a Quote!

Click here to jump to more pricing!

Overview:

High Performance, High Availability

The VTrak E5000 Series delivers an affordable high-performance Fibre Channel to SAS storage solution with advanced enterprise level reliability and functionality. With four 16Gb Fibre Channel ports and two 12Gb SAS ports per controller connecting host and storage expansion, the E5000 is perfect for applications requiring huge bandwidth. The E5000 can output 542,100 read IOPs and up to 111,686 write IOPs. It can deliver 12 Gigabyte read and 5.3 Gigabyte write sequential throughput. Fully redundant components such as Active-Active controllers, power supplies, and cooling units provide optimal data availability even during unforeseen circumstances. The VTrak E5000 is truly a full featured enterprise level storage system that can accommodate any size of business environment.

Data Center Ready

Data Center Ready

Fully compatible with 6 Gb/s SAS/SATA devices, the VTrak E5000 gives users the ability to deploy 6 Gb/s and 12 Gb/s SAS/SATA HDDS and SSDs. Efficient power supplies provide up to 90% improved power efficiency, improving TCO by conserving power, reducing heat output and lower cooling costs. The E5000’s flash arrays enable optimized speed for key enterprise applications that need high-speed transfer rates and reduced latency and thanks to its Intel multi-core Broadwell-DE based architecture providing ample processing power to achieve transfer speeds at line rate on both 16Gb Fibre Channel front-end interfaces and 12Gb SAS backend interfaces.

Cloud Ready

As consumers and businesses become more mobile, the need for data access, retrieval, and distribution anywhere at any time means that data must be protected at all times. The E5000 Series provides the versatility and scale to meet the demands of data centers, hyper scale computing, and high-performance computing that requires flexibility and cost effective tiered storage management.

Cloud Ready
VMware Ready

VMware Ready

Ready to confront any challenge in today’s virtualized IT environment, the VTrak E5000 is certified with VMware vSphere, Citrix XenServer, and Microsoft Hyper-V. Additionally, the VTrak E5000 Series supports VMWare VAAI, which reduces resource overhead on VMWare vSphere ESXi hosts. This significantly improves performance for storage-intensive operations like storage cloning, zeroing, and more.

Features:

  • VTrak E5000 Series 16 Gb/s Fibre Channel to SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 24 hot-swappable 2.5” (LFF) drive bays in a 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active controllers with ALUA for performance and access flexibility
  • Quad 16Gb FC ports and dual 12Gb SAS ports per controller for connecting host and storage expansion
VMware Ready

Specifications:

VTrak E5320f Specifications
Form Factor 2U/24 Bay
Drive Support Up to 24 x 2.5" drives
  • 6/12 Gb SAS, 6 Gb SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller) Each SBB2.0 RAID Controller has four 16 Gb FC SFP ports for Host interface and two 12 Gb SAS standard Mini SAS HD ports (SFF-8644) for Storage Expansion, RJ45 1Gb Ethernet and RS232 for Management ports
RAID Levels 0, 1 , 5, 6, 10, 50, 60
RAID Stripe Size Support 64K, 128K, 256K, 512K and 1MB
Hot spares Global or dedicated with revertible option
Max LUNs per subsystem 1024
Max LUNs per array 32
Advanced Storage Features
  • Advanced Cache Mirroring over PCIe Gen3
  • Simple, drag-and-drop LUN Masking and Mapping
  • Asymmetric LUN Unit Access (ALUA)
  • Volume Copy
  • PerfectFlash - Non-Disruptive Software Update
  • I/O performance & power monitoring tools
  • USB Service Log
  • LDAP Support for central user management
Background Activities
  • Media Patrol
  • Background Synchronization
  • Foreground Initialization
  • Rebuild
  • Redundancy Check
  • Disk SMART Polling
  • Online Capacity Expansion (OCE)
  • RAID Level Migration (RLM)
  • UPS Monitoring
  • Feature rich task scheduler for background activities
PerfectRAID Features
  • Predictive Data Migration (PDM)
  • Intelligent Bad Sector Remapping
  • SMART Error Handling
  • NVRAM Error Logging
  • Disk Slot Power Control
  • Read/Write Check Table
  • Write Hole Table
GreenRAID Features
  • Four levels of advanced power management disk drive (MAID) support
  • Efficient 80Plus Certified power supplies
Management Interfaces
  • Web Based management using WebPAM PROe (Ethernet)
  • Command Line Interface (CLI) or Command Line Utility (Serial Port or Ethernet via Telnet, SSH)
  • Third Party Management Support via SNMP, CIM
Supported Operating Systems Windows Server 2008, 2012, HyperV, OS X 10.x, RHEL 6.5, 6.6, SLES 11, VMWare ESX v6.x
Voltage 100--240 Vac Auto--Ranging
Current (Maximum) 9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Operational: 5° to 40°C, Non-Operational: -40° to 60°C
Humidity Operational: 10% to 90% (Non-Condensing), Non--Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical), 65 dB (Maximum)
Shock Operational: 5G, 11 ms duration, Non-Operational: 10G, 11ms duration
Vibration Operational: 0.3G, 5 to 500 Hz, Non-Operational: 1G, 5 to 500 Hz
Safety and Emission Certification EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environmental Standards RoHS, GreenPC, WEEE
Power Supply Efficient 80PLUS GOLD Certified redundant PSU
Dimensions (H x W x D) 88 x 446.7 x 420 mm (3.5" x 17.6" x 16.5")
Weight 13.8 Kg (30.4 lbs) w/o drives, 19.2 Kg (43.3 lbs) w/ drives
Warranty 3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support 24/7 e-mail and phone support, 24/7 access to PROMISE site-drives, firmware, and compatibility list

Views:

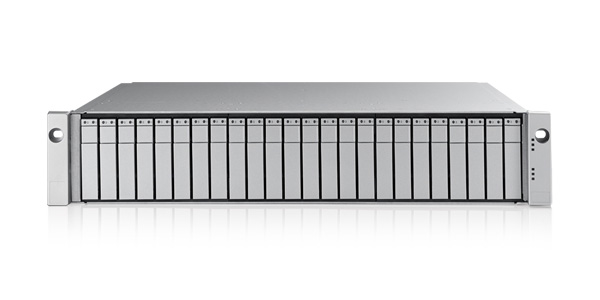

VTrak E5600f front

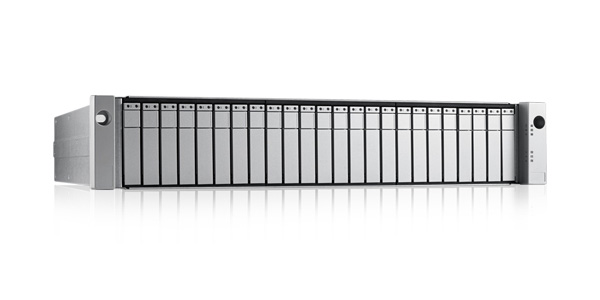

VTrak E5600f left

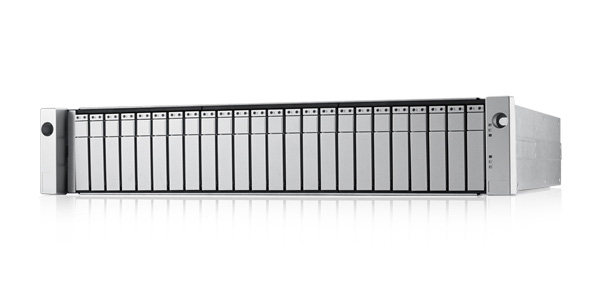

VTrak E5600f right

Videos:

Documentation:

Download the PROMISE VTrak E5000 Series Datasheet (PDF).

Pricing Notes:


Promise Products
VTrak E5320 Series SINGLE 16G FC RAID Series
2U/24-Bay SFF 16G FC Single Controller RAID system with 24 x 1TB HDD
#E5320FSNX1
Get a Quote!
2U/24-Bay SFF 16G FC Single Controller RAID system with 24 x 2TB HDD
#E5320FSNX2
Get a Quote!
VTrak E5320 Series DUAL 16G FC RAID Series
2U/24-Bay SFF 16G FC Dual Controller RAID system with 24 x 1TB HDD
#E5320FDNX1
Get a Quote!
2U/24-Bay SFF 16G FC Dual Controller RAID system with 24 x 2TB HDD
#E5320FDNX2
Get a Quote!
E5320 RAID and Expansion Series Diskless Chassis Solutions
2U/24-Bay SFF 16G FC Single Controller RAID system (Chasis only)
#E5320FSNX
Get a Quote!
2U/24-Bay SFF 16G FC Dual Controller RAID system (Chasis only)
#E5320FDNX
Get a Quote!
Hard Drive Modules with PROMISE tech Support
Pre-tested and qualified 2TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A2
Get a Quote!
Pre-tested and qualified 4TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A4
Get a Quote!
Pre-tested and qualified 6TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A6
Get a Quote!
Pre-tested and qualified 8TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A8
Get a Quote!
Pre-tested and qualified 14TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A14
Get a Quote!
Hard Drive Modules with HDD Manufacture Support
Pre-tested and qualified 2TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T2
Get a Quote!
Pre-tested and qualified 4TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T4
Get a Quote!
Pre-tested and qualified 6TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T6
Get a Quote!
Pre-tested and qualified 8TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T8
Get a Quote!
Pre-tested and qualified 10TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T10
Get a Quote!
Pre-tested and qualified 12TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T12
Get a Quote!
Pre-tested and qualified 14TB 7200-RPM dual-ported 12Gb SAS hard disk drive
#VTX50HD4T14
Get a Quote!
Vtrak Accessories
E5000 controller 16G FC
#X50CTL16G
Get a Quote!
585W Power Supply unit for J5300/J5320 or E5300/E5320 Subsystems
#X50PSU585
Get a Quote!
VTrak E5320/5300 Controller and PSU Service Part Kit
#X50CTLPSU2
Get a Quote!
Universal Rail Kit for 3U and 4U Chassis
#VRRAIL3U
Get a Quote!
Universal 2U Rail Kit
#VRRAIL2U
Get a Quote!
BlackJack SAS to SATA Adapter. Single piece
#VRST6GBJ4P
Get a Quote!
Battery Module for VTrak E5000/D5000
#BBU5000
Get a Quote!
