PROMISE SANLink3 N1
Thunderbolt 3 to Nbase-T Ethernet Bus Powered Adapter
Contact us for better pricing!
Portable and convenient high-speed ethernet connectivity now at the speed of thunderbolt 3

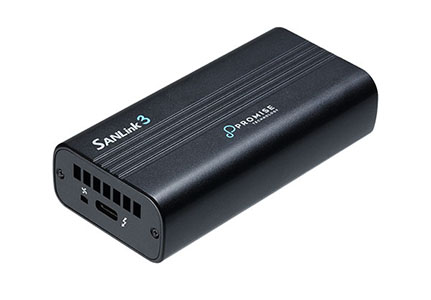

SANLink3 N1 is a compact, bus-powered NBase-T adapter that leverages Thunderbolt 3 to connect to Ethernet infrastructures at 1, 2.5, 5, or 10Gb/s.
Get more from existing networks or take advantage of new infrastructures
SANLink3 N1 NBase-T lets you connect at 1, 2.5 or 5Gbps over most existing Ethernet wiring or up to 10Gbps on the latest high-speed networks
Convenient and portable connectivity solution
SANLink3 N1 is bus-powered and requires no separate power supply. With its compact size and included Thunderbolt™ 3 cable, you can now stay mobile without sacrificing connection speeds.
The most affordable high speed Ethernet connection solution
SANlink3 N1 raises the bar for high-speed Ethernet connectivity and affordability. No other Thunderbolt 3 adapter provides these capabilities in such small compact package.
- The SANLink3 Series with Thunderbolt3 technology revolutionizes how creative professionals connect ThunderboltTM3 device to an existing Ethernet infrastructure
- High-speed NBASE-T technology is designed to maximize the available line rate of Thunderbolt3 at 10Gbps with new infrastructure or 1/2.5/5 Gbps on existing networks
- Faster network access streamlines creative and high demand workflow needs
- Bus-powered, compact, quiet and lightweight, no power adapters or big bulky boxes, easy to install and take with you
- Simple plug-n-play for OSX-plug your SANLink3 into a ThunderboltTM3 port and Ethernet cable, and you’re done

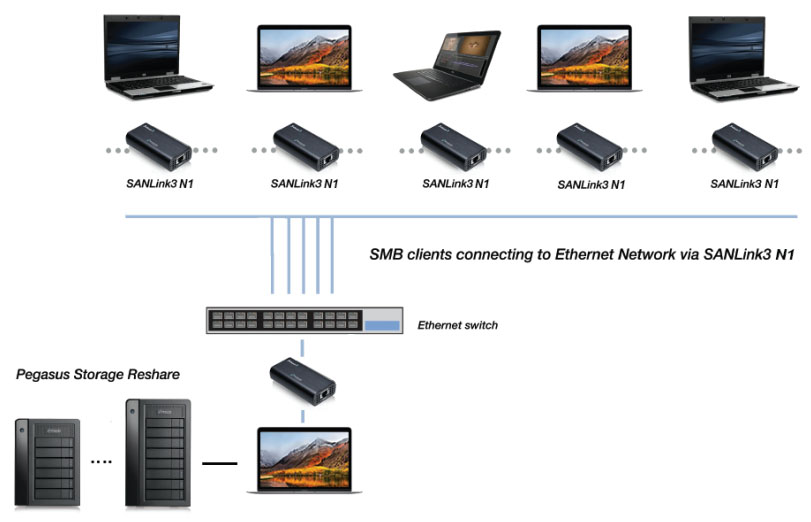

SANLink3 for a High Speed Ethernet Infrastructure
- SANLink3 NBASE-T provides Ethernet connectivity to your Ethernet network from your Thunderbolt 3 enabled portable or desktop computer.

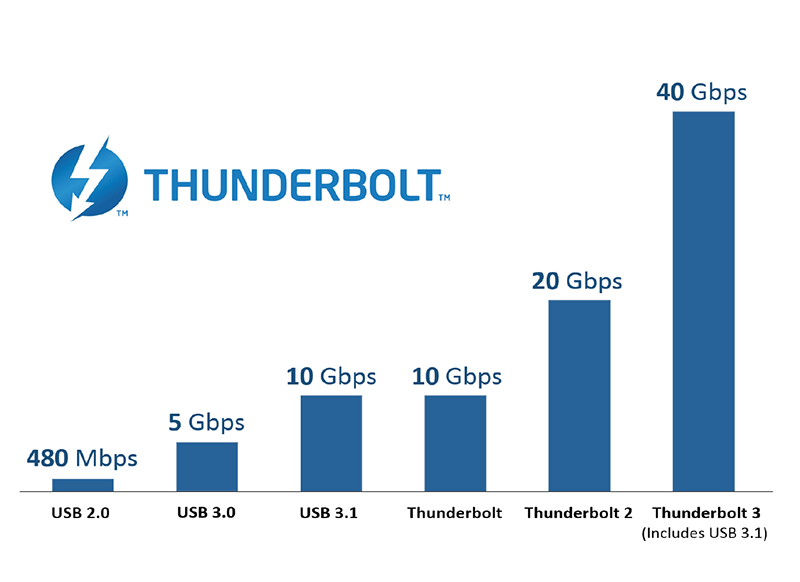

- Fast Thunderbolt 3 provides for twice the throughput of Thunderbolt 2
Do more with a single Thunderbolt 3 port
Daisy-chain multiple Thunderbolt 3 devices – High resolution displays, Pegasus3 RAID storage and connect to 10G Ethernet with a SANLink3 N1 and still get maximum performance!
Features and Benefits:
- Provides portable and desktop systems with high-speed Ethernet connectivity
- Improves network speeds for power users via a simple copper Ethernet cable
- High-speed NBASE-T connectivity is ideal for creative professionals
- Supports Jumbo Frames
- Enables upto 10Gbps Ethernet connectivity using Thunderbolt3 port
- Compact bus-powered design connects easily; runs cool and ultra-quiet
- Thunderbolt3 standards compliant
- Thunderbolt3 cable included
|SANLink3 N1 Specifications|

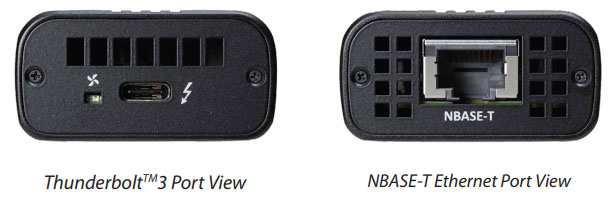

|External Ports||NBASE-T Ethernet Port|
|Thunderbolt™ Ports||Single Thunderbolt 3 technology port (40 G bps)|
|Transfer Rates||1250MB/s at 10Gb
625MB/s at 5Gb
312.5MB/s at 2.5Gb
125MB/s at 1Gb
|Host Bus Type||Single 40 Gbps Thunderbolt 3 port|
|Protocols||IEEE 802.3an - 10GBASE-T
IEEE 802.3bz - 2.5G/5GBASE-T
IEEE 802.3ab - 1000BASE-T
IEEE 802.3u - 100BASE-TX
|Dimensions||24 (H) x 96.4 (W) x 48 (D) mm|
|Requirements||Workstation or portable with Thunderbolt 3 port (Thunderbolt3 cable included)|
|OS Support||OS X 10.13.3 or later
Windows 10 (64-bit-available driver download)
Download the PROMISE SANLink3 N1 Datasheet (PDF).
