PROMISE Pegasus2 Series with Thunderbolt 2 Technology
The World's First & Fastest Storage Solution for Creative Professionals

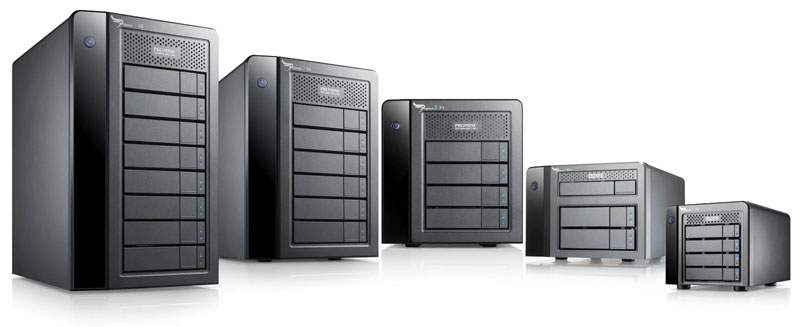

PROMISE Pegasus2 Series

Sorry, this product is no longer available, it is replaced by the Pegasus3 Series.

Pegasus2Overview:

The PROMISE Pegasus2 Series with Thunderbolt 2 technology delivers blistering performance to professionals creating rich, ultra-high resolution media. Pegasus2 maximizes the available line rate of Thunderbolt 2, enabling video creators to transfer and display 4K video files simultaneously. Pegasus2, the world's first RAID 5 solution with Thunderbolt 2 technology, enables pros and enthusiasts to create, edit and view live 4K video streams, while simultaneously backing up the files to their Pegasus2 (or multiple daisy-chained Pegasus2 drives) while still being able to use the same cables and connectors as the previous generation.

Pegasus has become the benchmark by which all Thunderbolt storage is measured. Simplify and accelerate your workflow. Safely backup massive creative projects. Create, edit, view, and share brilliant 3D and 4K video.

ThunderboltThe Absolute Fastest.

The Pegasus2 is the fastest and the only Thunderbolt 2 enabled hardware RAID storage available in the market. Showcasing Intel's revolutionary Thunderbolt 2 connectivity, the Pegasus2 boasts a staggering speed of 20Gb/s - more than enough to effortlessly handle and accelerate any 3D or 4K (Ultra-HD) workflow environment.

Windows compatible

Pegasus works with Window environments, too. For example, you could build an amazing system with Promise Windows compatible Thunderbolt 2 solutions and HP Z Workstations for exceptionally fast connectivity, enabling users to push the limits of their creativity.

Perfect Partner for the Mac Pro

Synergize the ultimate innovation of the new Mac Pro and Thunderbolt 2 with the capacity and performance of the industry’s fastest storage solution, Pegasus2. Multiply the Mac Pro’s flash storage capacity by daisy-chaining multiple Pegasus2 systems to achieve massive amounts of additional storage space.

Daisy-chain up to 6 Pegasus2 enclosure units or Thunderbolt peripherals for 6x the RAID 5/6 bandwidth
Daisy-chain up to 6 Pegasus2 enclosure units or Thunderbolt peripherals for 6x the RAID 5/6 bandwidth

Pegasus2 + Mac Pro.

Synergize the ultimate innovation of the new Mac Pro and Thunderbolt 2 with the capacity and performance of the industry’s fastest storage solution, Pegasus2. Multiply the Mac Pro’s flash storage capacity by daisy-chaining multiple Pegasus2 systems to achieve massive amounts of additional storage space.

Master the 4K environment.Helps You Master the 4K Environment

Experience the ability to seamlessly edit and stream 4K (Ultra HD) content, while backing up those files at the very same time. Boasting the world’s fastest connectivity speed at 20 Gbps, Thunderbolt™ 2 doubles the speed of the previous generation and perfectly supports bandwidth-hogging 4K workflow environments allowing you to never have to experience downtime with your digital creations.

Unleashes your Creativity

Being away from the studio for a shoot doesn’t mean you have to sacrifice the RAID protection and speeds of your SAN storage. Pegasus2 pairs together Thunderbolt 2 connectivity and enterprise-level hardware RAID protection in a compact, portable package that you can take with you almost anywhere. This makes it ideal for photographers, filmmakers, graphic designers, and other multimedia professionals.

New Pegasus2 R2+New Pegasus2 R2+

Pegasus2 R2+ is a Thunderbolt 2 hardware RAID 0/1 storage solution with USB 3.0 that includes two hot-swappable hard disk drives and a versatile media bay that now offers users the choice between four different interchangeable pods for convenient media exchange - a CF/SD Reader, SSD Reader, a 1TB HDD Pod and the new CFast 2.0 Reader Pod.   The CFast 2.0 Reader Pod provides a convenient and rapid way to transfer 4K content from the new generation of high-end cameras via CFast 2.0 media and is capable of supporting speeds up to 500 MB/s. Plus, each pod comes with USB 3.0 Micro-B for independent access, providing the convenience to take a Pod and work elsewhere away from the editing suite.  Data migration has never looked so easy!

Note that the USB 3.0 connection and Thunderbolt connection CANNOT be used at the same time.
A drive or connected device in the Media Bay is not detected when using the USB 3.0 connection.

Features and Benefits:

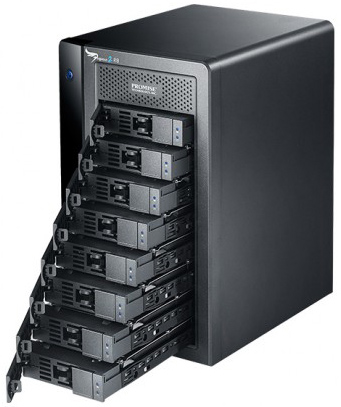

Pegasus2 Drives outSystem Highlights and Benefits

  • Simplify and accelerate your workflow.
  • Create, edit, view, and share brilliant 3D and 4K video.
  • Seamlessly transfer terabytes of data in minutes rather than hours.
  • Safely backup massive creative projects.
  • Supports maximum throughput allowed by Thunderbolt 2 interface.
  • Expand storage capacity and backup for new Mac Pro or Windows workstations.
  • Supports simultaneous streaming, editing, and backup of 4K video.
  • Dual Thunderbolt ports for daisy-chaining.
  • Hot-swappable drive bays for effortless drive access and serviceability.
  • Portable hardware RAID protection for offsite shoots.
  • Massive storage capacity for backing up creative projects and digital libraries.
  • Essential to PROMISE's end-to-end 4K workflow environment.
  • Thunderbolt cable included, backwards compatible with 10Gbps Thunderbolt hosts and devices.

Deployment:

Rich Media 4K Workflow

Rich Media 4K Workflow

PROMISE offers a complete shared storage solution featuring Thunderbolt 2 for 4K environments through Pegasus2, SANLink2, and VTrak A-Class.

Sequential Editing

Pegasus2 offers creative enthusiasts and professionals portable RAID storage for post-production and broadcasting, such as offsite shoots, remote studios, or department workgroups.

Multi-User Collaboration (1-4 Users)

SANLink2 Thunderbolt 2-to-Fibre Channel/Ethernet bridge provides high-speed connectivity directly to a fibre channel SAN or Ethernet for 4K applications.

Multi-User Collaboration (4-10+ Users)

VTrak A3800 shared storage appliance is for simultaneous, collaborative multi-user 4K editing, for higher performance bandwidth.


Specifications:

  Pegasus2 R2 Pegasus2 M4 Pegasus2 R4 Pegasus2 R6 Pegasus2 R8
Models Pegasus2 R2+ Pegasus2 M4 Pegasus2 R4 Pegasus2 R6 Pegasus2 R8
Form Factor 2-Bay hardware RAID Media Bay (SSD, HDD, CF/SD reader) enclosure 4-Bay (2.5" drives) hardware RAID enclosure 4-Bay (3.5" drives) hardware RAID Enclosure 6-Bay (3.5" drives) hardware RAID Enclosure 8-Bay (3.5" drives) hardware RAID Enclosure
RAID Level 0, 1 0, 1, 5, 6, 10, JBOD 0, 1, 5, 6, 10, JBOD 0, 1, 5, 6, 10, 50, JBOD 0, 1, 5, 6, 10, 50, 60, JBOD
Capacity 6TB (2x3TB) 4TB (4 x 1TB) 8TB (4x2TB)
12TB (4x3TB)
12TB (6x2TB)
18TB (6x3TB)
24TB (6x4TB)
24TB (8x3TB)
32TB (8x4TB)
48TB (8x6TB)
Thunderbolt Technology Ports 2x Thunderbolt 2 ports (20 Gbps)
1x USB 3.0 Type-B port (5GBps)*
2x Thunderbolt technology ports at 20Gb/s (2.5GB/s)
Dimensions Height : 5.3 in / 13.48 cm
Width : 7.3 in / 18.5 cm
Length : 9.8 in / 24.95 cm
Height: 4.2 in / 10.7 cm
Width: 5.0 in / 12.7 cm
Length: 6.6 in / 16.7 cm
Height: 7.5 in / 19.2 cm
Width: 7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Height: 9.8 in / 25.1 cm
Width: 7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Height: 12.2 in / 31.0 cm
Width:7.3 in / 18.7 cm
Length: 9.6 in / 24.5 cm
Weight 13.41 lb / 6.1 kg 5.5 lb / 2.9 kg 15 lb / 6.8 kg 20.1 lb / 9.1 kg 24.2 lb / 11 kg
Operating System OS X 10.8.5 or higher, Windows**
Warranty 2-year warranty
* Available in the US only. Ships formatted as RAID0 for maximum speed for both read and write - not a tolerance against disk failure
**Comes pre-formatted HFS+.

Views:

Pegasus2 R2+

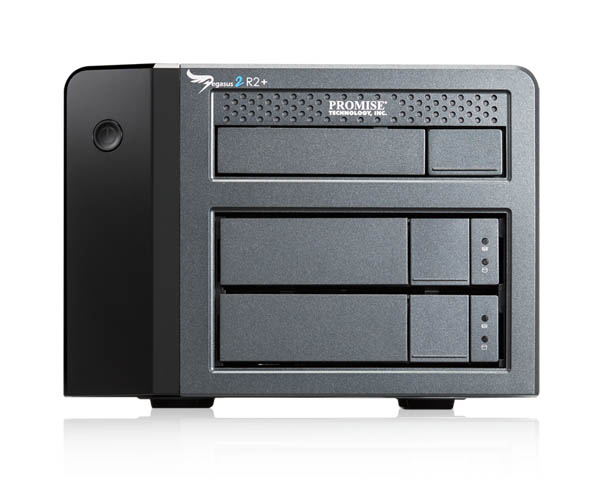

Pegasus2 R2+ Front View
Front View

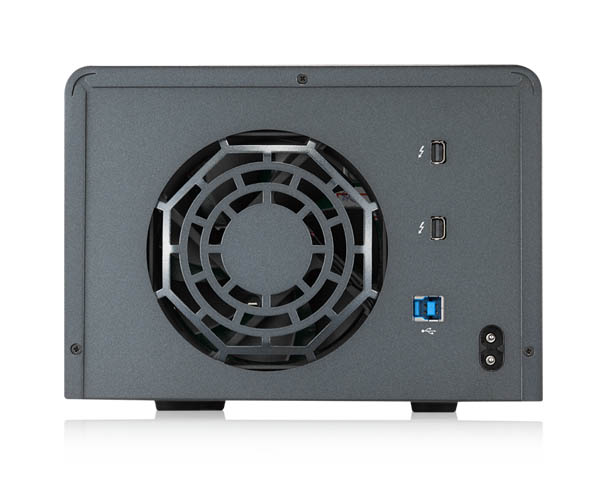

Pegasus2 R2+ Rear View
Rear View

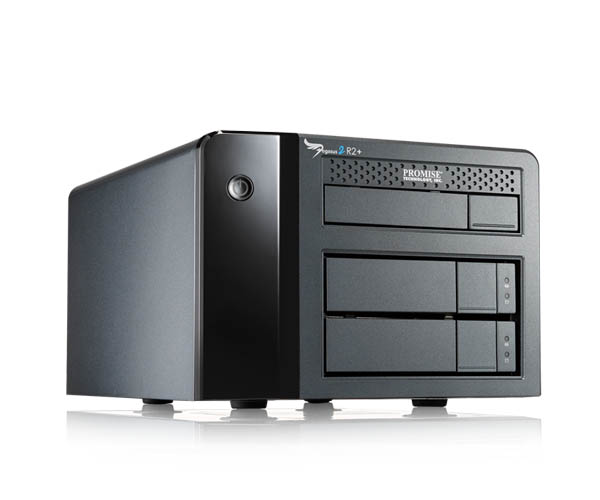

Pegasus2 R2+ Left Angle View
Left Angle View
Pegasus2 R2+ Right Angle View
Right Angle View

Pegasus2 R4

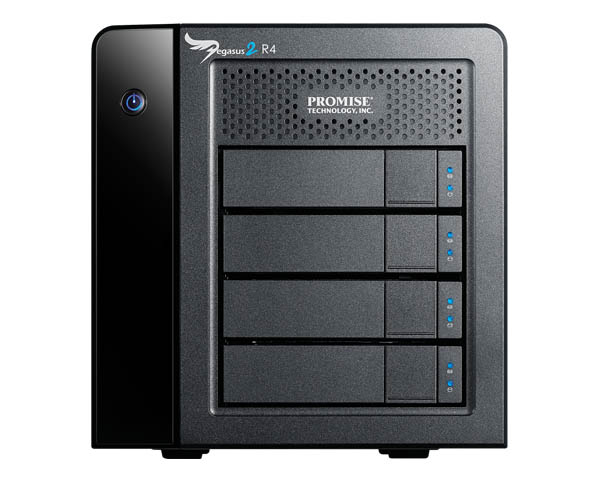

Pegasus2 R4 Front View
Front View

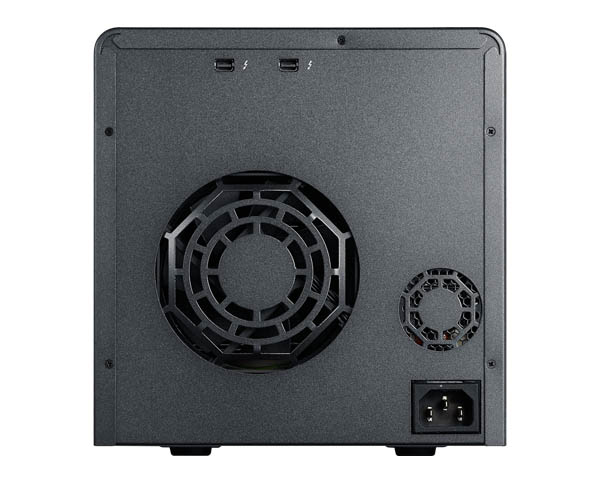

Pegasus2 R4 Rear View
Rear View

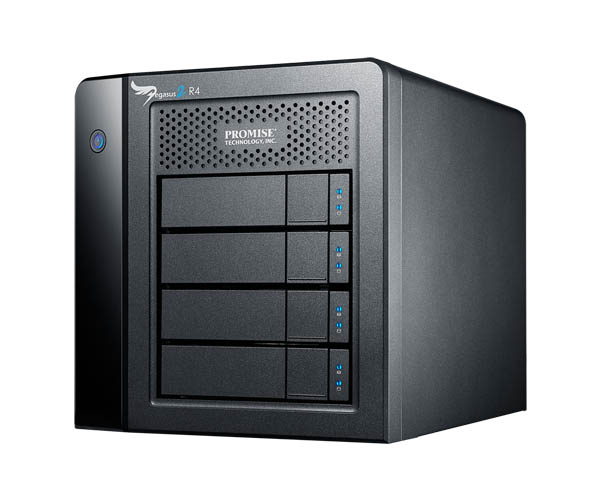

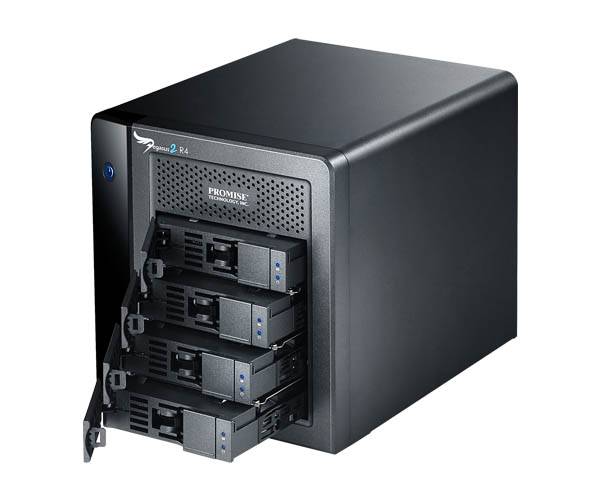

Pegasus2 R4 Left Angle View
Left Angle View
Pegasus2 R4 Drive Pull-Out View
Drive Pull-Out View

Pegasus2 R6

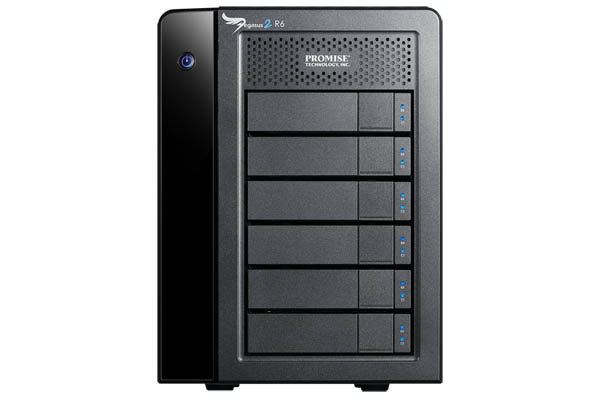

Pegasus2 R6 Front View
Front View

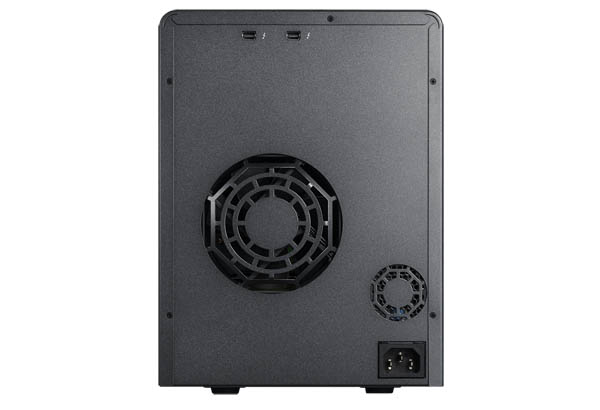

Pegasus2 R6 Rear View
Rear View
Pegasus2 R6 Left Angle View
Left Angle View

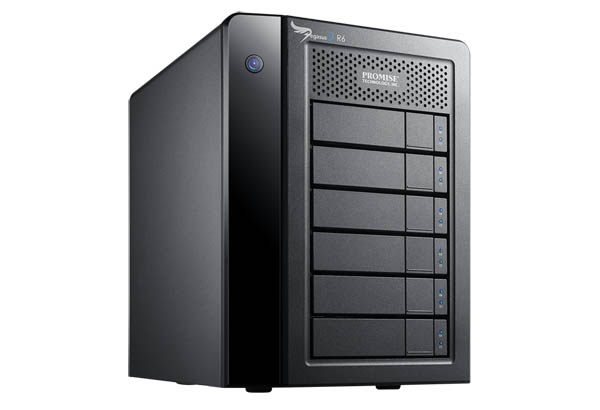

Pegasus2 R6 Right Angle View
Right Angle View

Pegasus2 R8

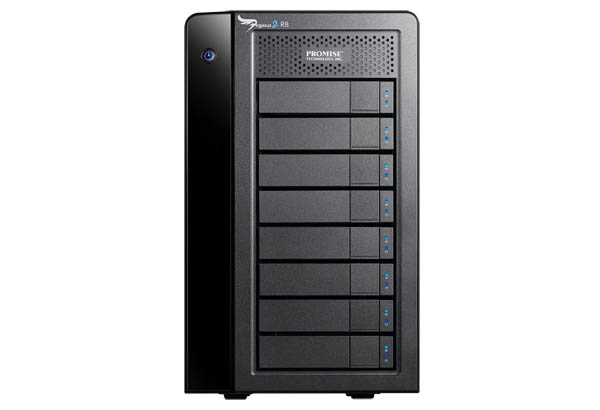

Pegasus2 R8 Front View
Front View

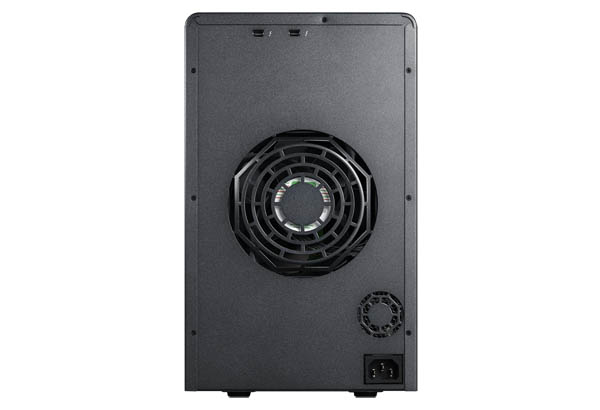

Pegasus2 R8 Rear View
Rear View

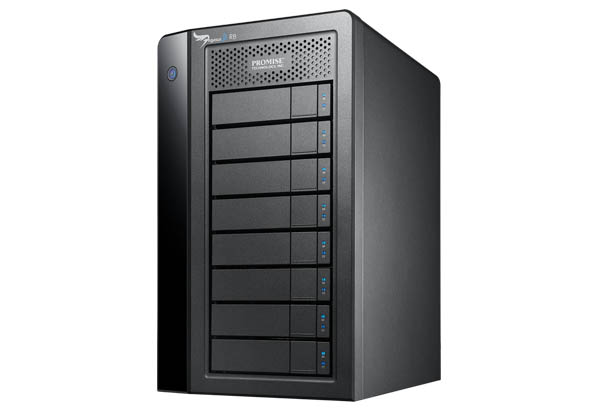

Pegasus2 R8 Left Angle View
Left Angle View
Pegasus2 R8 Right Angle View
Right Angle View

Videos:



Documentation:

Download the PROMISE Pegasus2 Series Datasheet (PDF).

Pricing Notes:

Promise Products
Pegasus2 RAID Storage with Thunderbolt2™ - 4- 6- & 8-bay DAS and 2-year 8x5 Support with Advanced Part Replacement
PROMISE CF/SD Reader pod with 50 cm USB cable.
