PROMISE Vess R2000 Series
Unified Storage Solution for SMBs


PROMISE Vess R2000 Series

PROMISE Products
VessRAID R2000 Series - 1G iSCSI RAID (No Drives)
VessRAID R2600 3U/16-bay Four iSCSI 1Gbps ports Single-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600ZISUBA
Our Price: $3,599.00
VessRAID R2600 3U/16-bay Four iSCSI 1Gbps ports Dual-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600ZIDUBA
Our Price: $5,499.00

Click here to jump to more pricing!

Overview:

VessThe Vess R2000 Series 3U 16-bay series are cutting-edge dual active-active high availability 8Gbps FC and 1 & 10Gbps IP SAN solutions that consolidate both block and file storage onto a single platform, providing small to medium businesses a cost-effective way to meet performance goals while simplifying administration.

Cost-effective high-availability NAS

Service interruptions can cripple a business. With the Vess R2000 Series, customers have a cost effective, dual controller, high-availability NAS-in-a-box, which ensures uninterrupted services. Conventional single controller based NAS solutions cannot always provide uninterrupted services. In order to achieve high-availability, those NAS solutions must deploy a high-availability cluster combining several devices, which is significantly more expensive.

Save space, costs and frustration

The Vess R2000 high-availability NAS cuts system configuration costs in half, cuts rack space by 50%, and greatly reduces management complexity compared to traditional single controller NAS solutions. Combined with the decreased risk of downtime and the hidden costs associated with bringing back single controller solutions for live use, the Vess R2000 Series is ideal for businesses trying to do more for less.

Unified storage for SMBs

The Vess R2000 Series is a unified storage solution that offers impressive performance while simplifying administration and adding flexibility. Choose to use an 8 Gb/s FC SAN for heavy I/O applications like video editing, high performance computing or scientific research. Use the 1 Gb/s &10 GB/s iSCSI SAN for less intensive I/O applications like data backup or remote replication. Or use NAS for video surveillance, virtualized environments or general file sharing applications.

Virtualization ready

Ready to confront any challenge in today’s virtualized IT environment, the Vess R2000 is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V and DataCore SANsymphony-V. Additionally, the Vess R2000 Series now supports VMWare VAAI, which reduces resource overhead on VMWare vSphere ESXi hosts. This significantly improves performance for storage-intensive operations like storage cloning, zeroing, and more.

Certified by Milestone for video surveillance

The Vess R2000 Series is tested and certified for Milestone XProtect® video management software. With documented performance results, best practice guidelines, and innovative solution architectures, integrators and end users can easily build a video surveillance solution with Vess and XProtect with complete confidence. Additionally, the Vess R2000 was verified to support up to four times the number of cameras as recommended by the Milestone calculator.

Simple to manage and use

Ease of use is absolutely crucial for SMBs with limited IT resources. The Vess R2000 Series is designed specifically with SMBs in mind, as it features One Plug Auto Service (OPAS) to reduce maintenance complexity and provide a streamlined tech support workflow. Simply plug in a USB drive and the user can retrieve information about the system for tech support, upgrade firmware, reset passwords and much more.

Features and Benefits:

VMware Ready  Citrix  Windows Server 2012

System Highlights

  • Fiber Channel 8Gbps, iSCSI 1Gbps & 10Gbps host connect ports
  • High availability dual controller design
  • Supports 6Gbps and 3Gbps SAS & SATA drives simultaneously
  • Scale up to 112 hard disk drives via VessJBOD expansion units
  • 128 iSCSI concurrent sessions per controller
  • Supports IPv6
  • Predictive Data Migration (PDM) – sparing out to prevent rebuilds
  • PerfectRebuild - Rebuild with improved recovery efficiency
  • Physical drive cache backup providing comprehensive cache protection
  • PerfectFlash - Non-disruptive image update without system down time
  • Advanced battery flash backup - Provides protection beyond the normal 72 hour backup of the RAID cache
  • Support volume copy
  • Power button and power resume management
  • Mute alarm control
  • Compact and Lightweight enclosure design
  • Embedded I/O performance and power usage monitoring
  • Three hot-swap redundant power supply units with 80PLUS certified
  • OPAS and UPS Monitor via USB
  • Embedded web-based management via Ethernet – WebPAM PROe
  • MAID 2.0 support
  • Wake-on-LAN support (Vess R2000 Series)
  • Wake-on-SAS support (Vess J2000 Series)

Benefits

  • Dynamic solution optimized for video surveillance
  • Unified storage streamlines administration & adds flexibility
  • Designed to meed the growing challenge of unstructured data
  • Cutting edge redundant, high capacity archiving solution
  • Support for on demand expansion, ideal for cloud data centers
  • Fiber Channel 8Gbps, iSCI 1 Gbps & 10Gbps host connect ports
  • High availability dual controller design
  • Supports 6 Gbps & 3Gbps SAS & SATA drives simultaneously
  • Scale up to 112 hard disk drives via Vess J2000 series expansion units

Specifications:

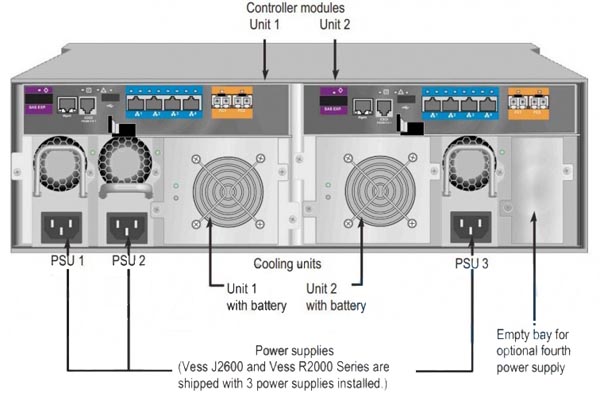

Vess R2600 Rear View
System Models Vess R2600iS/R2600iD Vess R2600fiS/R2600fiD Vess R2600ciS/R2600ciD Vess R2600xiS/R2600xiD
System and Controller Features
Form Factor 3U 3U 3U 3U
Drive Support 16 Drives (3.5")
SAS/SATA2 (6Gb/s or 3Gb/s), NCQ, TCQ
# of Controllers Single/Dual (64bit 6-core @ 1.1GHz)
Host Connectivity per Ctrl. 4x 1Gb iSCSI 2x 8Gb FC
4x 1Gb iSCSI
2x 10Gb iSCSI
4x 1Gb iSCSI
2x 10Gb iSCSI (SFP+)7
4x 1Gb iSCSI
Scalability Up to 112 drives via cascading Vess J2000 series
Data Cache 2GB standard per controller (max. 16GB)
NAS Features2
Supported Network Protocols CIFS (MAC, Windows), NFS (Linux/Unix), AppleTalk (MAC), FTP, WebDAV
Data Services Backup Server, Share Disk Clone, Remote Replication, Online Recovery, File Backup/Restore
Max. Share Disk 256
Share Disk Size/Memory 8TB/2GB, 16TB/4GB, 32TB/8GB, 100TB/16GB
Concurrent Sessions/Memory 64/2GB, 256/4GB, 512/8GB, 1024/16GB
Max. Account/Memory 1k/2GB, 2k/4GB, 5k/8GB, 10k/16GB
Supported Domain Microsoft ADS, LDAP
Max. Domain Account 50k
Share Disk Supports Permission Management, Quota Management, Online Expansion
Operational Features
RAID Levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Supported OS Windows 2003, 2008/2008R2, 2012/2012R23
RedHat Linux, SuSE Linux, Ubuntu, CentOS, VMWare ESXi 5.x, Citrix XenServer, Apple OS X4
Data Protection Features
  • Predictive Data Migration (PDM)
  • Support Volume Copy
  • Zero Penalty Cache Mirroring
  • PerfectRebuild - Reduced Rebuild Time
  • Hard Disk Cache Protection4
  • Asymmetric LUN Unit Access (ALUA)
  • PerfectFlash -Non-Disruptive Image Update
  • Advanced Battery Flash backup
Green Features
  • Compact and Lightweight System Design
  • Efficient 80PLUS Certified Power Supplies
  • Embedded Power Consumption Module
  • Full Levels of Intelligent Power Management MAID 2.0
  • Energy Savings on Power Scheduling
System Information
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 4A (100V); 2A (240V)
Power Supply Three redundant 250W (Up to Four)
90-264V full-ranging w/PFC, Hot swappable N+1 Design
FAN Hot swappable redundant design with battery backup module
Temperature 5° ~ 40°C5 (-40° ~ 60°C non operational)
Relative Humidity 10% to 80% non-condensing
Dimensions (H x W x D) 131 x 447 x 507 mm
5.1 x 17.6 x 20 in
Weight 20.1 kg (44.3 lbs) w/o drives
31.3 kg (69 lbs) w/ drives
Warranty and Support
Warranty 3 years limited warranty6
Supported Hardware Options Flash Module, 8Gb SFP Optical Transceiver, 10GBase SFP+ Optical Transceiver, SAS Cable, 3G SATA AA-Mux Adapter, 6G SATA BlackJack Adapter
110G iSCSI model available in Q3, 2013
2Additional AA-Mux adapter is required when use with SATA 3G drive, while SATA 6G drive requires BlackJack adapter
3Microsoft WHQL for Windows Server 2003, 2008 and 2012
4Feature available in the Service Release 3
5Operational Temperature between 5° ~ 35°C if BBU installed or use 15K-RPM SAS HDDs
6BBU is covered by one year limited warranty
78Gb SFP Optical Transceiver and 10Gb SFP+ Optical Transceiver are purchased separately

Views:

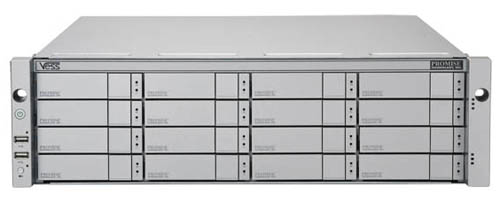

Front View
Front View

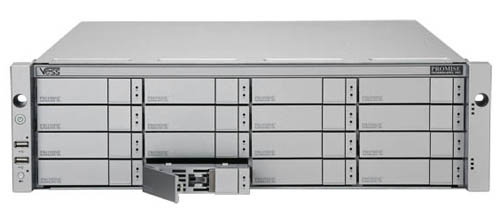

Drive Pull-Out View
Drive Pull-Out View

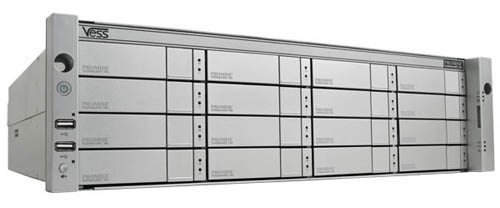

Left Angle View
Left Angle View

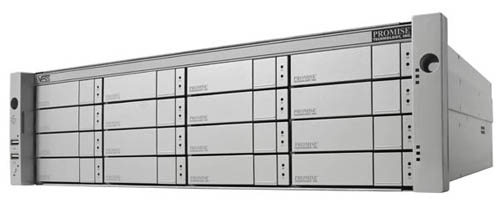

Right Angle View
Right Angle View

Videos:



Documentation:

Download the PROMISE Vess R2000 Series Datasheet (PDF).

Pricing Notes:

VessRAID R2000 Series includes: 3U Enclosure Unit w/ Drive Carrier, RJ11-to-DB9 Serial Data Cable, 3 Power Cords, Quick Start Guide, HDD Screws, Product CD, Sliding Rails.

VessRAID R2000 Series - 1G iSCSI RAID (No Drives)
VessRAID R2600 3U/16-bay Four iSCSI 1Gbps ports Single-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600ZISUBA
Our Price: $3,599.00
VessRAID R2600 3U/16-bay Four iSCSI 1Gbps ports Dual-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600ZIDUBA
Our Price: $5,940.00
VessRAID R2000 Series - 1G/10G iSCSI RAID (No Drives)
VessRAID R2600 3U16 iSCSI10G(SFP+) x2 + iSCSI1Gx4 to 6Gb SAS/SATA, Three Redundant PSU, Single- Controller, Two Redundant Fans with one BBU.
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600XISABA
Our Price: $3,999.00
VessRAID R2600 3U16 iSCSI10G(SFP+) x2 + iSCSI1Gx4 to 6Gb SAS/SATA, Three Redundant PSU, Dual- Controller, Two Redundant Fans with BBUs.
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600XIDABA
Our Price: $5,999.00
VessRAID R2600 3U16 iSCSI10G(BASE-T) x2 + iSCSI1Gx4 to 6Gb SAS/SATA, Three Redundant PSU, Dual- Controller, Two Redundant Fans with BBUs.
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600TIDAAA
Our Price: $5,999.00
VessRAID R2600 3U16 iSCSI10G(BASE-T) x2 + iSCSI1Gx4 to 6Gb SAS/SATA, Three Redundant PSU, Single- Controller, Two Redundant Fans with one BBU.
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600TISABA
Our Price: $3,999.00
VessRAID R2000 Series - Fibre Channel + iSCSI Combo (No Drives)
VessRAID R2600 3U/16-bay Two 8Gbps Fibre Channels and Four iSCSI 1Gbps ports Single-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600FISUBA
Our Price: $4,199.00
VessRAID R2600 3U/16-bay Two 8Gbps Fibre Channels and Four iSCSI 1Gbps ports Dual-Controller RAID Subsystem (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VR2600FIDUBA
Our Price: $6,699.00
Vess R2000 Series 24x7, NBD and Extended Warranty Service Options
2-Year Ext Extends 24x7 Support by 2YRS USA.Canada for VessR2000 RAID Head with & w/out Drives
#VR2KSE2YRAA
Our Price: $599.00
3 Year PROMISE ServicePlus-NBD Service for USA.Canada for Vess2000 Series RAID Head with & w/out Drives
#VR2KSPNBDAA
Our Price: $799.00
3 Year PROMISE 24x7 Support for USA.Canada for Vess2000 Series RAID Head with & w/out Drives
#VR2KSE3YRAA
Our Price: $899.00
3-Year PROMISE ServicePlus-NBD (includes 24x7 phone & web Support) Service for Vess2000 Series RAID Head with and w/out Drives
#VR2KSE3YRAB
Our Price: $1,599.00
3-Year PROMISE ServicePlus-NBD Service for USA.Canada for Vess J2000 Series JBOD with & w/out Drives
#VR2KEW2YRAA
Our Price: $1,799.00
2 Year Extends PROMISE ServicePlus-NBD Service for Vess2000 Series RAID Head with & w/out Drives
#VR2KSENBDAZ
Our Price: $2,599.00
2 Year Extends PROMISE ServicePlus-NBD (includes 24x7 phone & web Support) Service for Vess2000 Series RAID Head with and w/out Drives
#VR2KSE2YRAB
Our Price: $3,199.00
Vess R2000/J2000 Series Hard Drive Modules Options - Support and Warranty are based on the Vess R2000 Enclosure
2TB SAS Hard Drive with Drive Carrier 1 pack
#VR2KDM1P2TSA
Our Price: $499.00
2TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P2TSA
Our Price: $1,519.00
3TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P3TSA
Our Price: $739.00
3TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P3TSA
Our Price: $2,279.00
4TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P4TSA
Our Price: $899.00
4TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P4TSA
Our Price: $2,999.00
6TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P6TSA
Our Price: $1,299.00
6TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P6TSA
Our Price: $3,599.00
8TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P8TSA
Our Price: $1,799.00
8TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P8TSA
Our Price: $5,029.00
