PROMISE Vess R2000 PRO Series
Cost Effective Storage for Multi-User Rich Media Compressed Workflows


PROMISE Vess R2000 PRO Series

PROMISE Products
VessRAID R2000 PRO Series
R2600tiD PRO, 3U16 Dual- Controller NAS, 10G(BASE-T) x2 + iSCSI1Gx4 Per Ctrl to 6Gb SAS/SATA
Included 3-year 24x7 support with next business day PSP warranty
#VR2KCPTIDAGE
Our Price: $11,999.00
R2600xiD PRO, 3U16 Dual- Controller NAS, 10G(SFP+) x2 + iSCSI1Gx4 Per Ctrl to 6Gb SAS/SATA
Included 3-year 24x7 support with next business day PSP warranty
#VR2KCPXIDAGE
Our Price: $11,999.00
R2600tiD PRO, 3U16 Dual- Controller NAS, 10G(BASE-T) x2 + iSCSI1Gx4 Per Ctrl to 6Gb SAS/SATA
Included 3-year 24x7 support with next business day PSP warranty
#VR2KCPTIDAOE
Our Price: $17,999.00
VessRAID R2600xiD PRO, 3U16 Dual- Controller NAS, 10G(SFP+) x2 + iSCSI1Gx4 Per Ctrl to 6Gb SAS/SATA
Included 3-year 24x7 support with next business day PSP warranty
#VR2KCPXIDAOE
Our Price: $17,999.00

Click here to jump to more pricing!

Overview:

VessVess R2600 PRO is a fast, reliable and cost effective storage solution for multi-user rich media compressed workflows. Delivering multi-user scale up capability and fast NAS connectivity via dual active 10Gbit Ethernet controllers, Vess R2600 PRO is ideal for compressed workflows using popular non-linear editors such as Adobe Premiere Pro CC and Apple Final Cut Pro X. Vess R2600 PRO is optimized for end-to-end workflows, making it ideal for mid-sized businesses requiring a rich media NAS solution that delivers enterprise RAID reliability and performance, no matter whether they are ingesting, editing, delivering or archiving content.

Fast and reliable NAS for rich media applications

Delivering multi-user scale up capability and fast NAS connectivity via dual active 10 Gb Ethernet controllers, Vess R2600 PRO is ideal for compressed workflows using popular non-linear editing programs like Adobe Premiere and Final Cut Pro. Vess R2600 PRO is optimized for end-to-end workflows, making it ideal for mid-sized businesses requiring a rich media NAS solution that delivers enterprise RAID reliability and performance, whether ingesting, editing, delivering or archiving content.

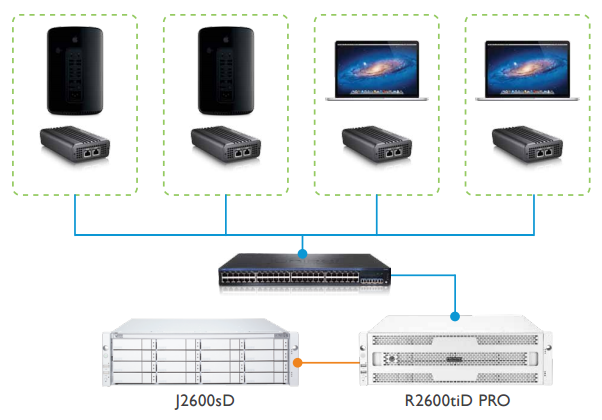

Optimized for audio and video

As the use of video continues to grow, today’s data center must evolve to handle these specialized files. IT managers need a way to not only manage this data over time, but effectively allow users to access and distribute. The Vess R2600 PRO is the perfect fit as an ideal content distribution solution for many small unstructured data media files.

Optimized for audio and video

Effortless rich media streaming

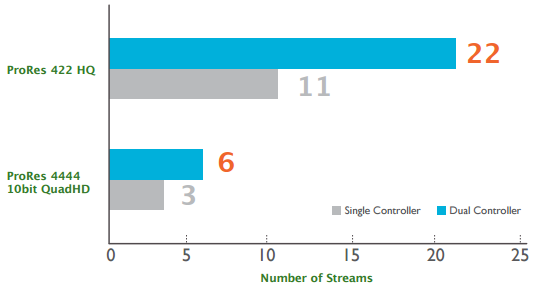

Vess R2600 PRO is an ideal file-sharing NAS solution, perfect for working on real time compressed video workflows using Final Cut Pro and Adobe Premiere Pro. Vess R2600 PRO can support up to 22 ProRes streams (ProRes 422 HQ [1080 @29.97fps]) and can do 6 streams of 4K ProRes (PreRes4444 10bit QuadHD [3840x2160 @23.98fps]).

Effortless rich media streaming

NOTE:

  • Vess R2600 PRO video performance playback test results are provided as a test-lab result with Apple Final Cut Pro X software performed by PROMISE. The model used was a 10Gb storage system with 16GB memory per controller and fully loaded HGST hard disk drives at RAID5 configuration. For more audio and video loads streaming test configuration, please visit our website.
  • iSCSI is not used in performance test.

Features and Benefits:

VMware Ready  Citrix  Windows Server 2012

System Highlights

  • High availability dual controller design with 1Gbps and 10Gbps host connect ports
  • Offers Ethernet based client OS support for Mac, Windows and Linux
  • Ideal for rich media IT management or compressed video workflows for post production applications
  • Perfect for end- to-end compressed workflows ex. ingest, edit, deliver or archive content
  • Scale up to 112 hard disk drives via Vess J2000 series expansion units
  • Supports NFS, CIFS/SMB, AFP, FTP, WebDAV, iSCSI protocols
  • Features replication and backup; supports Active Directory

Specifications:


System Models Vess R2600ti PRO Vess R2600xi PRO
Product Category NAS/IP SAN Storage NAS/IP SAN Storage
Availability Released Released
Form Factor 3U16, 19 rackmount 3U16, 19 rackmount
Controller R2600tiS PRO (Single)
R2600tiD PRO (Dual)
R2600xiS PRO (Single)
R2600xiD PRO (Dual)
Drive Support SAS/SATA 6Gb/s SAS/SATA 6Gb/s
Cache Memory per Controller 16GB 16GB
Max. # of HDDs Supported 112 112
Host Connect Interface (per controller) 2x 10Gb (BASE-T)
4x 1Gb
2x 10Gb (BASE-T)
4x 1Gb
Protocol Support NFS, CIFS/SMB, AFP, FTP, WebDAV, iSCSI
RAID Levels 0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Power Supply 500W (Three redundant 250W N+1 design)
Dimensions (HxWxD) 131 x 447 x 507 mm (5.1 x 17.6 x 20 in)
Weight 31.3 kg (69 lbs) w/ drives
Warranty 3 years standard warranty 24 x 7 web and phone support with PROMISE Service PLUS - onsite replacement included. Optional support uplifts available: 4-hour PSP upgrade
Support Support 24 x 7 web and phone support
Support website - drivers, firmware, knowledge base, and downloadable compatibility reports
Online product registration and seamless license activation

Views:

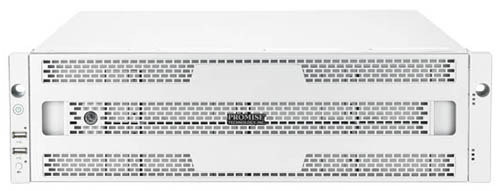

Front View
Front View

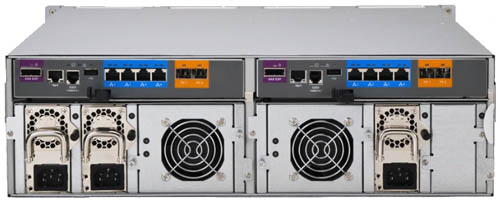

Rear View
Rear View

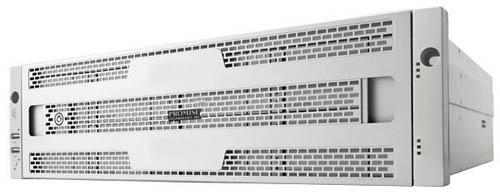

Left Angle View
Left Angle View

Videos:



Documentation:

Download the PROMISE Vess R2000 PRO Series Datasheet (PDF).

Pricing Notes:

VessRAID R2000 PRO Series includes: 3U Enclosure Unit w/ Drive Carrier, RJ11-to-DB9 Serial Data Cable, 3 Power Cords, Quick Start Guide, HDD Screws, Product CD, Sliding Rails.
