PROMISE Vess J2000 Series
JBOD Storage Expansion Platform


PROMISE Vess J2000 Series

PROMISE Products Vess J2000
Vess J2000 Series (No Drives)
Vess J2600 3U/16-bay 6Gb SAS Single IO Modules JBOD Expansion Chassis (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VJ2600SZSUBA
Our Price: $2,399.00
Vess J2600 3U/16-bay 6Gb SAS Dual IO Modules JBOD Expansion Chassis (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VJ2600SZDUBA
Our Price: $2,899.00

Click here to jump to more pricing!

Overview:

VessThe Vess J2000 series is a robust storage expansion platform that serves as a building block to provide high-availability and flexibility in a cost effective package that is simple to administer and meets the demands of your application.

Cost-effective Storage Expansion Platform

As the demands for capacity expansion explode for IT applications and video surveillance, it is imperative that IT administrators find a cost-effective way to meet performance and expansion goals. The Vess J2000 series is a robust storage expansion platform that serves as a building block to provide high-availability and flexibility in a cost effective package that is simple to administer and meets the demands of your application. The 3U-16 bay Vess models are fully expandable to meet your needs today and in the future. Up to six additional expansion chassis may be added to each Vess R2000 RAID subsystem, providing expansion for up to 112 drives.

Redundant Power Supplies

The Vess J2000 series are equipped with redundant power supplies. The advantage of N+1 power supplies is that should one fail, the other continues to power the subsystem until the faulty one can be replaced. Additionally, the power supplies are hot-swappable, which enables you to leave the subsystem running when you replace the one that failed.

User Friendly Design

Simplicity and ease of use are absolutely crucial for SMBs. The Vess J2000’s user-friendly design features the power button on the front panel. The simple design ensures the user doesn’t have to reach behind the system and unplug the power cord or access the management GUI console to turn off the machine; simply turn the machine on and off through the front panel.

Reduce Power and Cooling Costs

The Vess J2000 Series utilizes environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Featuring 80Plus Bronze Certified power supplies delivering up to 85% power efficiency, the Vess J2000 Series improves total cost of ownership by conserving power, reducing heat output, and improving cooling costs.

Features:

System Highlights

  • 16 hot-swappable drive bays in a robust 3U chassis
  • High availability dual controller design
  • Expand Vess R2000 RAID subsystems up to 112 disk drives with Vess J2000 expansion units
  • Industry leading performance and reliability at an excellent price
  • Supports 6Gbps & 3Gbps SAS & SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • 3U-16 form factor featuring hot-swappable drive bays
  • Reliable N+1 redundant power supplies
  • Energy efficient system reduces power and cooling costs
  • Redundant power supply unit with 80PLUS certified
  • SES-2 compliant enclosure management
  • User friendly power button design
  • Wake-on-SAS support (WOS)

Specifications:

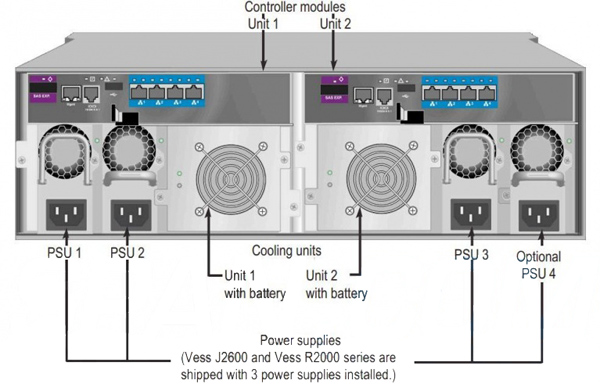

Vess J2600 Rear View
System Models Vess J2600sS/J2600sD
System and Controller Features
Form Factor 3U
Drive Support 16 Drives (3.5")
SAS/SATA1 (6Gb/s or 3Gb/s), NCQ, TCQ
# of Controllers Single/Dual
Host Connectivity per Ctrl. Dual, IN/OUT 6G SAS-wide (x4) port over SFF-8088
Host Options
SAS HBA Follow Vess J2600s compatibility list
RAID Storage Subsystem Vess R2000 Series
SAS Features
Management Function
  • Full SAS domain Topology Management
  • SAS Management Protocol
  • In-band Access to Expander and PHY
  • Statistic Counters and Performance Monitors
  • SES Enclosure Management
  • SCSI SES Command Set over Virtual SSP Device
System Management
Management Interfaces LED Status Indicator
In-band SES Enclosure Management; CLI via RJ-11 serial port
Management Protocols SES over in-band SAS
System Information
AC Input 100 ~ 240 VAC, 60 ~ 50Hz
Current (Maximum) 4A (100V); 2A (240V)
Power Supply Three redundant 250W (Up to Four)
90-264V full-ranging w/PFC, Hot swappable N+1 Design
FAN Hot swappable redundant design with battery backup module
Temperature 5° ~ 40°C5 (-40° ~ 60°C non operational)
Relative Humidity 10% to 80% non-condensing
Dimensions (H x W x D) 131 x 447 x 507 mm
5.1 x 17.6 x 20 in
Weight 15 kg (33.1 lbs) w/o drives
26.2 kg (57.8 lbs) w/ drives
Warranty and Support
Warranty 3 years limited warranty
Supported Hardware Options SAS Cable, 3G SATA AA-Mux Adapter, 6G SATA BlackJack Adapter
1Additional AA-Mux adapter is required when use with SATA 3G drive, while SATA 6G drive requires BlackJack adapter

Views:

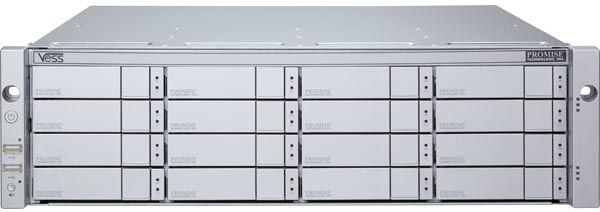

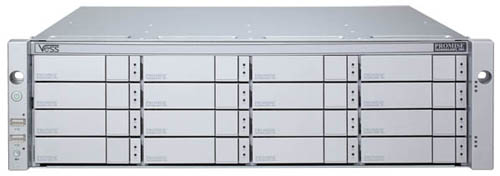

Front View
Front View

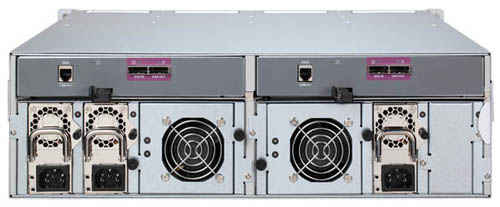

Rear View
Rear View

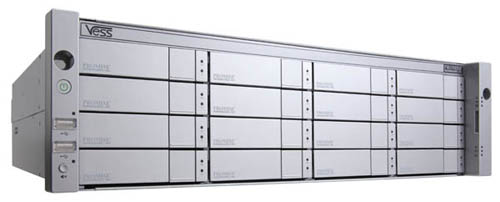

Left Angle View
Left Angle View

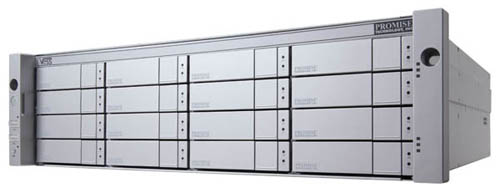

Right Angle View
Right Angle View

Documentation:

Download the PROMISE Vess J2000 Series Datasheet (PDF).

Pricing Notes:

VessJBOD 1000 Series includes: Enclosure, 2-US power cords, 8-2TB Drives, Quick Start Guide, Product CD, slide mount assembly and HDD screws.

Vess J2000 Series (No Drives)
Vess J2600 3U/16-bay 6Gb SAS Single IO Modules JBOD Expansion Chassis (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VJ2600SZSUBA
Our Price: $2,399.00
Vess J2600 3U/16-bay 6Gb SAS Dual IO Modules JBOD Expansion Chassis (No Drives)
Included 3-year 9x5 Support with Advanced Part Replacement
#VJ2600SZDUBA
Our Price: $2,899.00
Vess R2000/J2000 Series Hard Drive Modules Options - Support and Warranty are based on the Vess R2000 Enclosure
2TB SAS Hard Drive with Drive Carrier 1 pack
#VR2KDM1P2TSA
Our Price: $499.00
2TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P2TSA
Our Price: $1,519.00
3TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P3TSA
Our Price: $739.00
3TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P3TSA
Our Price: $2,279.00
4TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P4TSA
Our Price: $899.00
4TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P4TSA
Our Price: $2,999.00
6TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P6TSA
Our Price: $1,299.00
6TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P6TSA
Our Price: $3,599.00
8TB NL SAS HDD with Vess R2000 drive carrier 1 pack
#VR2KDM1P8TSA
Our Price: $1,799.00
8TB NL SAS HDD with Vess R2000 drive carrier 4 pack
#VR2KDM4P8TSA
Our Price: $5,029.00
Vess J2000 Series Extended Warranty Service Options
2-Year Ext Extends 24x7 Support by 2YRS USA.Canada for Vess J2000 JBOD with & w/out Drives
#VJ2KSE2YRAA
Our Price: $599.00
3-Year PROMISE ServicePlus-NBD Service for USA.Canada for Vess J2000 Series JBOD with & w/out Drives
#VJ2KSPNBDAA
Our Price: $799.00
3 Year PROMISE 24x7 Support for USA.Canada for Vess J2000 Series JBOD with & w/out Drives
#VJ2KSE3YRAA
Our Price: $899.00
3-Year PROMISE ServicePlus-NBD (includes 24x7 phone & web Support) Service for Vess2000 Series RAID Head with and w/out Drives
#VJ2KSE3YRAB
Our Price: $1,599.00
2-Year Ext Warranty.Extends standard warranty by 2YRS USA.Canada for Vess J2000 JBOD with & w/out Drives
#VJ2KEW2YRAA
Our Price: $1,799.00
2 Year Extends PROMISE ServicePlus-NBD Service for Vess J2000 Series JBOD with & w/out Drives
#VJ2KSENBDAZ
Our Price: $2,499.00
2 Year Extends PROMISE ServicePlus-NBD (includes 24x7 phone & web Support) Service for Vess J2000 Series JBOD with and w/out Drives
#VJ2KSE2YRAB
Our Price: $3,199.00
