PROMISE VTrak J830s Series
Robust, high-availability 6G SAS JBOD Storage Expansion Platform with Single or Dual I/O modules

PROMISE VTrak J630 Series

PROMISE Products
VTrak J830s Series (No Drives)
VTrak J830SSNX x30 Series 4U/24-Bay 6G SAS Single-controller Expansion Chassis
#J830SSNX
Our Price: $5,439.00
VTrak J830SDNX x30 Series 4U/24-Bay 6G SAS Dual-controller Expansion Chassis
#J830SDNX
Our Price: $6,519.00

Click here to jump to more pricing!

Overview:

VTrakStay ahead of the capacity curve by using VTrak Jx30s 6G SAS expansion chassis family to easily grow capacity. Using 6G SAS architecture, a VTrak Jx30s expansion chassis paves the way to support the flood of unstructured data now flowing across infrastructures today. VTrak Jx30s is available in 3U, 4U and ultra-dense 4U solutions.

VTrak J-Class is used in some of the world’s largest enterprise computing and backup environments. It also truly shines in video creation environments by delivering consistent low latency performance without frame dropping. When used in film and video postproduction, users can scale performance and capacity to support large scale, uncompressed HD workflows.

VTrak J-Class

VTrak JBOD expansion units for Backup, Archiving, and Data Center

  • The VTrak Jx30 series 6G SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality.
  • The Jx30 series offers the full redundancy that is expected of an enterprise solution.
  • Designed with high-availability in mind, the VTrak x30 series expansion chassis family supports dual active-active JBOD I/O modules allowing for redundant data paths to ensure data availability while dual power supplies and cooling fans are in place to minimize downtime and any disruption to business continuity.
  • The VTrak Jx30 expansion chassis is available in a 3U/16-bay, 4U/24-bay or an ultra-dense 4U/60-bay.
  • Delivered in a Storage Bridge Bay (SBB) 2.0 compliant package, the Jx30 series offers the full redundancy that is expected of an enterprise solution.

VTrak Jx30 Advantages

  • 3U-16 or 4U-24 form factor featuring hot- swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS & SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Up to 85-90% power efficiency
  • Up to four 6G mini SAS (4x) ports, two ports per I/O module
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS & SATA drives, HBAs and RAID controllers

Reliable enterprise-level storage architecture

The VTrak Jx30 series 6G SAS subsystems delivers a high performance SAS solution with advanced enterprise level reliability and functionality. The Jx30 series offers full redundancy required for a hardened enterprise solution. Designed with high-availability in mind, the VTrak x30 series expansion chassis supports dual active-active JBOD I/O modules, allowing for redundant data paths to ensure data availability. Dual power supplies and cooling fans are in place to minimize downtime and disruption to business continuity. The VTrak Jx30 expansion chassis is available in a 3U/16-bay, 4U/24-bay or an ultra-dense 4U/60-bay.

6G SAS serformance

The VTrak Jx30 series allows storage applications to access their data at blistering speeds using multi-lane 6G SAS architectures. The 6G SAS connectivity paves the way for large multi-lane bandwidth to support the flood of unstructured data now flowing across networks today. Fully backward compatible with 3G SAS/SATA devices, users have the ability to deploy 3G and 6G SAS/SATA hard drives and solid-state devices (SSD) in the Jx30 series.

High-efficiency design

VTrak products utilize environmentally-friendly production methods and materials as well as a high-efficiency design that saves energy. Efficient power supplies provide up to 90% power efficiency that enables the VTrak Jx30 series to improve total cost of ownership by conserving power, reducing heat output and improving cooling costs. The internal 6G SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Outstanding service and support

Every VTrak J-Class is backed by the Promise three year limited warranty, with 24/7 (Americas & EMEA) telephone and email support. In addition to our industry leading warranty, Promise offers extended warranty and on-site parts replacement options (with service levels) and response times as low as 4 hours.

Features and Benefits:

System Highlights

  • 4U/24 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers

Benefits

  • Fast - Optimized for high performance, high bandwidth big data applications requiring large block sequential IOPs.
  • Simple - Modular RAID storage subsystem with hot-swappable components.
  • Scalable - RAID storage subsystem that scales with 9 additional expansion units.
  • Reliable - VTrak x30 Series is the only Apple-qualified enterprise SAN subsystem, with high-availability dual controllers, hot-swappable modular design, and included 3-Year onsite parts replacement warranty.
  • Cost-Efficient - “Pay as you grow” with 85-90% rack space and energy savings compared to non-integrated multi-vendor solutions.

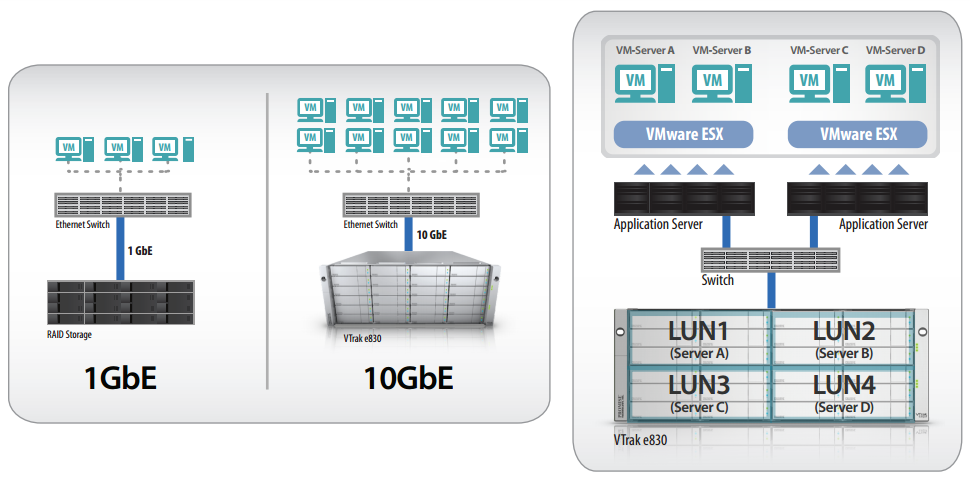

Deployment:

Virtualization

Cloud computing infrastructure requires flexibility and storage management efficiency. Virtualization enables dynamic storage allocations such that physical layers of storage can be utilized most effectively. As virtual machines continue to increase with more virtualized deployments, fibre channel performance optimized where critical complimented with simpler and cost effective 10GbE iSCSI infrastructures will accelerate meeting the bandwidth and storage requirements for the cloud and datacenter.

Virtualization

Specifications:


VTrak Jx30 Series Specifications
JBOD I/O Module Features 3U-16 Bay 4U-24 Bay
Model Numbers - Single I/O VTJ630sS VTJ830sS
Model Numbers - Dual I/O VTJ630sD VTJ830sD
Drive Support Up to sixteen 3.5/2.5" HDDs or SSDs Up to twenty-four 3.5/2.5" HDDs or SSDs
SAS 6 Gb/s, 3Gb/s, SATA 6G/s, 3Gb/s and 1.5Gb/s
Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
SAS Features
  ANSI T10 SAS 2.0 and 2.1 Compliant
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
System Management
Management Interfaces LED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management Protocols SES over in-band SAS
Mechanical Specification
Voltage 100-240 Vac Auto-Ranging
Current (Maximum) 15 A @ 110 Vac; 6 A @ 240 Vac
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load)
Temperature Range Operational: 5° to 40°C
Non-Operational: -40° to 60°C
Humidity Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical)
65 dB (Maximum)
Shock Operational: 5G, 11 mS duration
Non-Operational: 10G, 11mS duration
Vibration Operational: 0.3G, 5 to 500 Hz
Non-Operational:: 1G, 5 to 500 Hz
Safety CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark
Environmental Standards RoHS, GreenPC, WEEE
  3U-16 Bay 4U-24 Bay
Power Supply Dual 580W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design Dual 750W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Dimensions (H x W x D) 13.1 x 44.7 x 50.7 cm
5.2 x 17.6 x 19.96 in
17.4 x 44.7 x 50.7 cm
6.9 x 17.6 x 19.96 in
Weight 24 kg / 52.9 lbs (w/o drives) 26 kg / 57.3 lbs (w/o drives)
Warranty and Support
Warranty Three year complete system limited warranty with advanced parts replacement; optional extended warranty; optional onsite parts replacement program
Support 24/7 email and phone support (English only); 24/7 access to PROMISE support site-drivers, firmware and compatibility lists

Views:

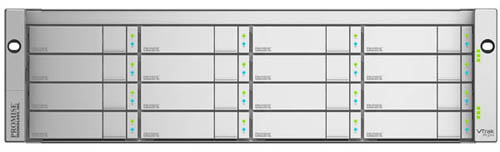

VTrak J630 Series Front View
VTrak J630 Series Front View

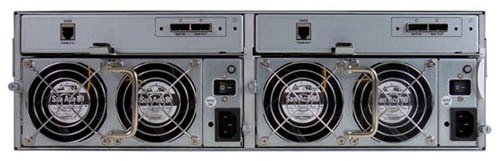

VTrak J630 Series Rear View
VTrak J630 Series Rear View

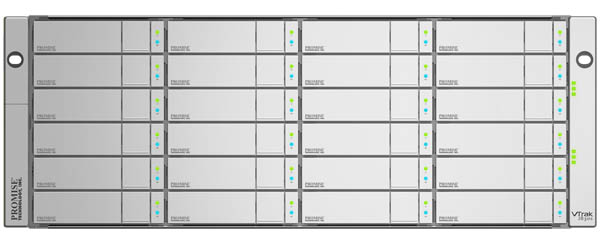

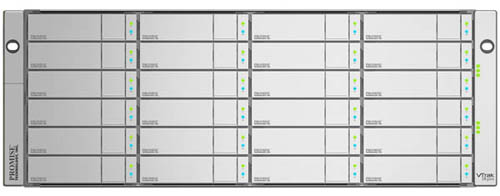

VTrak J830 Series Front View
VTrak J830 Series Front View

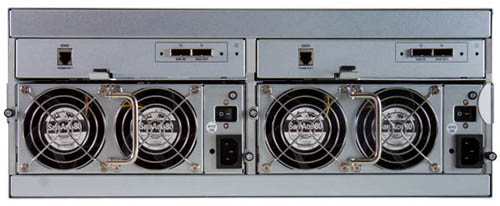

VTrak J830 Series Rear View
VTrak J830 Series Rear View

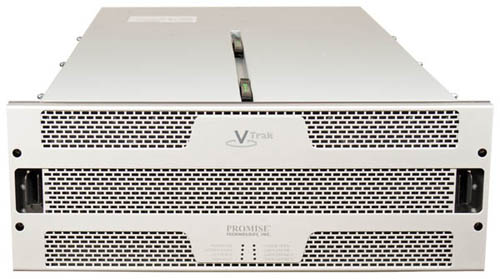

VTrak J930 Series Front View
VTrak J930 Series Front View

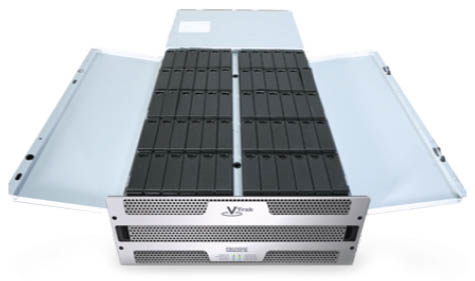

VTrak J930 Series Top Open View
VTrak J930 Series Top Open View



Documentation:

Download the PROMISE VTrak E-Class & J-Class Datasheet (PDF).

Pricing Notes:

VTrak Jx30 Series includes: Enclosure, 2 Power Cords for North America, Quick Start Guide, Product CD, Rack Mount Kit and HDD screws, 2x 6G SAS cables
