PROMISE VTrak J5300s
12 Bay VTrak JBOD Expansion Units for Cloud and Enterprise Data Centers


PROMISE VTrak J5300s

PROMISE Products
VTrak J5300 Series SINGLE 12G Expansion Chassis
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 4TB 7200 rpm 12Gb SAS HDD
#J5300SSQS4
Our Price: $11,725.00
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 6TB 7200 rpm 12Gb SAS HDD
#J5300SSQS6
Our Price: $15,999.00
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 8TB 7200 rpm 12Gb SAS HDD
#J5300SSQS8
Our Price: $20,054.00
VTrak J5300 Series DUAL 12G Expansion Chassis
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 4TB 7200 rpm 12Gb SAS HDD
#J5300SDQS4
Our Price: $12,492.00
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 6TB 7200 rpm 12Gb SAS HDD
#J5300SDQS6
Our Price: $16,656.00
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 8TB 7200 rpm 12Gb SAS HDD
#J5300SDQS8
Our Price: $20,711.00

Click here to jump to more pricing!

Overview:

VTrakThe VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.

Supports hybrid HDD/SSD arrays

Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allows for transparent access to each drive, enabling full utilization of the power management features built into modern hard drives.

Increased performance to optimize datacenters

The VTrak J5000 Series moves data at incredible speeds, allowing you to optimize your datacenter. Administrators can deploy with the fastest SAS bus speed with 12 Gb/s HDDs or SSDs. These systems are fully backward compatible with 6 Gb/s SAS/SATA drives, yet are still able to optimize the full port bandwidth of 12 Gb/s to the host. Flash arrays allow you to optimize speed for key enterprise apps that require utmost performance. The internal 12 Gb/s SAS expander-based architecture allows for data to transfer faster with greater redundancy protection.

Features and Benefits:

System Highlights

  • VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
  • 12 hot-swappable 3.5” (LFF) drive bays in a robust 2U chassis
  • Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
  • Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
  • Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management

Specifications:


VTrak J5300s Specifications
Form Factor 2U/12 Bay
Drive Support
  • Up to 12 3.5” drives
  • 3/6/12 Gb/s SAS, 3/6 Gb/s SATA HDD and SSD
  • Supports any mix of SAS and SATA drives simultaneously in the same enclosure
External I/O Ports (per controller) Each SBB 2.0 I/O module has four SAS ports using industrial standard Mini SAS HD connectors (SFF-8644), one port supports Wake-on SAS feature for upstream and other ports can be either upstream or downstream for cascading additional JBODs.
Expander Management Features
  • Self-configuring expander supports full SAS domain topology management
  • T-10 based zoning support is applicable for non-VTrak E-Class configurations
  • End Device Frame Buffering (aggregate bandwidth over multiple slow devices e.g. 6 Gb/s and 3 Gb/s)
  • Smart cable support to detect cable type and tune PHY automatically for maximum reliability
  • SMP – SAS Management Protocol
  • In-band access to Expander and PHY information
  • Statistic counters and performance monitors
  • SES EM– SES Enclosure Management (ANSI T10 SES 2 Compliant)
  • SCSI SES command set over virtual SSP device
  • Wake-on-SAS support, Wake-on-LAN support
Management Interfaces
  • LED status indicator support for drives, FRU and enclosure environmentals
  • In--band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
  • Full subsystem management CLI through out--of--band RS232 serial port
Enclosure Protocol and Management
  • ANSI T10 SES 2, SMP (SES over in-band SAS)
  • Persistence Error Logging with NVRAM, Extensive Service Report File, VPD (Vital Product Data) on Chassis and FRUs
Voltage 100-240 Vac Auto-Ranging
Current (Maximum) 9A @ 100 Vac; 4A @ 240 Vac
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range
Temperature Range Operational: 5° to 40°C,
Non-Operational: -40° to 60°C
Humidity Operational: 10% to 90% (Non-Condensing),
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical), 65 dB (Maximum)
Shock Operational: 5G, 11ms duration,
Non-Operational: 10G, 11ms duration
Vibration Operational: 0.3G, 5 to 500 Hz,
Non-Operational: 1G, 5 to 500 Hz
Safety and EMI Certification EMC Class A: CE, FCC, VCCI, BSMI, RCM and KC
Safety: IEEE CB, UL/cUL and TUV
Environment Standards RoHS, GreenPC, WEEE
Power Supply Efficient 80PLUS GOLD Certified redundant PSU
Dimensions 88mm x 446.7mm x 507mm (3.5” x 17.6” x 19.96”)
Weight 14.8Kg(32.6lbs) w/o drives
24.8Kg (54.7 lbs) w/ drives
Warranty 3-year full system limited warranty, optional extended warranty, onsite parts replacement program
Support 24/7 web and phone support, 24/7 access to PROMISE site Software, firmware, and compatibility list

Views:

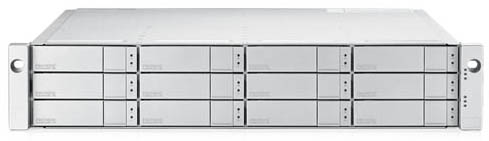

Front View
Front View

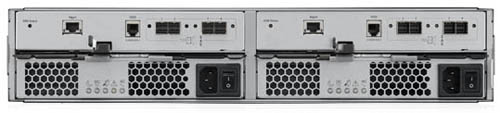

Rear View
Rear View

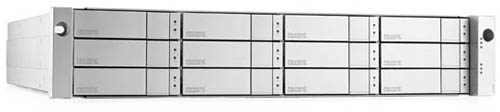

Left Angle View
Left Angle View

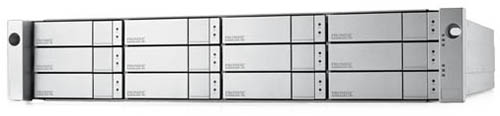

Right Angle View
Right Angle View

Videos:



Pricing Notes:

VTrak J5300 Series SINGLE 12G Expansion Chassis
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 4TB 7200 rpm 12Gb SAS HDD
#J5300SSQS4
Our Price: $11,725.00
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 6TB 7200 rpm 12Gb SAS HDD
#J5300SSQS6
Our Price: $15,999.00
2U/12-Bay 12G SAS Expansion subsystem Single IOM with 12 x 8TB 7200 rpm 12Gb SAS HDD
#J5300SSQS8
Our Price: $20,054.00
VTrak J5300 Series DUAL 12G Expansion Chassis
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 4TB 7200 rpm 12Gb SAS HDD
#J5300SDQS4
Our Price: $12,492.00
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 6TB 7200 rpm 12Gb SAS HDD
#J5300SDQS6
Our Price: $16,656.00
2U/12-Bay 12G SAS Expansion subsystem Dual IOM with 12 x 8TB 7200 rpm 12Gb SAS HDD
#J5300SDQS8
Our Price: $20,711.00
J5300 RAID and Expansion Series Diskless Chassis Solutions
2U/12-Bay 12G SAS Single IOM Expansion Chassis
#J5300SSNX
Our Price: $4,382.00
2U/12-Bay 12G SAS Dual IOM Expansion Chassis
#J5300SDNX
Our Price: $5,149.00
Hard Drive Modules with PROMISE tech Support
Pre-tested and qualified 2TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A2
Our Price: $765.00
Pre-tested and qualified 4TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A4
Our Price: $1,423.00
Pre-tested and qualified 6TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A6
Our Price: $1,642.00
Pre-tested and qualified 8TB 7200-RPM dual-ported 12Gb SAS hard disk drive, pre-mounted in VTrak drive carrier (Single Pack)
#X50DVSS3A8
Our Price: $1,971.00
Hard Drive Modules with HDD Manufacture Support
2TB 12G SAS qualified VTrak bulk HDD with Direct MFR warranty only.4 pack
#VTX50HD4T2
Our Price: $1,149.00
4TB 12G SAS qualified VTrak bulk HDD with Direct MFR warranty only.4 pack
#VTX50HD4T4
Our Price: $1,905.00
6TB 12G SAS qualified VTrak bulk HDD with Direct MFR warranty only.4 pack
#VTX50HD4T6
Our Price: $3,034.00
8TB 12G SAS qualified VTrak bulk HDD with Direct MFR warranty only.4 pack
#VTX50HD4T8
Our Price: $3,900.00
Vtrak Accessories
585W Power Supply unit for J5300/J5320 or E5300/E5320 Subsystems
#X50PSU585
List Price: $799.00
Our Price: $680.00
BlackJack SAS to SATA Adapter on SFF Drive Carrier. Single pack
#X50BJCR2U
Our Price: $109.00
Universal Rail Kit for 3U and 4U Chassis
#VRRAIL3U
List Price: $99.00
Our Price: $72.00
Universal 2U Rail Kit
#VRRAIL2U
Our Price: $99.00
VTrak J5300/J5320 IOM and PSU Service Parts Kit
#X50SPAJB
List Price: $1,899.00
Our Price: $1,400.00
J5000 12G SAS Replacement IOM for J5000 Sereis JBOD Expansion Systems
#VTJ12GIOM
List Price: $1,169.00
Our Price: $863.00
BlackJack SAS to SATA Adapter. Single piece
#VRST6GBJ4P
Our Price: $109.00
