PROMISE VTrak Flash Storage Appliance
VTrak All Flash Storage Appliances


PROMISE VTrak All Flash Storage Appliances

PROMISE Products
VTrak E5x00 and J5x00 Series 1-pack SSD Modules with PROMISE Technology Support
1-Pack 480GB SSD SAS Drive Module for VTrak EFA5310/J5320
#SPEFA1DC1S
Our Price: $1,999.00
1-Pack 960GB SSD SAS Drive Module for VTrak EFA5310/J5320
#SPEFA1DC2S
Our Price: $2,999.00

Click here to jump to more pricing!

Overview:

Transform your business and reduce your infrastructure cost with enterprise storage designed for high performance, low latency, high bandwidth, non-stop availability, and enterprise resiliency.

Accelerate Your Business

VTrak All Flash Arrays are built from the ground up and configured to maximize performance. EFA5310 low latency dramatically lowers Server CPU I/O wait times which, results in 5 to 10x application acceleration. The array’s large I/O profile allows a user to achieve new levels of workload consolidation on the same platform.

Enterprise Class Storage

VTrak All Flash Arrays are optimized for high bandwidth and an extremely large data ingest rate. This makes it perfect storage platform for rich media, IT, backup, and running multiple mixed workloads. Non-disruptive firmware/software upgrades in EFA5310 provide non-stop system availability for enterprise applications.

Low Total Cost of Ownership

EFA5310 provides users affordable All Flash Arrays (AFA) with a low TCO, improved application support, seamless integration with their ecosystem, and simplified management. Reduction in CPU I/O wait time results in over 50% reduction in Server core and CPU core based software license requirements. On average users attain over a 90% decrease in power and cooling requirements.

Simplified Consumption Model

EFA5310’s all-inclusive pricing makes storage consumption simple with a predictable cost. By including hardware, software and 3 years* of Next Business Day service on the array, the EFA5310 offers an exceptional value compared to other vendors’ AFA pricing.

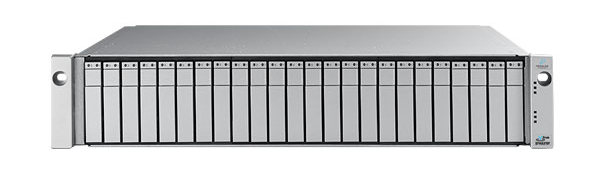

Promise EFA5310 Arrays

EFA comes in 1.9TB partially populated up to 92TB fully populated, with option of SAS or SATA SSD. Massive scaling capability, where users can add up to 9 expansion enclosures EFA5310 system.

Highlights

Performance & Scalability

  • Ultra-high performance for business critical applications
  • High-bandwidth - more than 12.8GB/s transfer rate
  • Low sub millisecond latency
  • Scalable up to 240 drives
  • 550K 4K IOPS with ~ 1ms

High Availability & Resiliency

  • Full redundant for non-stop mission critical applications
  • Active-Active Dual Controller with ALUA support for access flexibility
  • Non-disruptive firmware/software updates
  • Background data integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimizes maintenance
  • User data cache is protected during power outage

Power & Cooling

  • 80 PLUS GOLD certified power supply and Energy Star Ready
  • Only two Rack Units (2RU)

Enterprise Use Cases

  • 4K/8K Rich Media Workload
  • Transactional Workloads, Databases, OLTP, Analytics
  • Latency sensitive applications
  • Real-time Big Data Analytics
  • Virtualized Server and VDI
  • High Bandwidth applications
  • Backup and DR target

Features:

Performance & Scalability

  • High-bandwidth - more than 12.8GB/s transfer rate
  • Low sub-millisecond latency
  • Scalable up to 240 drives
  • 550K 4K IOPS with ~ 1ms

High Availability & Resiliency

  • Active-Active Dual Controller with ALUA support for access flexibility
  • Background data integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimizes maintenance

Specifications:

Specifications
Capacity 1.9TB partially populated up to 92TB
Drives Capacity 2.5” SAS or SATA SSD with capacity - 480G, 960GB, 1.92TB, 3.84TB
Capacity Expansion Online Capacity/Volume Expansion up-to 9 JBOD’s
Max LUNs 1024 per subsystem, 32 per array
Advanced Storage Features
  • Online Capacity Expansion
  • RAID Level Migration (RLM)
  • Asymmetric LUN Unit Access (ALUA)
  • LDAP for central user management
  • Advanced Cache Mirroring over PCIe Gen3
  • Drag-and-drop LUN Masking and Mapping
  • USB Service Log
  • Volume Copy
Protocol 16Gb Fibre Channel (backward comptatible with 4/8Gb) Host Connectivity
12Gb SAS back end for expansion
Connectivity 2 x 4 16Gb FC SFP ports 2 x 2 12Gb SAS std/Mini SAS (SFF-8644)
Management Ports 2 x 1 RJ45 1Gb Ethernet and RS232
IOPS 550,000 IOPS with sub millisecond latency
Bandwidth 12.8 GB/s
RAID Levels/Stripe 0, 1, 5, 6, 10, 50, 60; RAID Stripe Support 64K, 128K, 256K, 512K and 1MB
Hot Spares Global or dedicated with revertible option
Background Scrub
  • Media Patrol & Redundancy Check
  • Background Synchronization
  • Foreground Initialization
  • Partial Rebuild
  • Task scheduler for background activities
Perfect Data RAID
  • Predictive Data Migration (PDM)
  • Intelligent Bad Sector Remapping
  • NVRAM Error Logging
  • Drive Power Management (MAID)
  • Read/Write Check Table
  • SMART Error Handling and Write Hole Table
Supported OSs Windows Server 2008, 2012, OS X 10.x, RHEL 6.5 to 6.7, 7.2, SLES 11, 11 SP4, and 12 SP1
Certifications VMware ESXi 6.0, VEEAM Backup & Replica on 9.0, Citrix Server 7.0, Data Core SANSymphony 10.0 PSP6, Windows, Arcserve UDP v6.0.3792 Update 3 Build 776, XSAN 5, StorNext v5.3
Interface Web Based management using WebPAM PROe, CLI, SSH, SNMP
Power Voltage: 100--240 Vac Auto--Ranging Current: 9A @ 100 Vac; 4A @ 240 Vac
Power Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range, 80Plus Certified PSU
Temperature Range Operational: 5° to 35°C, Non-Operational: -40° to 60°C
Humidity Operational: 20% to 80%, Non--Operational: ~ 95% (Non-Condensing)
Noise Levels & Shock < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration
Vibration Operational: 0.2G, 5 to 500Hz (sine wave) ; 0.41G, 3-10-200-500Hz (Random) , Non-Operational: 1G, 5 to 500Hz (sine wave) ; 2.256G, 5-80-350-500Hz (Random)
Regulatory/Safety EMC Class A: CE, FCC, VCCI, BSMI, RCM Safety: IEEE CB, UL/cUL and TUV , RoHS, GreenPC, WEEE
Dimensions 2 Rack Unit, 88mm x 446.7mm x 420mm (3.5” x 17.6” x 16.5”)
Weight 16.2Kg(35.7 lbs.) w/o drives 20.5Kg (45.2 lbs.) w/ drives
Warranty 3-year full system limited warranty* including Promise PSP, optional extended warranty
Support 24/7 e-mail and phone support, 24/7 access to PROMISE site-drives and firmware

Documentation:

Download the PROMISE VTrak Flash Array Datasheet (PDF).

Pricing Notes:

PROMISE Products
VTrak E5x00 and J5x00 Series 1-pack SSD Modules with PROMISE Technology Support
1-Pack 480GB SSD SAS Drive Module for VTrak EFA5310/J5320
#SPEFA1DC1S
Our Price: $1,999.00
1-Pack 960GB SSD SAS Drive Module for VTrak EFA5310/J5320
#SPEFA1DC2S
Our Price: $2,999.00
1-Pack 1.92TB SSD SAS Drive Module for VTrak EFA5310/J5320
#SPEFA1DC3S
Our Price: $4,699.00
Pre-tested and qualified 1TB SSD SATA drive, pre-mounted in VTrak EFA5310 drive carrier (Single Pack), 0.2 DWPD
#SPEFA1DA1S
Our Price: $1,699.00
Pre-tested and qualified 2TB SSD SATA drive, pre-mounted in VTrak EFA5310 drive carrier (Single Pack), 0.2 DWPD
#SPEFA1DA2S
Our Price: $2,699.00
VTrak E5x00 and J5x00 Series 4-pack SSD Modules with Direct Manufacture Support
480GB SAS qualified VTrak EFA bulk SSD (3 DWPD) with Direct MFR warranty only.4 pack
#SPEFA1M4C1S
Our Price: $5,999.00
1TB SATA qualified VTrak EFA bulk SSD (0.2 DWPD) with Direct MFR warranty only.4 pack
#SPEFA1M4A1S
Our Price: $4,599.00
VTrak E5x00 and J5x00 Series Hard Drive Modules with PROMISE Technology Support
1-Pack 10TB 7200-RPM 12Gb SAS Drive Module for VTrak 5000
#X50DVSS3A10
Our Price: $2,399.00
VTrak E5x00 and J5x00 Series Hard Drive Modules with HDD Manufacture Support
10TB SAS qualified E5000 bulk HDD with Direct MFR warranty only.4 pack
#VTX50HD4T10
Our Price: $4,299.00
VTrak E5x00 and J5x00 Series Accessories
SAS Cable SFF-8644 to SFF-8088 - 1 meter
#X50CABXL1
Our Price: $139.00
SAS Cable SFF-8644 to SFF-8088 - 3 meter
#X50CABXL3
Our Price: $189.00
BlackJack SAS to SATA Adapter on SFF Drive Carrier. Single pack
#X50BJCR2U
Our Price: $109.00
