PROMISE VTrak D5300
Unified Storage System

PROMISE VTrak D5300

PROMISE Products
VTrak D5300 Series RAID Dual Controllers
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers with 12x 12TB 7200rpm 12G SAS HDD
Total raw capacity 144TB, NBD PSP included
#D5300XDAGB
Our Price: $37,999.00
Contact us for better pricing!
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers with 12x 14TB 7200rpm 12G SAS HDD
Total raw capacity 168TB, NBD PSP included
#D5300XDAHB
Our Price: $41,999.00
Contact us for better pricing!
VTrak D5300 Series Fibre Channel RAID Dual Controllers
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers with 12x 12TB 7200rpm 12G SAS HDD
Total raw capacity 144TB, NBD PSP included
#D5300FXDAGB
Our Price: $40,999.00
Contact us for better pricing!
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers with 12x 14TB 7200rpm 12G SAS HDD
Total raw capacity 168TB, NBD PSP included
#D5300FXDAHB
Our Price: $43,999.00
Contact us for better pricing!
VTrak D5300 Unified Storage Solutions
Special Promo!VTrak D5300 Bundle Unified Storage Solution with 54TB RAW HDD and 1.4TB SSD Cache (10G SFP+)
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers, Total raw capacity 78TB, NBD PSP included
#D5300XDAFB1
Our Price: $15,999.00
Contact us for better pricing!
Special Promo!VTrak D5300 Bundle Unified Storage Solution with 54TB RAW Capacity with 1.4TB SSD Cache (10G SFP+ & 16G Fibre Channel)
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers, Total raw capacity 78TB, NBD PSP included
#D5300FXSAFB1
Our Price: $16,999.00
Contact us for better pricing!

Click here to jump to more pricing!

Overview:

VTrak D5000 series unified storage systems deliver uncompromising scalability, flexibility, and affordability for the mid-tier while providing simplicity and efficiency for minimizing total cost of ownership. Customers can respond more quickly to changing IT needs with VTrak D5000 series unified storage at an affordable price.

Accelerate Your Business

VTrak D5000 enables data driven business with an integrated combination of high-performance hardware, adaptive storage software, and flexible protocols at an affordable price. The platform is optimized for high bandwidth and low latency which makes it a perfect storage solution for mid-tier IT applications, surveillance, backup, and running multiple mixed workloads.

Accelerate Your Business

Unlock Power of Flash Cache

Flash Cache accelerated VTrak D5000 storage systems deliver impressive performance, boosting throughput and lowering latency. User has option to add Flash Cache for read and write acceleration. PROMISE intelligent data caching automatically promotes hot data to cache in real time, so you get the full benefit of flash performance.

Unlock Power of Flash Cache

All Inclusive Pricing

VTrak D5000 all-inclusive pricing bundles hardware, software, and three years of Next Business Day service at an affordable cost.

All Inclusive Pricing

Configurations To Suit Any Need

VTrak D5000 series comes in four models D5300/20 (2RU), D5600 (3RU), and D5800 (4RU) giving users the flexibility on form factor.

Configurations To Suit Any Need

Features:

Performance & Scalability

  • Scalable up to 15 JBODs or 512 drives
  • NAS
    • 4K IOPs: 42,334
    • Sequential Performance: 3867MB/s reads 3525MB/s writes
  • iSCSI
    • 4K IOPs: 93,018
    • Sequential Performance: 4214MB/s reads 3376MB/s writes
  • Fibre Channel
    • 4K IOPs: 141,285
    • Sequential Performance: 6,507MB/s reads 4360MB/s writes

High Availability & Resiliency

  • Everything redundant for no downtime
  • Active-Active Dual Controller with ALUA support for access flexibility
  • Background data Integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimizes maintenance

Simplify Your Storage Environment

  • Consolidate SAN and/or NAS workload on the same storage solution
  • Concurrent FC & ISCSI connections for SAN as well as NAS protocols

Realize Superior Value

  • Accelerate enterprise applications
  • Reduce latency and speed operations with up to 50% higher performance

Consolidate Infrastructure

  • Massively scale up to 512 drives
  • Flexible 10GbE and optional 8/16G FC, with 6G SAS/SATA1 and 12G SAS interfaces.

Eliminate Downtime

  • Fully redundant design for enterprise
  • Active-Active Dual Controller with ALUA support for access flexibility
  • Upgrade & expand without downtime

Proactive & Predictive Analytics

  • Background data integrity scrub with parity rebuild
  • Predictive Data Migration (PDM) to minimize maintenance

Applications

  • General IT Infrastructure
  • Virtualized Applications
  • High Bandwidth Applications
  • Backup and DR target

Specifications:

VTrak D5300 Specifications
Form Factor 2RU
Drives Capacity 12 (LFF)
Host Connect Interface
  • iSCSI and NAS Storage Sub-System
    D5300xD: Dual HA Controller w/4-port 10GSFP+
    D5300xS: Single Controller w/2-port 10GSFP+

  • FC, iSCSI and NAS Unified Storage Sub-System
    D5300fxD: Dual HA Controller w/4-port 10GSFP+ and 8-port 16Gb FC
    D5300fxS: Single Controller w/2-port 10GSFP+ and 4-port 16Gb FC
Storage Expansion Ports 2 x 12Gb SAS Mini-SAS (SFF-8644) per controller
Management Ports 2 x RJ-45 1Gb Ethernet and 1 x RJ-11 Port per controller
Expansion 48TB~240TB/enclosure3, Online Capacity/Volume Expansion up-to 15 JBOD's,
Max Pools/Volumes 256 volumes per pool, Max 32 pools per System; Max 512 Snapshots / 128 Clones per volume
Data Services
  • Snapshot
  • Thin/Thick Clones 2
  • Thick/Thin Volumes
  • Read/Write Cache
  • Online Capacity Expansion
Advanced Storage Features
  • Asymmetric LUN Unit Access (ALUA)
  • LDAP for central user management
  • Linux Permission, POSIX ACL,NT ACL
  • Advanced Cache Mirroring over PCIe Gen3
  • Microsoft AD, LDAP and OD
NAS Protocol SAN - FC Block with 16Gb FC or 10GbE iSCSI
NAS - SMB/CIFS v2/v3, NFS v3/v4
RAID Levels 0, 1, 5, 6, 10, 50, 60 RAID Stripe Support 64K, 128K, 256K, 512K and 1MB
Hot spares Global or Dedicated
Background Scrub
  • Media Patrol & Redundancy Check
  • Background Synchronization
  • Partial Rebuild
  • Task Scheduler for Background Activities
Proactive/Predictive Features
  • Predictive Data Migration (PDM)
  • Intelligent Bad Sector Remapping
  • NVRAM Error Logging
  • Drive Power Management (MAID)
  • SMART Error Handling and Write Hole Table
Supported OS Windows Server 2008, 2012, 2016, macOS 10.x, RHEL 6.5 to 7.2, SLES 11, 11 SP4, and 12 SP1
Certifications VMware ESXi 6.5 & Citrix Server 7.3
Management Interfaces Web Based management using WEB, CLI, SSH, SNMP
Power Adapter Voltage: 100--240Vac Auto--Ranging
Max Current: 9A @ 100Vac; 4.5A @ 240Vac
Power Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load) Temperature Range, 80Plus Certified PSU
Temperature Operational: 5° to 35°C,
Non-Operational: -40° to 60°C
Humidity Operational: 20% to 80%,
Non--Operational: ~ 95% (Non-Condensing)
Noise Levels & Shock < 60dB, 25C, Operational: 5G, 11 ms Duration, Non-Operational: 30G, 11ms duration
Vibration Operational: 0.2G, 5 to 500Hz (sine wave) ; 0.41G, 3-10-200-500Hz (Random) , Non-Operational: 1G, 5 to 500Hz (sine wave) ; 2.256G, 5-80-350-500Hz (Random)
Safety EMC Class-A: CE, FCC, VCCI, BSMI, RCM
Safety: IEEE CB, cTUVus
Environmental: RoHS2, GreenPC, WEEE
Warranty 3-year full system limited warranty including PROMISE PSP, optional extended warranty
Support 24/7 e-mail and phone support, 24/7 access to PROMISE site-drives, firmware, and compatibility list

1SATA drives require a SAS-SATA adapter,
2Thick Clones supported in SR1.1 or newer,
3Certain regions

Views:

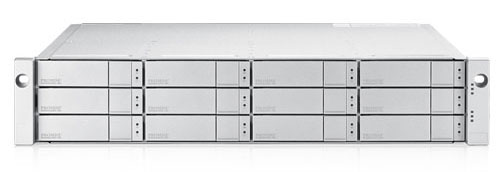

VTrak D5300 Front

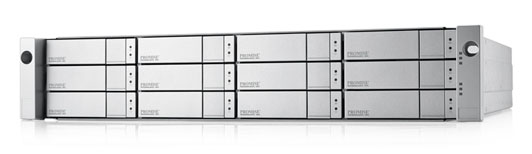

VTrak D5300 Angled

Videos:

Documentation:

Download the PROMISE VTrak D5000 Series Datasheet (PDF).

Pricing Notes:

VTrak D5300 Series RAID Dual Controllers
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers with 12x 12TB 7200rpm 12G SAS HDD
Total raw capacity 144TB, NBD PSP included
#D5300XDAGB
Our Price: $37,999.00
Contact us for better pricing!
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers with 12x 14TB 7200rpm 12G SAS HDD
Total raw capacity 168TB, NBD PSP included
#D5300XDAHB
Our Price: $41,999.00
Contact us for better pricing!
VTrak D5300 Series Fibre Channel RAID Dual Controllers
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers with 12x 12TB 7200rpm 12G SAS HDD
Total raw capacity 144TB, NBD PSP included
#D5300FXDAGB
Our Price: $40,999.00
Contact us for better pricing!
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers with 12x 14TB 7200rpm 12G SAS HDD
Total raw capacity 168TB, NBD PSP included
#D5300FXDAHB
Our Price: $43,999.00
Contact us for better pricing!
VTrak D5300 Unified Storage Solutions
Special Promo!VTrak D5300 Bundle Unified Storage Solution with 54TB RAW HDD and 1.4TB SSD Cache (10G SFP+)
2U/12-Bay 4-port 10GSFP+ RAID subsystem Dual Controllers, Total raw capacity 78TB, NBD PSP included
#D5300XDAFB1
Our Price: $15,999.00
Contact us for better pricing!
Special Promo!VTrak D5300 Bundle Unified Storage Solution with 54TB RAW Capacity with 1.4TB SSD Cache (10G SFP+ & 16G Fibre Channel)
2U/12-Bay 4-port 10GSFP+ and 8-port 16G Fibre Channel RAID subsystem Dual Controllers, Total raw capacity 78TB, NBD PSP included
#D5300FXSAFB1
Our Price: $16,999.00
Contact us for better pricing!
Vtrak Accessories
800W Power Supply unit for E5800/D5800 and E5600/D5600 RAID Subsystems
#X50PSU800
Our Price: $899.00
Contact us for better pricing!
VTrak D5000x controller with 2-port 10GSFP+
#X50CTLX16
Our Price: $5,399.00
Contact us for better pricing!
VTrak D5000fx controller with 2-port 10GSFP+ and 8-port 16G FC
#X50CTLFX16
Our Price: $6,399.00
Contact us for better pricing!
Battery Module for VTrak E5000/D5000
#BBU5000
Our Price: $159.00
Contact us for better pricing!
