PROMISE VTrak A-Class A3800 Series
24 Bay All-in-one Metadata Appliance, RAID Storage Subsystem, and File System


PROMISE VTrak A-Class

PROMISE Products
VTrak A-Class A3800 Series
VTrak A-Class 3800 4U/24-Bay Single Controller RAID Subsystem with 96TB (24x 4TB) 7200-RPM SAS 6G 3.5" HDD
Included 4 Universal Client Licenses, 2 File System Licenses, Next Business Day PSP, Quick Start Guide, Rack Mount Kit..
#VTA3800FSL
Our Price: $42,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 48TB (24x 2TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 5 Mac-only Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA38HFDM6
Our Price: $27,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 96TB (24x 4TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 10 Universal Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA3800FDM
Our Price: $59,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 144TB (24x 6TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 10 Universal Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA38HFDM8
Our Price: $69,999.00

Click here to jump to more pricing!

Overview:

VTrak A-ClassThe VTrak A-Class Shared SAN Filesystem Storage Appliances are the fastest and easiest to deploy as well as the most cost effective solution in the industry. Unlike expensive solutions that require complex multi-vendor interoperability and support, the VTrak A-Class provides a single-vendor solution that is as easy to setup, configure and manage as it is on the pocketbook.

Ideal for multi-user collaboration to ingest, edit, stream and process rich media. This is a true “solution in a box” RAID storage subsystem, with an integrated metadata appliance and embedded file system for big data, along with a NAS Gateway.

VTrak A-Class Appliance

  • All-in-one metadata appliance, RAID storage subsystem, and file system for Big Data.
  • Optimized for high performance, high bandwidth rich media applications requiring large block sequential IOPs.
  • Supports 2-4x more uncompressed HD streams than competing solutions without dropped frames.
  • VTrak A-Class enables a single management GUI for the SAN environment.

Scale out high capacity and high performance

The VTrak A3800 shared SAN appliance is ideal for multi-user collaboration, especially when it comes to rich media. The VTrakFS file system is integrated with metadata controllers and VTrak primary storage in a single box, which enables higher performance and workload productivity, while offering easier workflow management.

NAS Gateway for massive client access

The NAS Gateway enables hundreds of clients in the LAN network to access the highly scalable Fibre Channel SAN appliance via 10Gb Ethernet. While the NAS Gateway contains a file sharing protocol and file system management, the key benefit is the VTrak A3800 SAN can scale to petabytes while still appearing as a single NAS folder interface! This eliminates the need to reconfigure clients, unlike traditional NAS environments where costly, additional storage is required.

Simple and fast: a great combination

VTrak A-Class is optimized for high performance, high bandwidth, rich media applications requiring large block sequential IOPs. And because it's an “all-in-one” metadata appliance, RAID storage subsystem, and file system (VTrakFS), it's much less complicated that competing solutions.

Scalable, reliable and cost-efficient

With A-Class you can “pay as you grow” from 32TB to over 7PB for long-term storage investment protection. Additionally, VTrak x30 is the only Apple-qualified enterprise SAN subsystem, with high-availability dual controllers, hot-swappable modular disk array, and a 3 year warranty. The A-Class can save 30-40% on rack space, and help lower energy costs compared to non-integrated multi-vendor solutions.

Optimized for video-centric environments

The Promise VTrakFS file system is optimized for leveraging a 8Gb FC interface for large file data ingesting, streaming, or processing between a SAN and its clients – unlike traditional NAS file systems. Data is directly transferred between the SAN appliance and clients over the SAN FC network. This means higher bandwidth performance and lower latency data transfers, perfect for Media & Entertainment, HPC applications, and other video-centric environments.

Video storage needs are massive. VTrak is the solution!

Store massive amounts of data required by media-centric and HPC environments. Scale across multiple RAID storage subsystems, thus increasing capacity without sacrificing performance.

  • Supports 1024 RAID Logical Drives to make up the volume(s).
  • JBODs can be added to increase the storage space.
  • RAID heads can be added as Storage Nodes to dynamically increase the storage space as well as increase the number of FC counts, thereby scaling performance.
  • All this can be done online, without interrupting the clients.

Supersized file system for big data

VTrak A-Class virtualizes storage to create a single name space, shared storage volume.

  • Each VTrakFS consists of a Metadata LUN (MDL) and data LUNs (DL)
  • MDL contains information about file location, size, access times, etc.
  • The VTrak A Class head unit manages directing each client the correct file info over 1Gb Ethernet, but each client has full speed access to actual data via 8Gb Fibre Channel

Features and Benefits:

System Highlights

  • Scalable, High Performance & Bandwidth 64-bit SAN File System
    • 8G FC interface
    • Data path over FC
    • Single name space with file system spanning across multiple storage units
  • High Availability
    • Active-Standby SAN FS metadata server
    • Active-Active RAID controller
  • Metadata Journaling
    • POSIX compliance
    • Client support for Windows, Mac and Linux
    • Multiple clients access shared files, best for sharing and collaboration
    • Optional external NAS extension gateway cluster provides legacy NFS and CIFS protocol access to files
    • Online defragmentation
    • Online expansion of data volume
  • Each File system volume can be individually tuned for the usage of the volume
    • Soft and hard quotas and user per missions
    • Local ACL for small user groups (20 users)
    • Integration with AD and LDAP for ACL
    • Client node ACL
    • Multipath support on clients
    • Provides intelligent fault detection and notification tool on clients

All in one

  • “Pay as you grow” from 32TB to over 7PB for long-term storage investment protection.
  • One hardware platform. “Scale up” by adding 9 JBODs. VTrakFS lets you “scale out” by adding additional VTrak x30 storage nodes (one node = 1 VTrak x30 RAID head + 9 VTrak x30 JBODs) – increasing both capacity and performance via auto-load balancing and providing a single global namespace as capacities continue to grow.
  • One management GUI. VTrak A-Class with NAS Gateway allows for easier management of all the components of the hardware platform and the VTrakFS file system.
  • One firmware to update.
  • One cost-effective price.
  • One place of support.

Benefits

  • Fast - Optimized for high performance, high bandwidth rich media applications and unstructured data requiring large block random or sequential throughput.
  • Simple - “All-in-one” metadata appliance, RAID storage subsystem, and file system (VTrakFS).
  • Scalable - “Pay as you grow” from 32TB to over 7PB for long-term storage investment protection.
  • Reliable - Features the same hardware, software, and firmware platform as the Apple-qualified VTrak x30 Series subsystem, with high-availability dual controllers, hot-swappable modular design, and included 3-Year onsite parts replacement warranty.
  • Cost-Efficient - 30-40% rack space and energy savings compared to non-integrated, multi-vendor solutions.

Deployment:

End to End Rich Media Solution

End to End Rich Media Solution

Specifications:


System Models VTrak A3800fSL VTrak A3800fDM
System and Controller Features
Form Factor 4U 4U
# of Controllers Single Controller Dual Controller
Universal Clients 4 Universal Clients 10 Universal Clients
Drive Support 24x 4TB 7,200-RPM SAS Drives 24x 4TB 7,200-RPM SAS Drives
System architecture
  • Integrated VTrakFS clustered filesystem
  • Support up to 8 simultaneous filesystems per system
  • Serve up to 1 Billion files
Capacity support Scale seamlessly up to petabytes in a single filesystem
Expansion capability Flexible, non-disruptive expansion options for A-Class using VTrak x30 Expansion Chassis or VTrak x30 Fibre Channel RAID Storage Systems
High availability
  • Redundant Controllers
  • Hot-swappable controllers
  • Hot-swappable disk drives
  • Hot-swappable power supply units
  • Non-disruptive firmware and software updates
Network interface Quad 8G Fibre Channel ports per controller (8 total ports for high availability systems)
RAID support RAID 0, 1, 5, 6, 10, 50, 60
Directory Services
  • LDAP
  • Active Directory
  • Open Directory
NAS Support NAS 1/10G Ethernet Cluster gateway appliance supporting NFS, and CIFS with unlimited client support (optional)*
GreenRAID Features Four levels of advanced power management disk drive (MAID) support
Efficient 80Plus Certified power supplies
Defragmentation Advanced online defragmentation tools
Management Interfaces
  • Embedded management using VTrak A-Class SAN management software (via Ethernet)
  • Advanced Command Line Interface (Serial Port or Ethernet via telnet and SSH)
  • Third Party Management Support via SNMP, CIM
Operating Systems Support Windows, Linux, Mac OS X
Environmental
Voltage 100-240 Vac Auto-Ranging
Current (Maximum) 10 A @ 100 VAC; 5 A @ 200 VAC
Power Conversion Efficiency >80% @ 110V (>20% load), >80% @ 240V (>20% load)
Temperature Range Operational: 5° to 35°C
Non-Operational: -40° to 60°C
Humidity Operational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels 55 dB (Typical)
65 dB (Maximum)
Shock Operational: 5G, 11 ms duration
Non-Operational: 10G, 11ms duration
Vibration Operational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
Safety CE, FCC Class A, UL/cUL, TUV, BSMI Class A, VCCI Class A, CB, KCC, NOM, GOST-R, IRAM, C-Tick, S-Mark
Environmental Standards RoHS, GreenPC, WEEE
Power Supply Dual 750W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Dimensions (H x W x D) 17.4 x 44.7 x 50.7 cm
6.9 x 17.6 x 19.96 in
Weight 54.2 kg / 119.5 lbs (with drives)
Warranty and Support
Warranty Three year complete system limited warranty with advanced parts replacement; optional extended warranty; onsite parts replacement program - PROMISE Service Plus (optional in some regions)
Support 24/7 e-mail and phone support (English only); 24/7 access to Promise support site-drivers, firmware and compatibility lists
1VTrak A-Class NAS gateway is an optional appliance to be released at a future date.

Views:

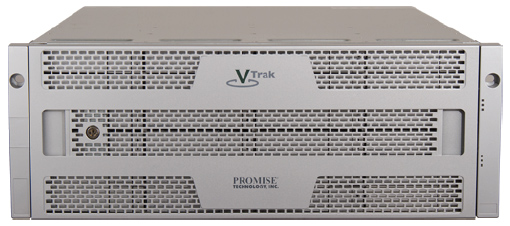

Front View
Front View

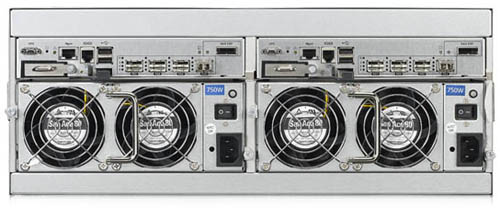

Rear View
Rear View

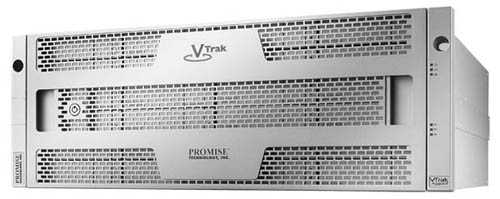

Left Angle View
Left Angle View

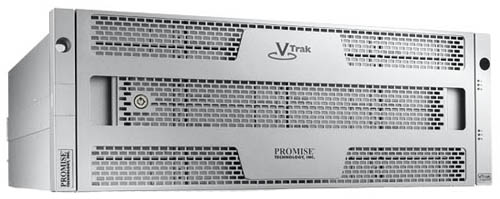

Right Angle View
Right Angle View

Videos:



Documentation:

Download the PROMISE VTrak A-class Series Datasheet (PDF).

Pricing Notes:

VTrak A-Class Series includes: Enclosure w/Drives, 2 Power cords for US, Quick Start Guide, Rack Mount Kit.

VTrak A-Class A3800 Series
VTrak A-Class 3800 4U/24-Bay Single Controller RAID Subsystem with 96TB (24x 4TB) 7200-RPM SAS 6G 3.5" HDD
Included 4 Universal Client Licenses, 2 File System Licenses, Next Business Day PSP, Quick Start Guide, Rack Mount Kit..
#VTA3800FSL
Our Price: $42,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 48TB (24x 2TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 5 Mac-only Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA38HFDM6
Our Price: $27,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 96TB (24x 4TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 10 Universal Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA3800FDM
Our Price: $59,999.00
VTrak A-Class 3800 4U/24-Bay Dual Controller RAID Subsystem equipped with 144TB (24x 6TB) 7200-RPM NL-SAS 6G 3.5" HDD
Included 10 Universal Client Licenses, 4 File System Licenses, Quick Start Guide, Rack Mount Kit.
#VTA38HFDM8
Our Price: $69,999.00
VTrak x30 A-Class Series File System - Software Licenses
VTrak A-Class Series Software. Universal Client License. MacOS/Windows/Linux.
#VTAUNIVCL
Our Price: $999.00
Warranty Service Options
Keep Your Drive Disposal Option (per chassis)
Keep your drive customer drive disposal option (per chassis)Must be purchased within the first year and submit certificate of destruction
#KYHD3Y
Our Price: $1,139.00
ServicePlus Onsite 4-hr Parts Replacement for VTrak Series Subsystems
The PROMISE ServicePlus Plan is an upgrade to VTrak Series subsystems 3-Year limited advance replacement warranty, adding 4-hour onsite hardware parts replacement service for PROMISE manufactured field replaceable units while they are under warranty. Does not include HDDs
#SP3YEAR
Our Price: $999.00
ServicePlus Onsite 4-hr Parts Replacement for VTrak Series Subsystems
The PROMISE ServicePlus Plan is an upgrade to VTrak Series subsystems 3-Year limited advance replacement warranty, adding 4-hour onsite hardware parts replacement service for PROMISE manufactured field replaceable units while they are under warranty. Does not include HDDs
#SP5YEAR
Our Price: $3,280.00
VTrak x30 A-Class Series File System - Accessories
VTrak A-Class 750W PSU and 4U RAID Controller
#VTAKITCTLPSU
Our Price: $9,199.00
A3800 8G Fibre Channel Upgrade Controller for 4U RAID Systems w/MDC HA License Upgrade Kit for Single to Dual Controller Migration
#VTAHAUPGRD
Our Price: $22,000.00
