PROMISE VTrak A-Class NAS Gateway G1100
All-in-one Metadata Appliance, RAID Storage Subsystem, and File System


PROMISE VTrak A-Class NAS Gateway G1100

PROMISE Products
VTrak A-Class NAS Gateway G1100
VTrak A-Class NAS Gateway G1100 1U Storage with 2 ports 10G Base-T Ethernet
#VTG1100US
Our Price: $7,500.00
VTrak A-Class NAS Gateway G1100 1U Storage with 2 ports 10G SFP+ Ethernet
#VTG1100pUS
Our Price: $7,500.00

Click here to jump to more pricing!

Overview:

VTrak A-ClassThe VTrak A-Class Shared SAN Filesystem Storage Appliances are the fastest and easiest to deploy as well as the most cost effective solution in the industry. Unlike expensive solutions that require complex multi-vendor interoperability and support, the VTrak A-Class provides a single-vendor solution that is as easy to setup, configure and manage as it is on the pocketbook.

Ideal for multi-user collaboration to ingest, edit, stream and process rich media. This is a true “solution in a box” RAID storage subsystem, with an integrated metadata appliance and embedded file system for big data, along with a NAS Gateway.

VTrak A-Class NAS Gateway

  • For access to files on the VTrak A-Class via ethernet, the NAS Gateway G1100 is a 1U file server appliance that acts as an access point for file-based storage via 1/10GbE front end, with 8Gb FC backend connectivity to VTrak A-Class SAN.
  • The VTrak shared SAN appliance and NAS Gateway creates a unified storage solution, with redundancy and single VTrakFS management software.

Scale out high capacity and high performance

The VTrak A-Class shared SAN appliance is ideal for multi-user collaboration, especially when it comes to rich media. The VTrakFS file system is integrated with metadata controllers and VTrak primary storage in a single box, which enables higher performance and workload productivity, while offering easier workflow management.

NAS Gateway for massive client access

The NAS Gateway enables hundreds of clients in the LAN network to access the highly scalable Fibre Channel SAN appliance via 10Gb Ethernet. While the NAS Gateway contains a file sharing protocol and file system management, the key benefit is the VTrak A-ClassSAN can scale to petabytes while still appearing as a single NAS folder interface! This eliminates the need to reconfigure clients, unlike traditional NAS environments where costly, additional storage is required.

Simple and fast: a great combination

VTrak A-Class is optimized for high performance, high bandwidth, rich media applications requiring large block sequential IOPs. And because it's an “all-in-one” metadata appliance, RAID storage subsystem, and file system (VTrakFS), it's much less complicated that competing solutions.

Scalable, reliable and cost-efficient

With A-Class you can “pay as you grow” from 32TB to over 7PB for long-term storage investment protection. Additionally, VTrak x30 is the only Apple-qualified enterprise SAN subsystem, with high-availability dual controllers, hot-swappable modular disk array, and a 3 year warranty. The A-Class can save 30-40% on rack space, and help lower energy costs compared to non-integrated multi-vendor solutions.

Optimized for video-centric environments

The Promise VTrakFS file system is optimized for leveraging a 8Gb FC interface for large file data ingesting, streaming, or processing between a SAN and its clients – unlike traditional NAS file systems. Data is directly transferred between the SAN appliance and clients over the SAN FC network. This means higher bandwidth performance and lower latency data transfers, perfect for Media & Entertainment, HPC applications, and other video-centric environments.

Video storage needs are massive. VTrak is the solution!

Store massive amounts of data required by media-centric and HPC environments. Scale across multiple RAID storage subsystems, thus increasing capacity without sacrificing performance.

  • Supports 1024 RAID Logical Drives to make up the volume(s).
  • JBODs can be added to increase the storage space.
  • RAID heads can be added as Storage Nodes to dynamically increase the storage space as well as increase the number of FC counts, thereby scaling performance.
  • All this can be done online, without interrupting the clients.

Supersized file system for big data

VTrak A-Class virtualizes storage to create a single name space, shared storage volume.

  • Each VTrakFS consists of a Metadata LUN (MDL) and data LUNs (DL)
  • MDL contains information about file location, size, access times, etc.
  • The VTrak A Class head unit manages directing each client the correct file info over 1Gb Ethernet, but each client has full speed access to actual data via 8Gb Fibre Channel

Features and Benefits:

System Highlights

  • For access to files on the VTrak A-Class via ethernet, the NAS Gateway G1100 is a 1U file server appliance that acts as an access point for file-based storage via 1/10GbE front end, with 8Gb FC backend connectiv-ity to VTrak A-Class SAN.
  • The VTrak shared SAN appliance and NAS Gateway creates a unified storage solution, with redundancy and single VTrakFS management software.

Benefits

  • Fast - Optimized for high performance, high bandwidth rich media applications and unstructured data requiring large block random or sequential throughput.
  • Simple - “All-in-one” metadata appliance, RAID storage subsystem, and file system (VTrakFS).
  • Scalable - “Pay as you grow” from 32TB to over 7PB for long-term storage investment protection.
  • Reliable - Features the same hardware, software, and firmware platform as the Apple-qualified VTrak x30 Series subsystem, with high-availability dual controllers, hot-swappable modular design, and included 3-Year onsite parts replacement warranty.
  • Cost-Efficient - 30-40% rack space and energy savings compared to non-integrated, multi-vendor solutions.

Deployment:

End to End Rich Media Solution

End to End Rich Media Solution

Specifications:


VTrak A-Class A3600 3U/16 Bay Specifications
Form Factor 1U
Availability NAS Gateway cluster with 2 active nodes per cluster to a max of 2 clusters for high availability and IO load balancing
Interface
  • Two ports x 10GbE, four ports x 1GbE Ethernet ports
  • Two ports x 8Gb FC backend ports
Management Tools/Interface Configured, managed, and monitored with VTrak A-Class SAN management software
Client Licenses 1/10G Ethernet Cluster NAS Gateway Appliance supporting NFS and CIFS with unlimited client support
Warranty
  • Three year complete system limited warranty (Two-year extended warranty optional)
  • Next-Business-Day PROMISE Service PLUS - onsite replacement included in every VTrak purchase
  • Optional 4-hour PSP upgrade
Support
  • 24 x 7 web and phone support
  • Support website - drivers, firmware, knowledge base, and downloadable compatibility reports
  • Online product registration and seamless license activation
Network Protocols NFS, SMB/CIFS
OS Support
  • OS X 10.7 or higher
  • Windows 7, 8, 2008, 2012*
  • Linux OS with Kernel 2.6.14 or higher*

Views:

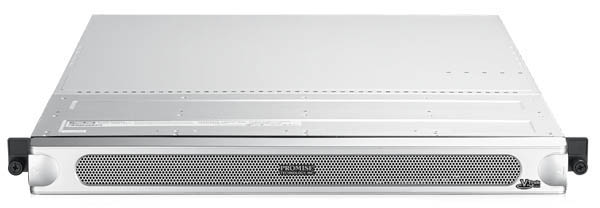

Front View
Front View

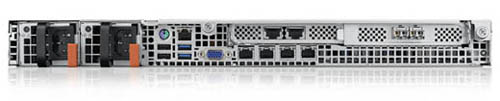

Rear View
Rear View

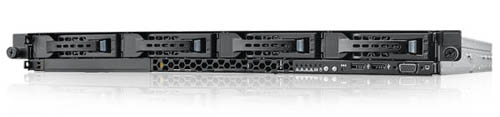

Left Angle Open View
Left Angle Open View

Videos:



Documentation:

Download the PROMISE VTrak A-class Series Datasheet (PDF).

Pricing Notes:

VTrak A-Class Series includes: Enclosure w/Drives, 2 Power cords for US, Quick Start Guide, Rack Mount Kit.

VTrak A-Class NAS Gateway G1100
VTrak A-Class NAS Gateway G1100 1U Storage with 2 ports 10G Base-T Ethernet
#VTG1100US
Our Price: $7,500.00
VTrak A-Class NAS Gateway G1100 1U Storage with 2 ports 10G SFP+ Ethernet
#VTG1100pUS
Our Price: $7,500.00
VTrak x30 A-Class Series File System - Software Licenses
VTrak A-Class Series Software. Universal Client License. MacOS/Windows/Linux.
#VTAUNIVCL
Our Price: $999.00
Warranty Service Options
Keep Your Drive Disposal Option (per chassis)
Keep your drive customer drive disposal option (per chassis)Must be purchased within the first year and submit certificate of destruction
#KYHD3Y
Our Price: $1,139.00
ServicePlus Onsite 4-hr Parts Replacement for VTrak Series Subsystems
The PROMISE ServicePlus Plan is an upgrade to VTrak Series subsystems 3-Year limited advance replacement warranty, adding 4-hour onsite hardware parts replacement service for PROMISE manufactured field replaceable units while they are under warranty. Does not include HDDs
#SP3YEAR
Our Price: $999.00
ServicePlus Onsite 4-hr Parts Replacement for VTrak Series Subsystems
The PROMISE ServicePlus Plan is an upgrade to VTrak Series subsystems 3-Year limited advance replacement warranty, adding 4-hour onsite hardware parts replacement service for PROMISE manufactured field replaceable units while they are under warranty. Does not include HDDs
#SP5YEAR
Our Price: $3,280.00
VTrak x30 A-Class Series File System - Accessories
VTrak A-Class 750W PSU and 4U RAID Controller
#VTAKITCTLPSU
Our Price: $9,199.00
A3800 8G Fibre Channel Upgrade Controller for 4U RAID Systems w/MDC HA License Upgrade Kit for Single to Dual Controller Migration
#VTAHAUPGRD
Our Price: $22,000.00
