Overview:

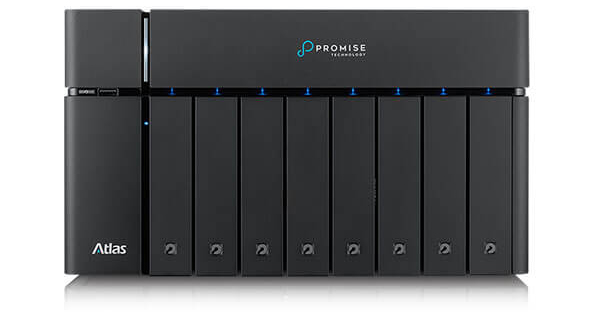

The Promise Atlas is a compact, fully integrated, shared-storage appliance that is perfect for small workgroups. Offering a wide range of capacity choices and a rich feature set, the Atlas is an ideal solution for Rich Media and IT Professionals alike. With eight 7200 RPM drives and a Quad-Core Intel processor, the Atlas S8+ is well equipped to handle multiple clients with demanding workloads over ThunderboltTM 3 or 10GbE, while sustaining other clients over 1GbE. Add your own SSD into the enclosure for even faster response with caching. Promise integrated solutions include an enterprise-class 3-year warranty and optional 24/7 phone and web support.

CREATE, STORE, and SHARE with ease

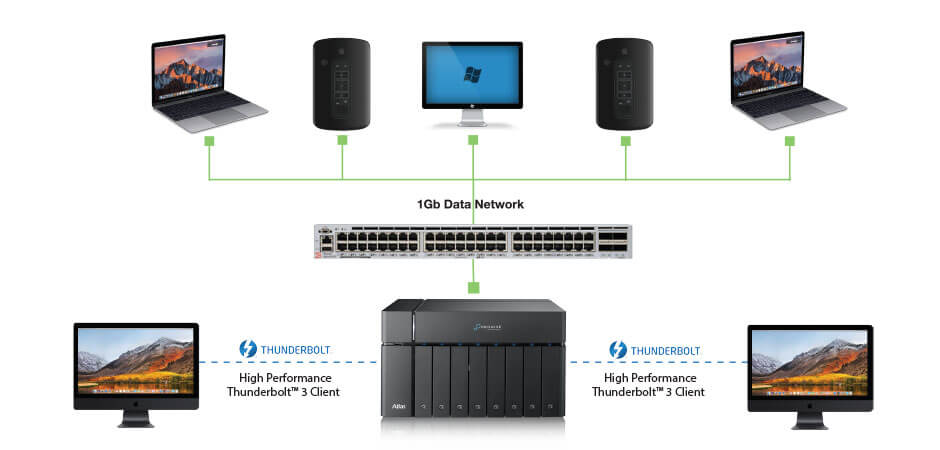

Whether you are a small studio or mid-sized business, you can easily set up the Atlas S8+ and start storing and sharing content quickly with your team. The Thunderbolt™ 3 or 10GbE models give you the flexibility that fits every need, with multiple 1GbE ports available on both for additional clients.

PROMISE Atlas S8+ 10GBaseT Series

Bandwidth to handle the most demanding workloads

With eight 7200 RPM drives and a Quad-Core Intel processor, the Atlas S8+ is well equipped to handle multiple clients with demanding workloads over Thunderbolt™ 3 or 10GbE, while sustaining other clients over 1GbE. Add your own SSD into the enclosure for even faster response with included flash cache feature.

PROMISE Atlas S8+ 10GBaseT Series

Enterprise-Class Features

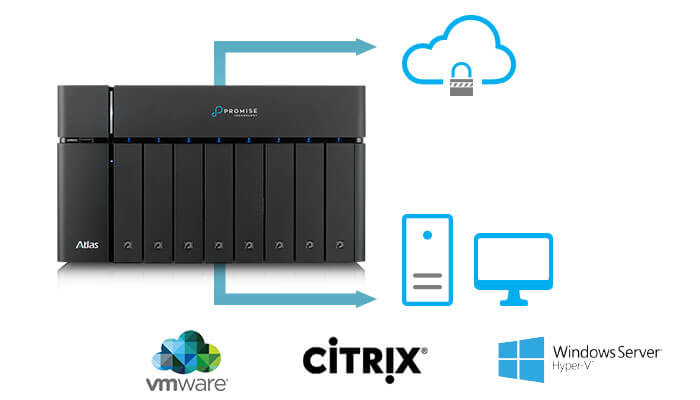

Atlas S8+ leverages an Enterprise-class NAS operating system with advanced Data Services behind a simple-to-use interface. Complete Backup solutions included for local and Cloud Enhanced Encryption to secure your data. Virtualization ready and certified for VMWare, Citrix and Hyper-V.

PROMISE Atlas S8+ 10GBaseT Series

A Range of Capacities to Suit Any Need - Fully Integrated and Warranted

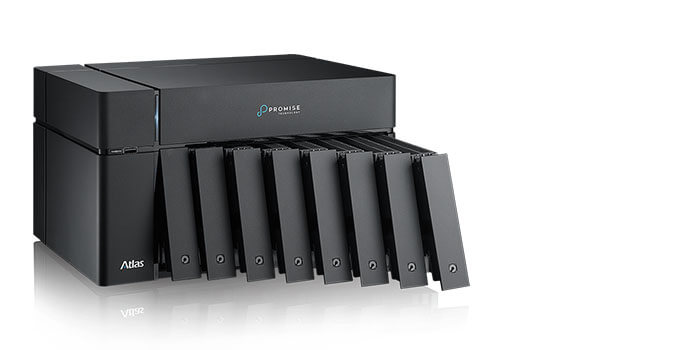

Atlas S8+ models come fully tested and integrated with drives, with models offering 32, 64, and 80TB raw capacities. Additional configurations will soon be available as Built to Order, with up to a massive 112TB on your desktop.

PROMISE Atlas S8+ 10GBaseT Series

Features and Benefits:

  • Fully integrated, ready to use NAS appliance, 8 7200 rpm HDDs, fully integrated and tested, a choice of capacities.
  • Comes with Quad 1Gbit ports and Dual 10Gbit Ethernet based connectivity.
  • Ideal for Rich Media and IT Professionals that are in need of
  • Enhanced encryption to secure data
  • Simple, intuitive setup and management
  • Local and Cloud Backup solution

Benefits

  • Store, share, and collaborate with your team
  • High performance for video and IT needs
  • Massive capacity using 14TB 7200 rpm SATA HDDs
  • Feature-rich data services and embedded software
  • Enterprise-class 3-year warranty and optional 24/7 phone and web support

Highlights

  • Shared storage over Thunderbolt™ 3 or 10GbE, and 1GbE
  • 8 drives in a compact desktop system-up to a massive 112TB*
  • Optional SSD module for caching
  • Enterprise-class NAS Operating System and advanced data protection
  • Virtualization Ready- VMware, Citrix and Hyper-V certified
  • Enterprise-level Data services Enhanced data protection and security features
  • Complete backup solution

Specifications:

Interfaces & ports 2 x 10Gb/s Ethernet
4 x 1Gb Ethernet
5 x USB3.0
1 x HDMI
CPU Intel® Core™ i5 2.7GHz Quad-Core (maximum 3.3GHz) Processor
Memory 16GB DDR4 SODIMM, optional upgrades to 32GB
Hard Drives 8 x SATA3 7200 rpm HDDs
SSD Optional SSD module
General WG Backend Storage
  • NAS application server (Gigabit/10GbE NIC)
  • iSCSI storage (Gigabit/10GbE NIC)
  • Direct attached storage with Thunderbolt™ 3 .0
FTP Server
  • Supports data access from remote location via FTP
  • FTP with SSL/ TLS (explicit) mode
  • FXP supported
  • FTP bandwidth control and connection control
  • Passive FTP port range control
Backup Server
  • 3rd party backup software support: Acronis True Image, CA Brightstor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
  • Snapshot replication
  • Time Machine backup server
  • External storage device backup
  • Block-level real time remote replication supports instant, schedule backup management
  • AMirror (Multi-side data synchronization)
  • Cloud backup: Amazon S3
  • Cloud synchronization: Google Drive, Windows
  • OneDrive, Dropbox
NAS Discovery Easy and convenience device discovery utility and web browser applet included
File System ZFS , EXT2 , EXT3 , EXT4 , FAT, NTFS
Supported Operating Systems Windows, Mac OS X, Linux (2.6 or later) and UNIX
Networking
  • VLAN
  • Link aggregation (support 7 bonding modes)
  • Multi-IP settings
  • Gigabit Jumbo Frame
File Server File sharing across Windows/Mac/Linux/UNIX and centralized management
Connection
  • IPv4, IPv6 and DDNS domain name registration
  • Auto port forwarding
Disk Management
  • Single disk, RAID0 , 1 , 5, 6, 10, 50, 60 and JBOD (Linear Disk Volume)
  • Multiple volume and storage pool
  • User defined storage (Generic, Media, Database)
  • Online pool/volume Capacity Expansion
  • Pool/ volume usage threshold notification
  • Self-encrypting drives (SED) pool level protection
  • Pool write cache
  • Scrub pool
  • Convert cloned volume
  • Virtual volume (mount disk from remote iSCSI target)
  • Set free and replace disk
  • HDD S.M.A.R.T.
  • Built-in iSCSI target and initiator service
  • External device management
  • Global and dedicate hot spare disk
  • Zero time RAID creation and quick rebuilding
  • Auto Tiering
  • SSD read/write cache
  • Deduplication (volume and LUN)
  • Snapshot (folder and LUN)
  • Compression (volume and LUN)
  • Thin Provision for LUN
  • SSD Trim
User Management
  • Local / domain user and group management
  • Local / domain application privilege
  • User quota for local and domain user
  • Home folder
  • Windows AD and LDAP
  • Trust domain and support up to 200,000 domain users
  • Advance file ACL
  • Windows ACL
  • Hide shared folder on Windows network
  • Unicode support
  • WORM (Write Once Read Many protection)
  • Folder usage threshold notification
  • Folder quota
System Tool
  • NTP time settings
  • Notification: E-mail alert (SMTP authentication), Syslog, and SNMP
  • System firmware upgrade
  • Backup, restore, reset system settings
  • Import system configuration
  • Antivirus
  • Smart fan
  • IP access control
  • Policy-based unauthorized IP blocking
  • Secure remote login by SSH connection
  • Connection list management
  • USB, SNMP, UPS support
  • Network recycle bin
  • Import SSL certificate
  • Real-time Resource (CPU, Memory, Storage, Disk, Process) / Hardware/ service/ network resource monitor
Power Management
  • HDD hibernation
  • Power schedule
  • Wake on LAN
  • UPS settings
  • Recover from power outage
System Optimization Setting Service binding
Log
  • System log
  • System connection and data transfer log
Utility AFinder, Acronis True Image OEM (Windows backup utility)
Multi Browser Support Internet Explorer, Safari, Firefox, Google Chrome
File Manager
  • File preview
  • Embedded media player
  • Filter capability
  • Mount Cloud Drives Support (Google Drive,
  • OneDrive, Dropbox)
  • Mount ISO image support
  • CIFS, FTP, SFTP and WebDAV client
  • Share link
  • Team folder sharing
  • Publish to Facebook, Twitter, Weibo
  • Media library
  • Media streaming
  • Online document preview and editing
  • Transcoding (online/offline)
  • Compression support
Service
  • File service: CIFS, AFP, NFS, FTP, WebDAV
  • Backup service: Rsync
  • Discover service: Bonjour
Temperature Operating : 5 to 40°C, Non-Operational: -10 to 50°C
Humidity Operating : 20% to 80% (Non-Condensing), Non-Operating : 10% to 90%
Dimensions 177 x 310 x 235 mm (6.9” x 12” x 9.2”)
Warranty Enterprise class warranty, up to 3 years with optional 24/7 phone/web support

Documentation:

Download the PROMISE Atlas Atlas S8+ 10GBaseT Series Datasheet (PDF).
